/ switch : Used for determining the contents of setting.
When this switch is pressed, flashing stops and the contents of setting
are determined.
/ switch : Used for changing the contents of setting.
When this switch is pressed, changeable positions flash on and off.
By pressing the switch, flashing position shifts in the right direction.
switch : Used for changing the contents of the selected display (flashing section).
When this switch is pressed, the contents of the display decrease.
switch : Used for changing the contents of the selected display (flashing section).
When this switch is pressed, the contents of the display increase.
PATTERN SELECTION display : The selected LED lamp lights up in case of
A
reverse stitching LED and
B
overlapped stitching.
REVERSE STITCHING : Rendered effective when reverse stitching pattern is selected.
AT START display “ ” Without reverse stitching display/ “ ” Reverse stitching display/ “ ”
Double reverse stitching display
REVERSE STITCHING : Rendered effective when reverse stitching pattern is selected.
AT END display “ ” Without reverse stitching display/ “ ” Reverse stitching display/ “ ”
Double reverse stitching display
NUMBER OF STITCHES display : Number of stitches of reverse stitching or overlapped stitching is displayed.
AUTOMATIC THREAD : Lights up when the automatic thread trimming by depressing the front
TRIMMING display part of the pedal is selected.
(Lights up when the overlapped stitching is selected.)
THREAD TRIMMING : Lights up when the thread trimming prohibition is selected.
PROHIBITION display Function setting No. 9
ONE-SHOT AUTOMATIC : Lights up when the one-shot automatic stitching is selected.
STITCHING display (Lights up when the overlapped stitching is selected.)
MATERIAL END SENSOR : Lights up when the material end sensor display setting is selected.
display Function setting No. 2
A
B

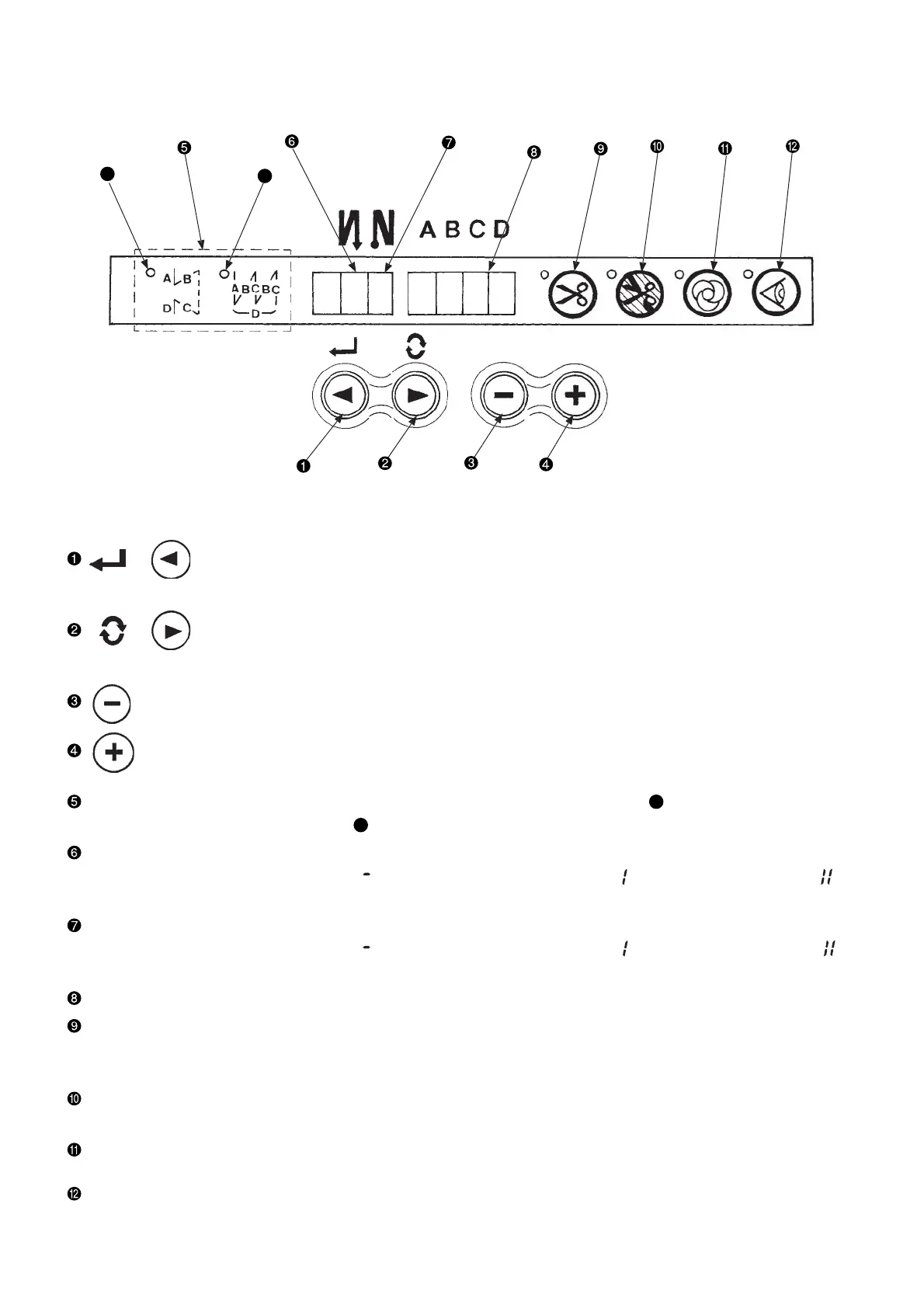

(3) Explanation of the operation panel
