(2) Operating procedure

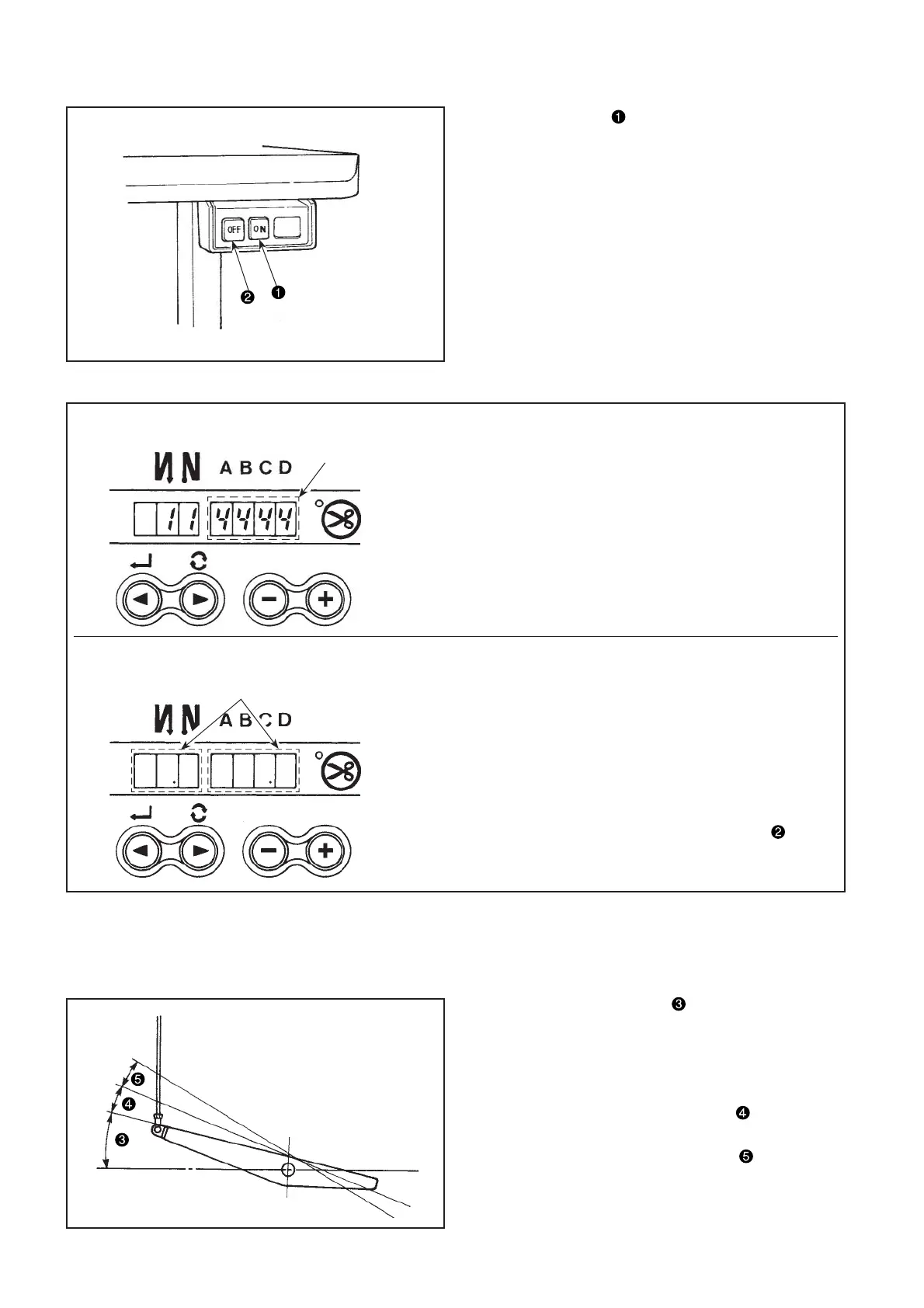

1. Press ON button of the power switch to turn ON
the power.
(Caution) When the power display LED does not
light up even when the power switch is
turned ON, immediately cut OFF the
power and check the voltage. In addition,
re-turn ON the power switch in such a
case when 5 minutes or more have passed
after turning OFF the power switch. (When
overvoltage is entered, the protecting
circuit works and the re-turning ON in the
state that the power is not completely
turned OFF is not accepted.)
Display of Power ON
[When operation panel is not connected]
[When operation panel (CP-170, and IP-110) is not used]
LED of the display of reverse stitching or overlapped stitching
at the front cover of control box lights up. (A)
* According to the head type, a power indicator LED incorpo-
rated in the head is lit up.
* The power display LED that is built in the machine head
lights up according to the machine head.
[When operation panel is connected]
[When operation panel (CP170, and IP-110) is used]
Power lamp of CP170 or IP-110 lights up.
Two dots B of the number indicating window at the front cover
of control box light up.
(Caution) When the buzzer continues sounding immedi-
ately after turning ON the power, the cord may
not be properly connected or power voltage
may be not proper. Press OFF button of the
power switch to turn OFF the power.
2. When the needle bar is not in UP position, it automatically turns to the UP position.
(Caution) When turning ON the power for the first time, there is the case where the timing is slightly retarded
to perform the initialization work. When turning on the power, the needle bar moves. Do not put
your hands or things under the needle.
A
B
3. When depressing front part of the pedal, the sewing
machine rotates at the number of revolutions in
accordance with the depressing amount.
When the pedal is returned to the neutral position,
the sewing machine stops.
4. When lightly depressing back part of the pedal,
the presser goes up. (PFL type only)
5. When strongly depressing back part of the pedal,
thread trimming is performed.
(Caution) For KFL and PFL types, thread trimming
entering point is different from each other.
