– 7 –
(3) Operation of the connection panel

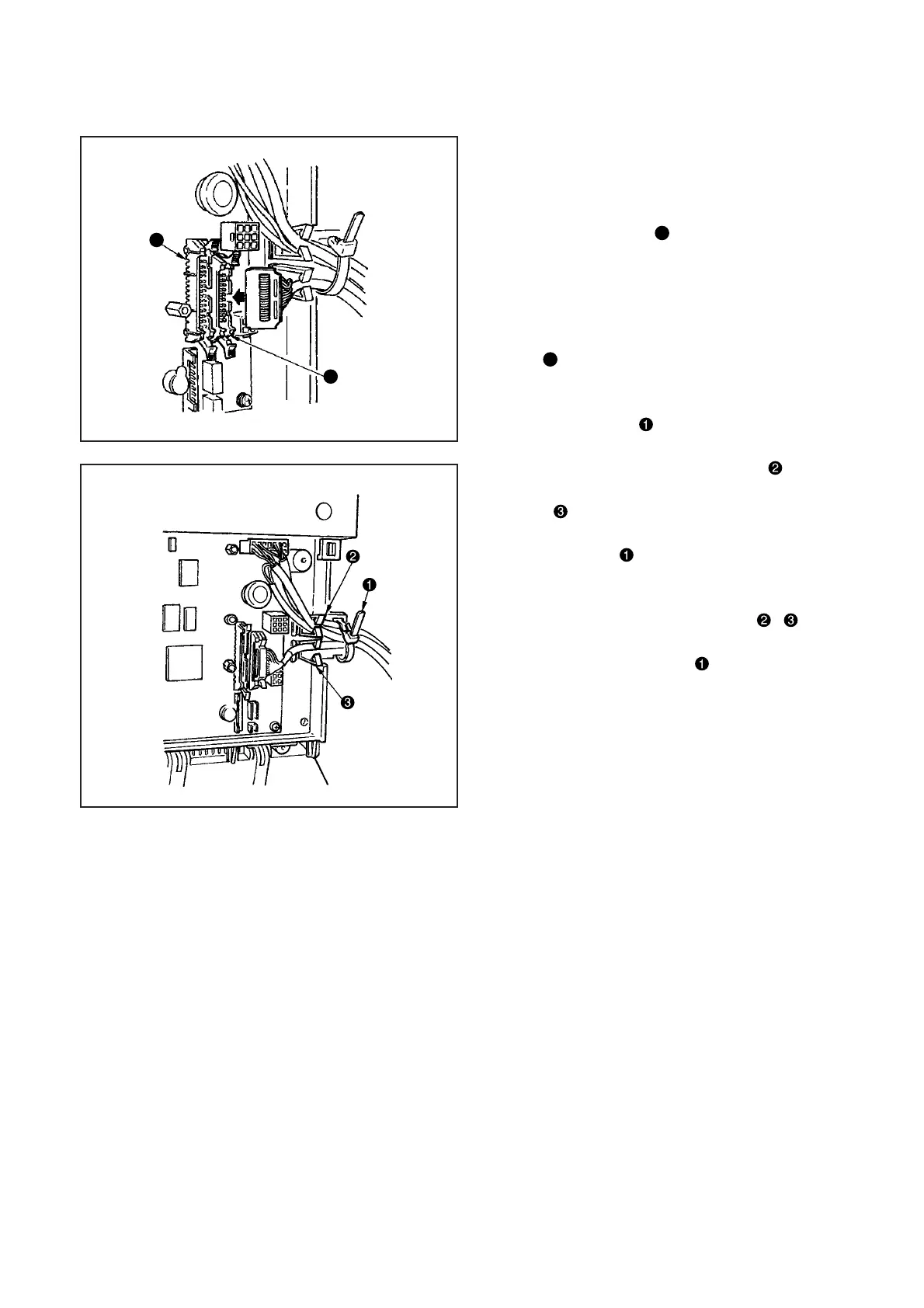

1) Connecting procedure of CP-170 or IP-110
[Connection of the connector for CP panel]
Exclusive connectors are prepared for connection of the
connector for CP-170.
Paying attention to the orientation of the connector, con-
nect it to connector CN35
A
located on the circuit board.
After connecting, securely lock the connector.
[Connecting for IP panel]
The connector for connecting IP-110 is prepared.
When connecting, insert the connector until it is locked
to CN34
B
.
1. After inserting the connector, put all cords together
with cable clip band located on the side of the box.
At this time, bundle the connectors which are arranged
above the wire saddle to wire saddle and those
which are arranged below the wire saddle to wire
saddle .
(Caution) 1. Fix the cord clamp and the cable clip
band following the attaching proce-
dure. (Refer to Instruction Manual)
2. When removing the connector, remove
it from the wire saddle , and re-
move it while pressing the hook of the
cable clip band .
A
B
To Next Page
