(2) List of operation panel of IP-110
Re-sewing switch This switch is used to continue sewing from the step on the way after
replacing bobbin thread when bobbin thread has run out during program
stitching step.
Needle up/down This is the switch to perform needle up/down compensating stitching.
compensating switch (Needle up/down compensating stitching and one stitch compensating
stitching can be changed over with function setting No.22.)
Screen changeover This is the switch to change over the screen.
switch
With/without reverse This is the switch to turn ON/OFF automatic reverse feed stitch at sewing start.
feed stitch at sewing * This switch cannot be used with the sewing machine which is not
start switch provided with automatic reverse feed stitching device.
With/without reverse This is the switch to turn ON/OFF automatic reverse feed stitch at sewing end.
feed stitch at sewing * This switch cannot be used with the sewing machine which is not
end switch provided with automatic reverse feed stitching device.
Reset switch This is the switch to make the value of bobbin thread counter or sewing
counter the set value.

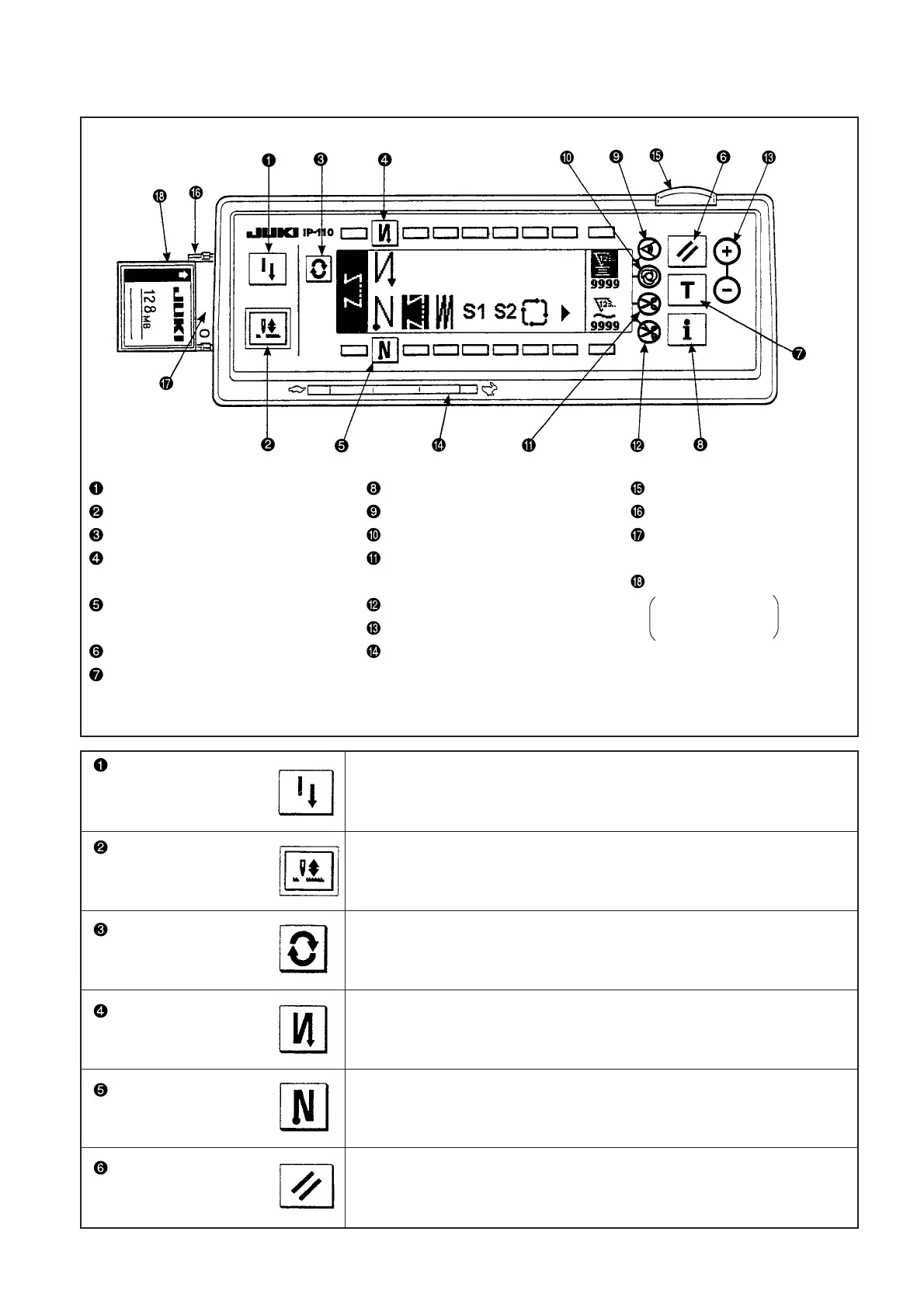

Re-sewing switch Information switch Power display lamp
Needle up/down compensating switch Material edge sensor switch Media slot cover
Screen changeover switch One-shot stitching switch Media slot
With/without reverse feed stitch With/without automatic thread (Media inserting opening)
at sewing start switch trimmer switch
Compact flash (TM)
With/without reverse feed stitch Thread trimming prohibiting switch Optional :
at sewing end switch
Counter value setting switch Part No.40000100
Reset switch Max. speed limitation variable resistor
Teaching switch
* “CompactFlash™ or CFA specification compatible media”.
* “CompactFlash™” is a registered trademark of SanDisk Corporation, U.S.A.
