– 53 –
77
77
7

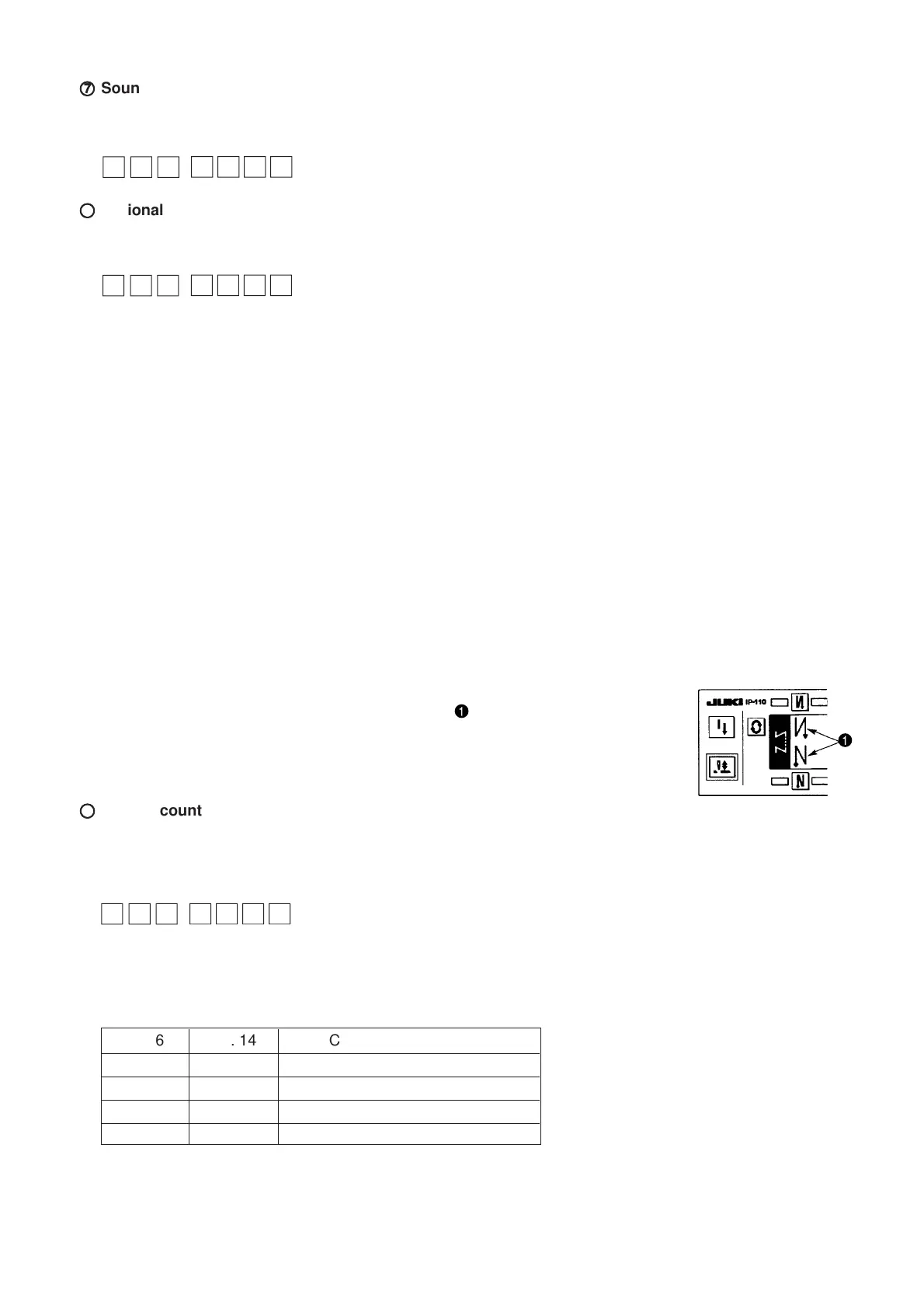

Sound of click of the key switch mounted on the PSC box (Function setting No. 11)
This function selects whether the sound is effective or ineffective when operating the four key switches mounted
on the PSC box.
0 : off The sound of click is ineffective.
1 : on The sound of click is effective.
88
88
8
Optional switch function selection (Function setting No. 12) : It is used only when it is combined with the
machine head provided with the optional switch.
Functions to be assigned to the optional switch can be selected from the following functions.
0 : No function (Standard setting)
1 : Needle up / down compensating stitching : Every time the switch is pressed,
normal feed stitching by half stitch is performed. (Same operation as that of
up / down compensating stitching switch on the panel.)
2 :Back compensating stitching : Reverse feed stitching is performed at low
speed while the switch is kept pressed. (This feature is effective only if a
constant dimension sewing pattern is selected.)
3 : Function of canceling once reverse feed stitching at the end of sewing : By
depressing the back part of the pedal after pressing the switch, operation of
reverse feed stitching is canceled once.
4 : Thread trimming function : This function is actuated as the thread trimming
switch.
5 : Presser foot lifting function : This function is actuated as the foot lifter switch.
6 : One stitch compensating stitching : Every time the switch is pressed, one
stitch stitching operation is executed.
7 : Function of simultaneously canceling reverse feed stitching at the start and end
of sewing : By operating the optional switch, ineffective/effective can be alter-
nately changed over.
8 : Function of neutral presser lifting change-over : By operating the optional
switch, ON/ OFF can be changed over alternately.
(Note) Indication of reverse feed stitching at
the start and end of sewing on the opera-
tion panel is the same even when the func-
tion is canceled. So, be careful.
99
99
9
Sewing counting function (Function setting No. 14)
This function is used to count the number of finished sewing products while counting up is carried out each time
the thread cutter works.
This can be realized together with the IP-110/CP-170 control panel. Refer to the explanation of the control panel.
0 : Sewing counter function is not operative.
1 : Sewing counter function is operative.
(In the case of off setting, the indication on the IP-110 control panel will go out
as well.)
In the CP-170, the counter indicator section is used also as the bobbin thread counter. Therefore, setting is
needed in accordance with the setup table specified below.
No. 6 No. 14 CP-170 counter display
11 Bobbin thread counter
10 Bobbin thred counter
01 Sewing counter
00 No display
