Bird’s nest prevention function (Function setting No. 18 to 20, 28, 65, 66, 89, 100)
This function prevents the thread from being entangled at the sewing start. This function is used only when
it is combined with the sewing machine head with bird’s nest prevention specications.
(When using this function, the optional unit A is necessary.)
1
Bird’s nest prevention function (Function setting No. 18)
1 : Bird’s nest prevention function is effective.
0 : Bird’s nest prevention function is ineffective.
2 : Bird's nest prevention function is effective.
(Thread release is effective.)
Setting of function setting Nos. 19 to 20, 28, 65, 66, 89 and 100 becomes ineffective.
2
Needle thread release function at the sewing start (Function setting No. 19)
0 : Not provided with needle thread release function at the sewing
start (Normal)
1 : Provided with needle thread release function at the sewing start
3
Number of condensation stitches at the sewing start (Function setting No. 20)
Number of condensation stitches at the sewing end can be set.
Setting range
1 to 9 stitches
0 : Condensation function is ineffective.
8
Optional switch function selection (Function setting No. 12) : It is used only when it is combined
with the machine head provided with the optional switch.
Functions to be assigned to the optional switch can be selected from the following functions.
0 : No function (Standard setting)
1 : Needle up / down compensating stitching : Every time the switch is
pressed, normal feed stitching by half stitch is performed. (Same operation
as that of up / down compensating stitching switch on the panel.)
2 : Back compensating stitching : Reverse feed stitching is performed at low
speed while the switch is held pressing. (It is effective only when constant
dimension sewing pattern is selected.)
3 : Function of canceling once reverse feed stitching at the end of sewing :
By depressing the back part of the pedal after pressing the switch, op-
eration of reverse feed stitching is canceled once.
4 : Thread trimming function : This function is actuated as the thread trim-
ming switch.
5 : Presser foot lifting function : This function is actuated as the foot lifter switch.
6 : One stitch compensating stitching : Every time the switch is pressed,
one stitch stitching operation is executed.
7 : Function of simultaneously canceling reverse feed stitching at the start
and end of sewing : By operating the optional switch, ineffective/effec-
tive can be alternately changed over.
8 : Function of neutral presser foot lifting changeover : ON/OFF can be
changed over alternately by operating the optional switch.

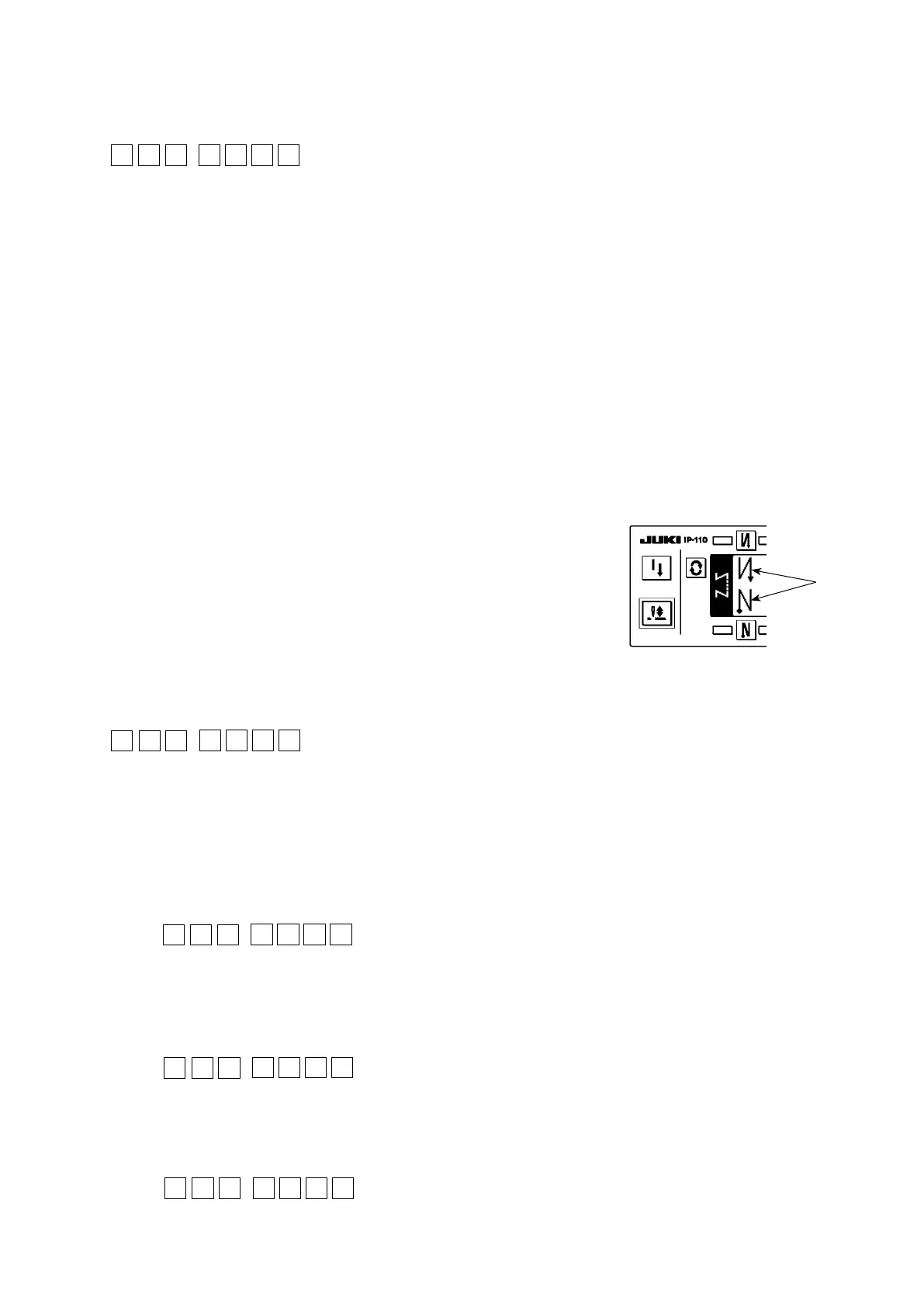

(Note) Indication
1
of reverse feed stitching at the
start and end of sewing on the operation
panel is the same even when the function is
canceled. So, be careful.
1 4
1
1 2
0
1 8
0
1 9
0
2 0
0
1
9
Sewing counting function (Function setting No. 14)
The function counts up every time thread trimming is completed and counts the number of completion of
the sewing process.
This can be realized together with the IP-110 control panel. Refer to the explanation of the control panel.
1 : on Sewing counting function is operative.
0 : off Sewing counting function is inoperative.
(Indication on the IP-110 control panel will go out as well.)
