3 Operating Principle
22
Numerical
measurement
display
(diagram
view)

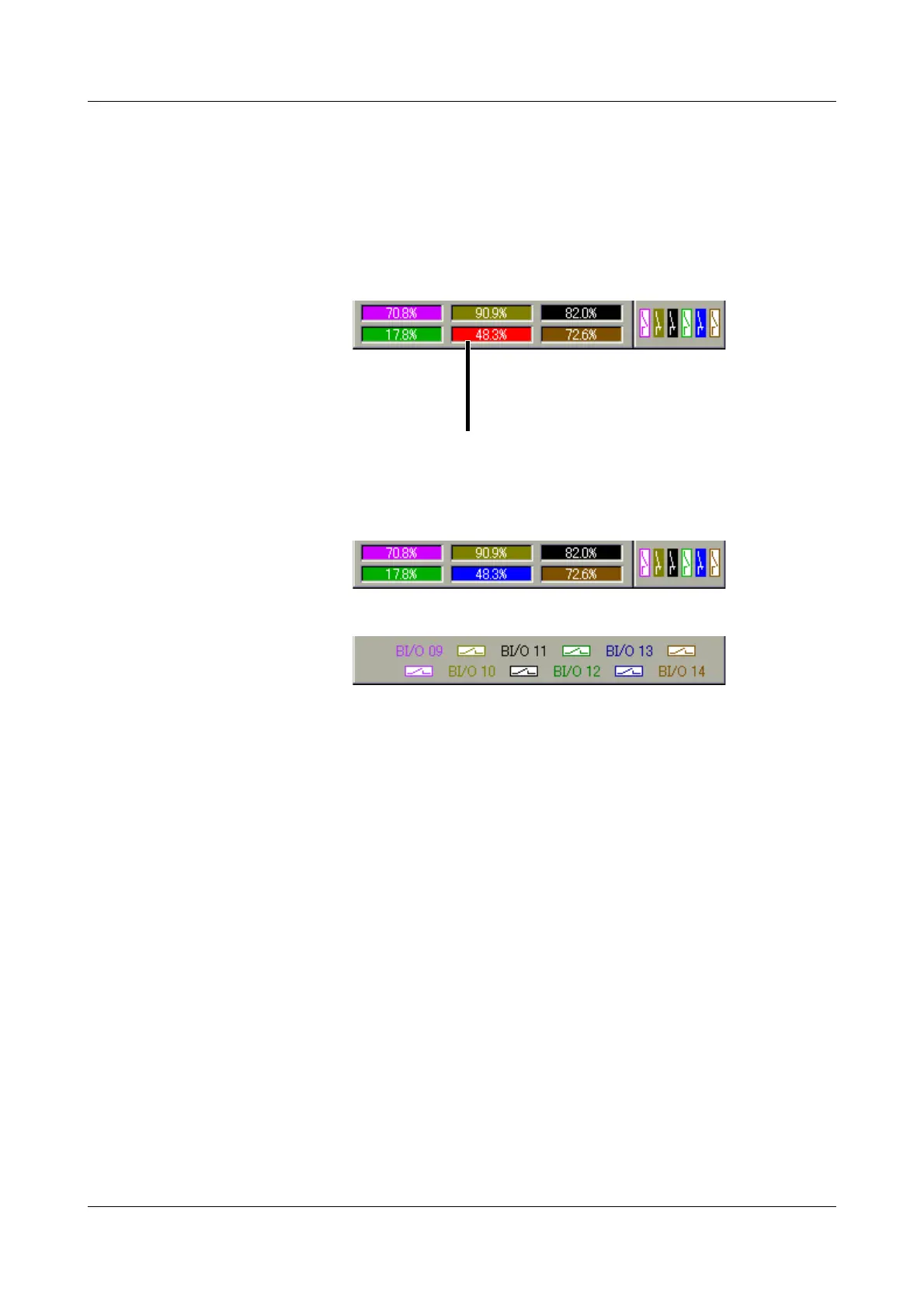

The numerical measurement display is available for the presentation modes:
- Curves,
- history (of the curve presentation) and
- digital diagram
available.
In the curve presentation, the numerical display can be switched on or off.
This switching on or off also applies to the history presentation.
If the numerical measurement display is switched on in the history (of the
curve presentation), you can switch between MIN and MAX display. Whether
or not MIN and MAX values are both available at the same time, depends on
the settings for the group operating mode.
In the binary presentation, the diagram header can be switched on and off.
An alarm for a channel is shown in red
(HIGH alarm) or orange (LOW alarm). The
colors can be configured in the setup
program.
