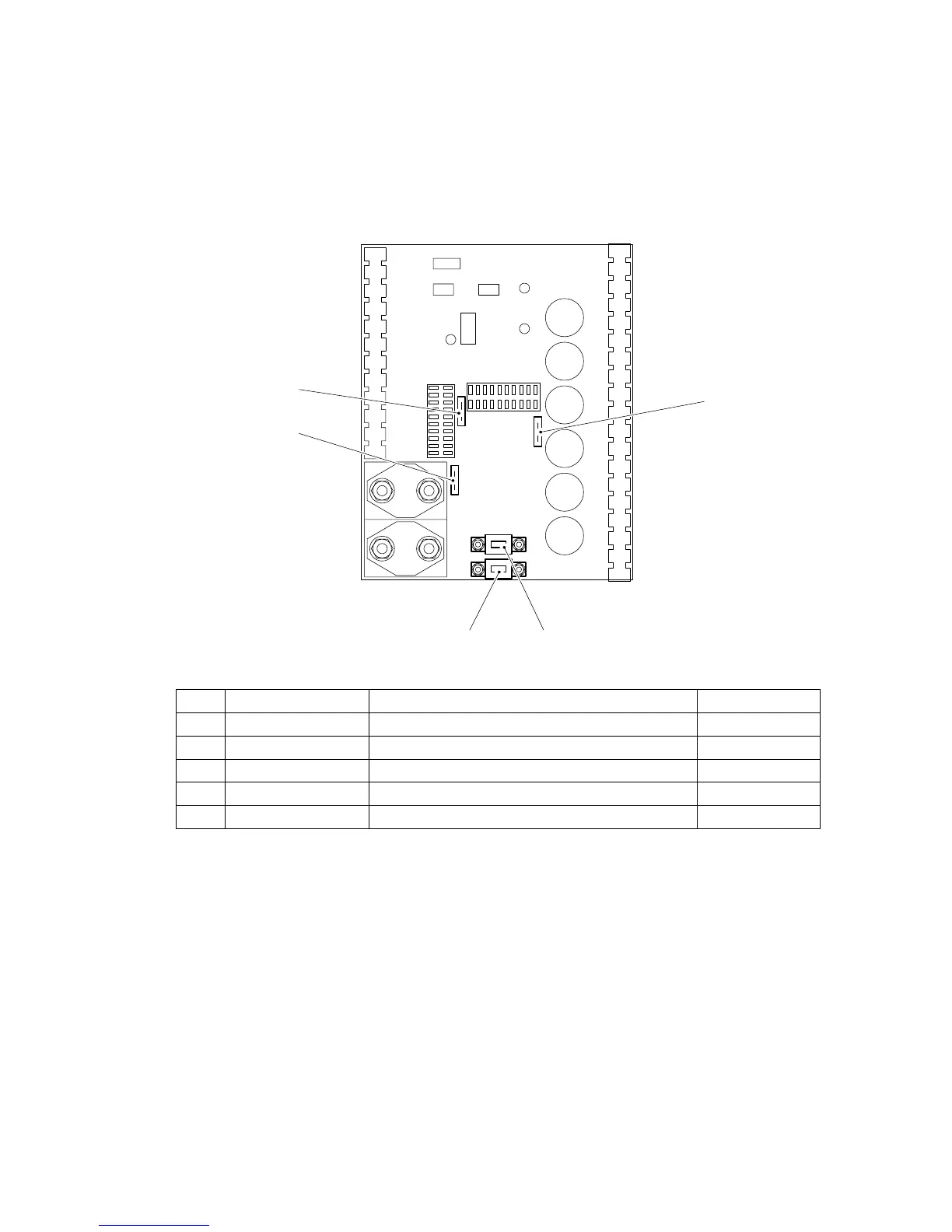

6.7 Checking the electric fuses
– Preparation of the truck for servicing and maintenance operations
(see section 6.1).
– Open the front hood
(see section 6.3).
– Referring to the table, check all fuses for correct rating and replace, where required.
Item Description Protection of: Value
8 F1 Total control fuse 10 A
9 1F1 Drive motor (in parallel to 1F10) 150 A
10 2F1 Pump motor 150 A
11 1F10 Drive motor (in parallel to 1F1) 40 A
12 6F1 Discharge indicator/operating hour meter 10 A
12
11
10 9
8
0999.GB
F 10
6.7 Checking the electric fuses
– Preparation of the truck for servicing and maintenance operations
(see section 6.1).
– Open the front hood
(see section 6.3).
– Referring to the table, check all fuses for correct rating and replace, where required.
Item Description Protection of: Value
8 F1 Total control fuse 10 A
9 1F1 Drive motor (in parallel to 1F10) 150 A
10 2F1 Pump motor 150 A
11 1F10 Drive motor (in parallel to 1F1) 40 A
12 6F1 Discharge indicator/operating hour meter 10 A
12
11
10 9
8
