• Table 9 on page 50 describes the link acvity LED state and descripon on the RJ-45 ports, SFP+
uplink ports, and SFP+/SFP28 Virtual Chassis Ports.

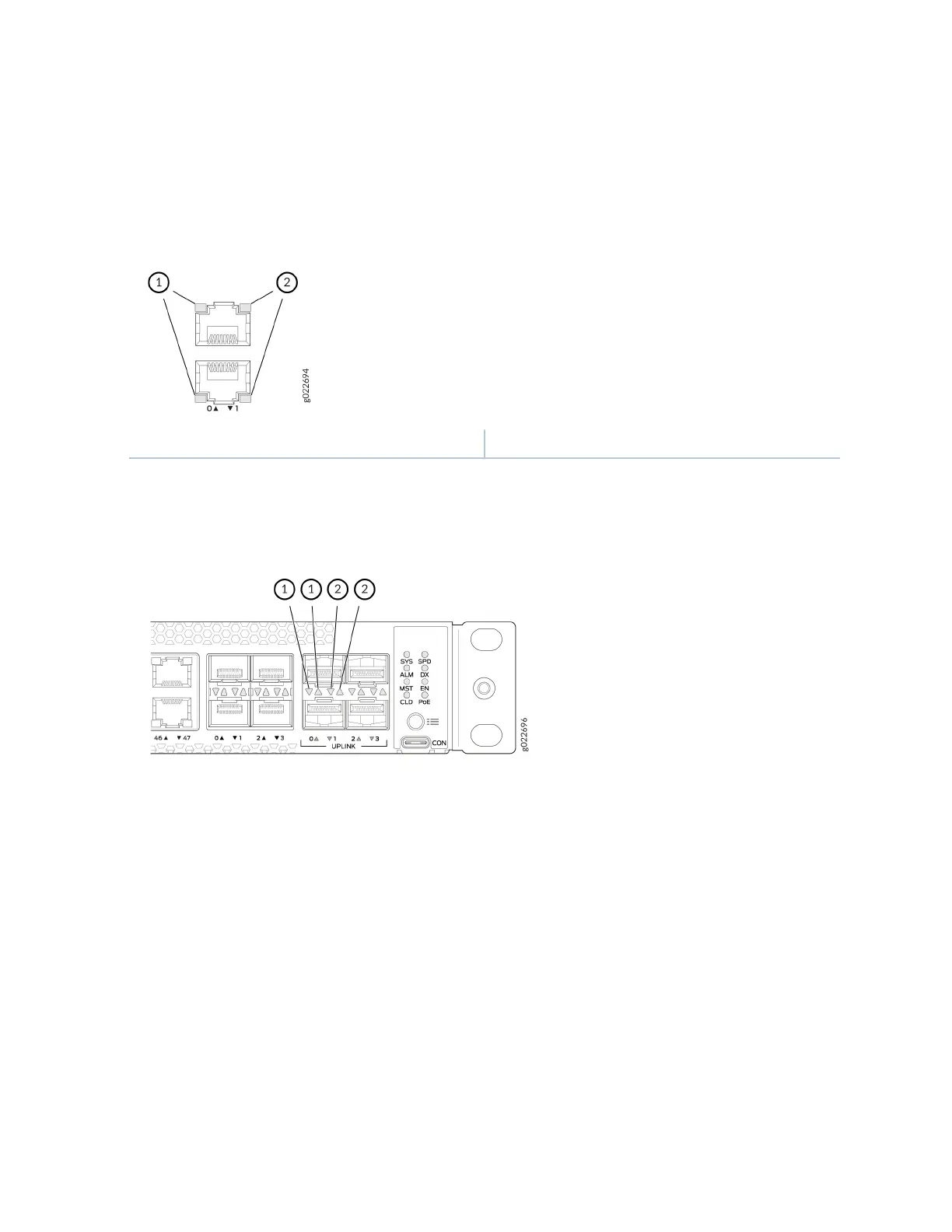

Figure 38: LEDs on the RJ-45 Network Ports on EX4100 and EX4100-F Switches
1—
Link acvity LED
2—
Status LED
Figure 39: LEDs on the SFP+ uplink ports on EX4100 and EX4100-F Switches
