Juniper EX4100

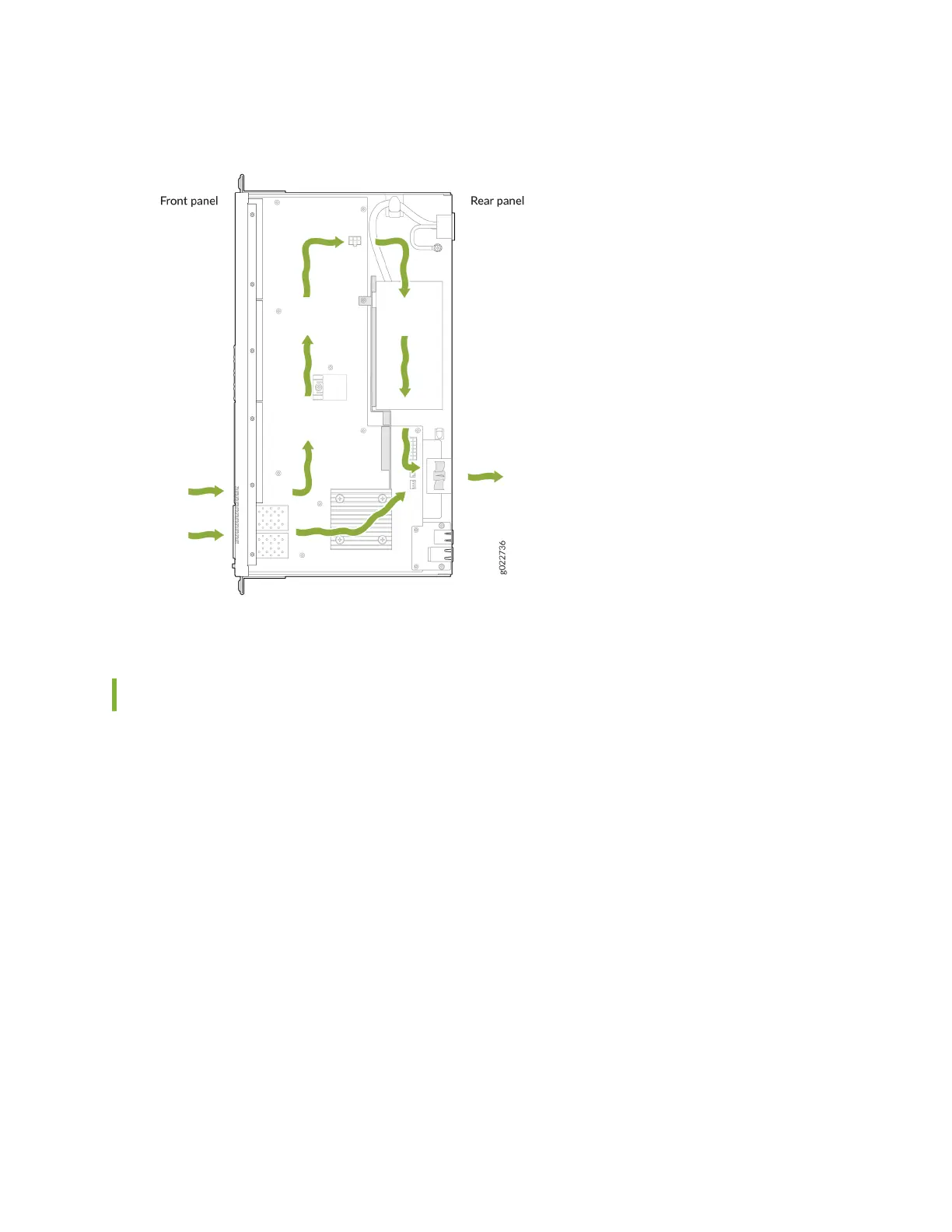

Figure 50: Front-to-Back Airow Through the EX4100-F-48T Switch Chassis
EX4100 Switches with Back-to-Front Airow
In EX4100 switch models with back-to-front airow, air enters through vents on the rear panel to cool
the chassis. Hot air then exits through vents on the front panel (see Figure 51 on page 65).
64
