Juniper EX4200 Series User Manual

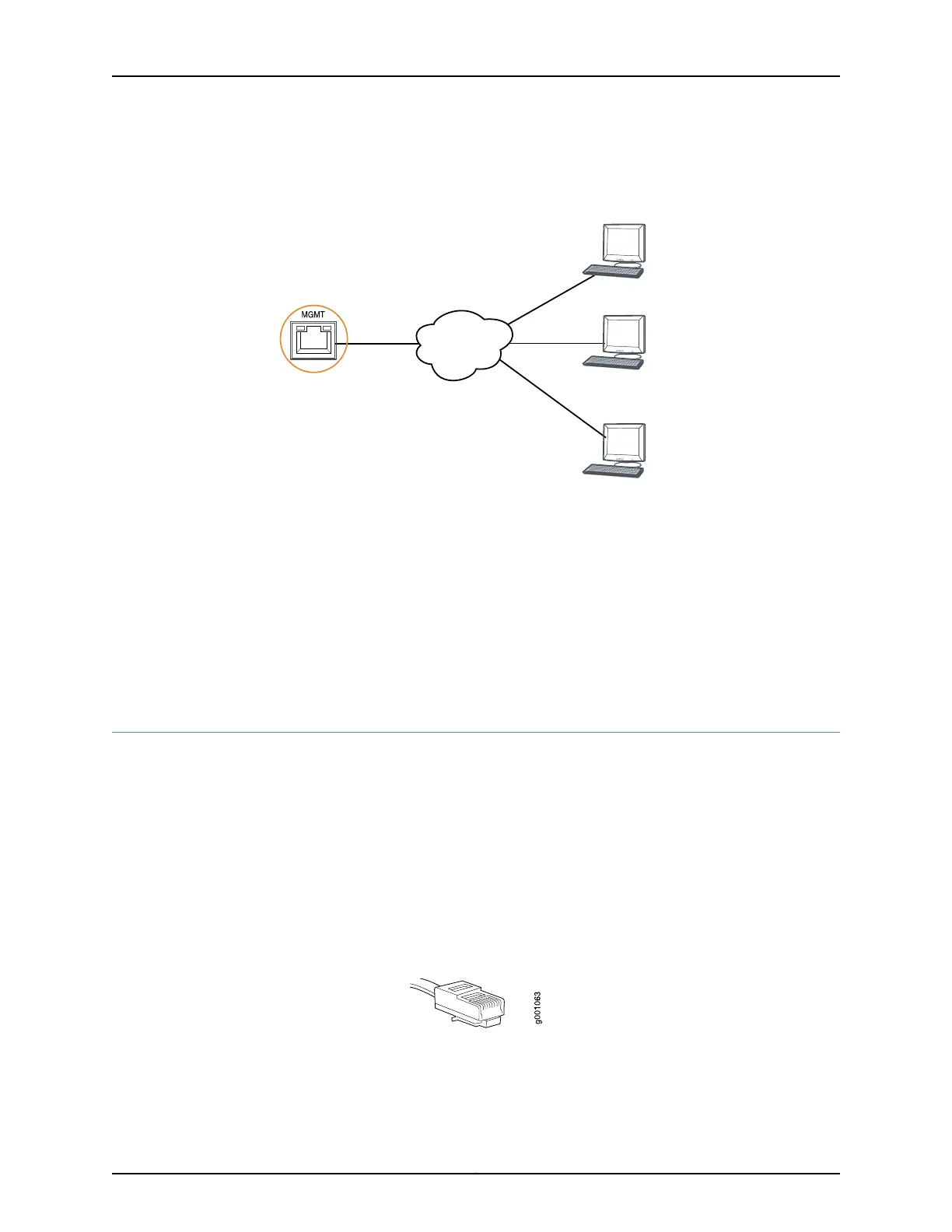

Figure 60: Connecting an EX Series Switch to a Network for Out-of-Band
Management
g020548
Management PC
Management PC
Management PC
To Management port
(on the switch)
Management
network
Related Topics Connecting an EX Series Switch to a Management Console on page 153•
• Management Port Connector Pinout Information for an EX2200 Switch
• Management Port Connector Pinout Information for an EX3200 or EX4200 Switch on
page 42
• Management Port Connector Pinout Information for an EX4500 Switch
• Management Port Connector Pinout Information for an EX8200 Switch
• Cables Connecting the EX8200 Switch to Management Devices
Connecting an EX Series Switch to a Management Console
You can configure and manage an EX Series switch using a dedicated console. Every EX
Series switch has a console port with an RJ-45 connector. Use the console port to connect
the EX Series switch to the management console or to a console server. The console
port accepts a cable with an RJ-45 connector.
Ensure that you have an Ethernet cable with an RJ-45 connector available. An RJ-45
cable and an RJ-45 to DB-9 serial port adapter are supplied with the switch.
Figure 61 on page 153 shows the RJ-45 connector of the Ethernet cable supplied with the
switch.
Figure 61: Ethernet Cable Connector
153Copyright © 2010, Juniper Networks, Inc.
Chapter 11: Connecting the Switch

Juniper EX4200 Series Specifications

General

Switching Capacity	128 Gbps
Ports	24 or 48 10/100/1000BASE-T ports
Virtual Chassis	Up to 10 switches
Layer 3 Routing	Yes
Maximum VLANs	4096
DRAM	1 GB
Flash Memory	1 GB
Humidity	5% to 90% non-condensing
Power Supply	AC or DC options
MAC Address Table Size	32, 000 entries
Operating Temperature	0°C to 45°C
Layer 2 Features	VLAN, STP, RSTP, MSTP, LACP
Management	CLI, Web UI, SNMP
Storage Temperature	-40°C to 70°C
Input Voltage	AC: 100-240V; DC: -48V
