Juniper SRX110 Hardware Guide

Related
Documentation
RJ-45 Connector Pinouts for the SRX110 Services Gateway Ethernet Port on page 136•
• RJ-45 Connector Pinouts for the SRX110 Services Gateway Console Port on page 137
• RJ-11 Connector Pinouts for the SRX110 Services Gateway on page 138
RJ-45 Connector Pinouts for the SRX110 Services Gateway Ethernet Port

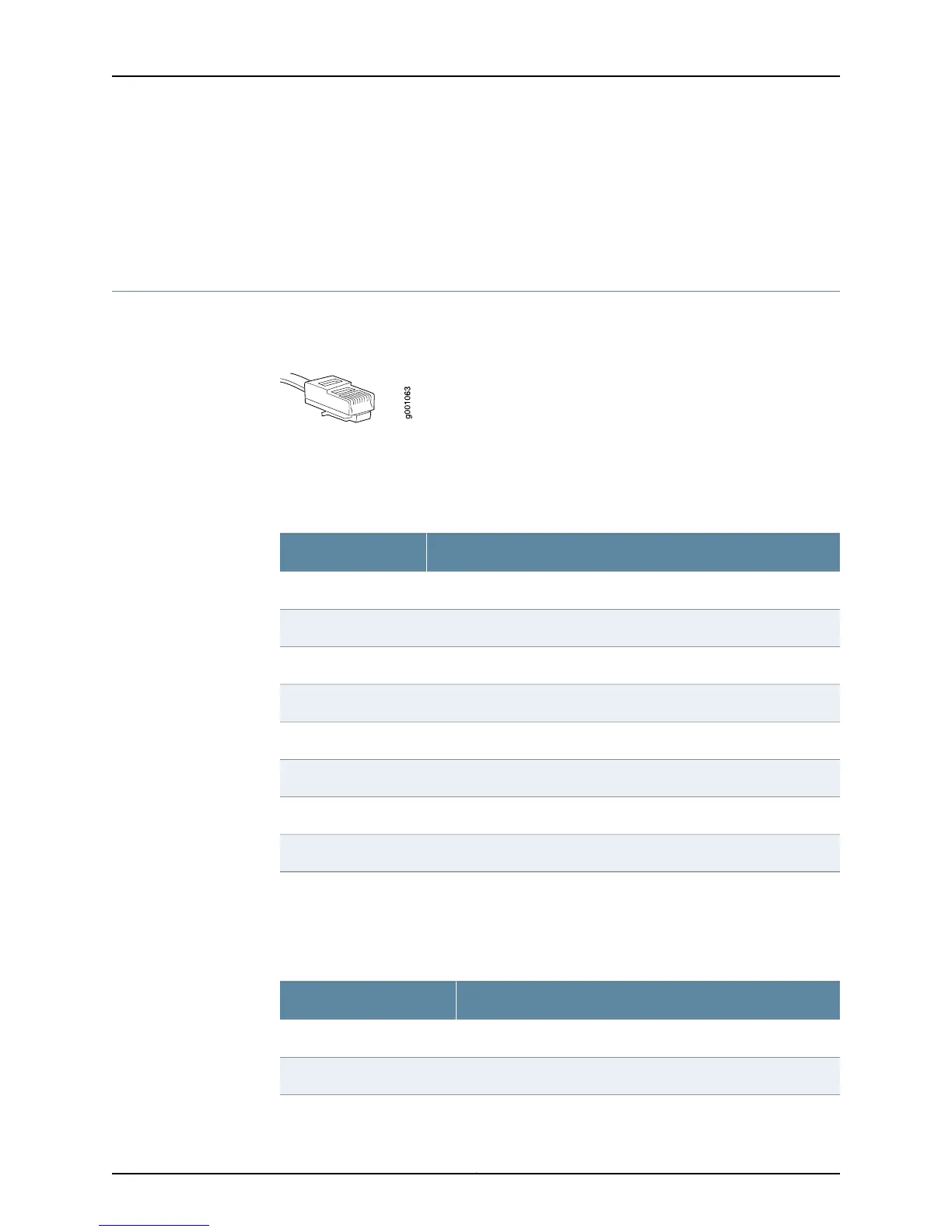

Figure 28 on page 136 shows the RJ-45 cable connector pinouts for Ethernet ports.
Figure 28: Ethernet Cable Connector (RJ-45)
Table 46 on page 136 describes the RJ-45 connector pinouts for the Ethernet port for
10/100 Mbps.
Table 46: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (10/100 Mbps)
SignalPin
TX+1
TX-2
RX+3
Termination network4
Termination network5
RX-6
Termination network7
Termination network8
Table 47 on page 136 describes the RJ-45 connector pinouts for the Ethernet port for 1
Gbps (1000 Mbps).
Table 47: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (1 Gbps)
SignalPin
BI_DA+1
BI_DA-2
Copyright © 2013, Juniper Networks, Inc.136
SRX110 Services Gateway Hardware Guide

Juniper SRX110 Specifications

General

Memory	1 GB
Flash	1 GB
Operating Temperature	32°F to 104°F (0°C to 40°C)
Interfaces	8 x 10/100/1000 Ethernet
Power Supply	AC 100-240V, 50-60 Hz
Humidity	10% to 90% non-condensing
