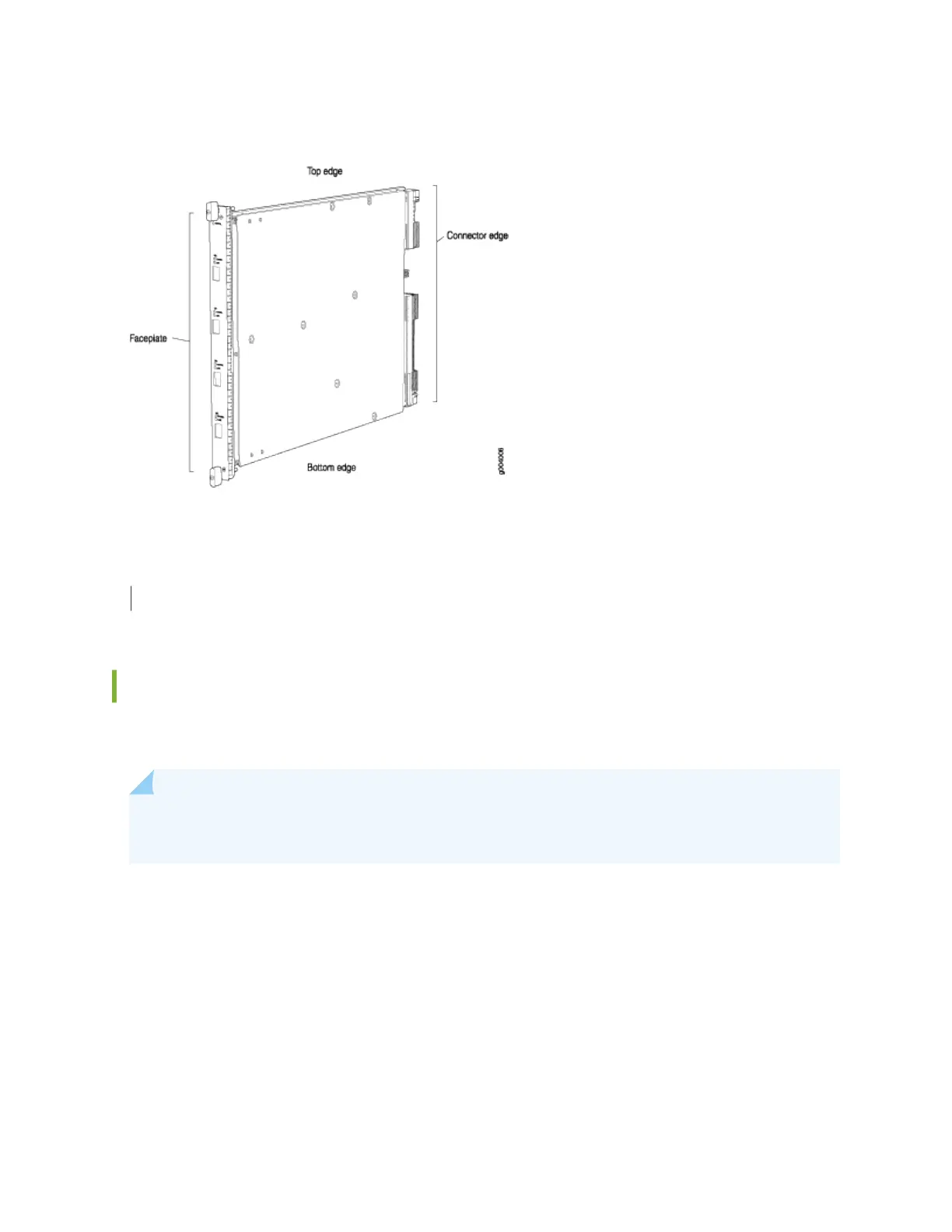

Figure 48: Card Edges
RELATED DOCUMENTATION
Cards Supported on SRX5400, SRX5600, and SRX5800 Firewalls
Handling an SRX5400, SRX5600, or SRX5800 Firewall Card
When carrying a card, you can hold it either vercally or horizontally.
NOTE: A card weighs up to 18.3 lb (8.3 kg). Be prepared to accept the full weight of the card as
you li it.
To hold a card vercally:
1. Orient the card so that the faceplate faces you. To verify orientaon, conrm that the text on the
card is right-side up and the EMI strip is on the right-hand side.
2. Place one hand around the card faceplate about a quarter of the way down from the top edge. To
avoid deforming the EMI shielding strip, do not press hard on it.
3. Place your other hand at the boom edge of the card.
If the card is horizontal before you grasp it, place your le hand around the faceplate and your right
hand along the boom edge.
