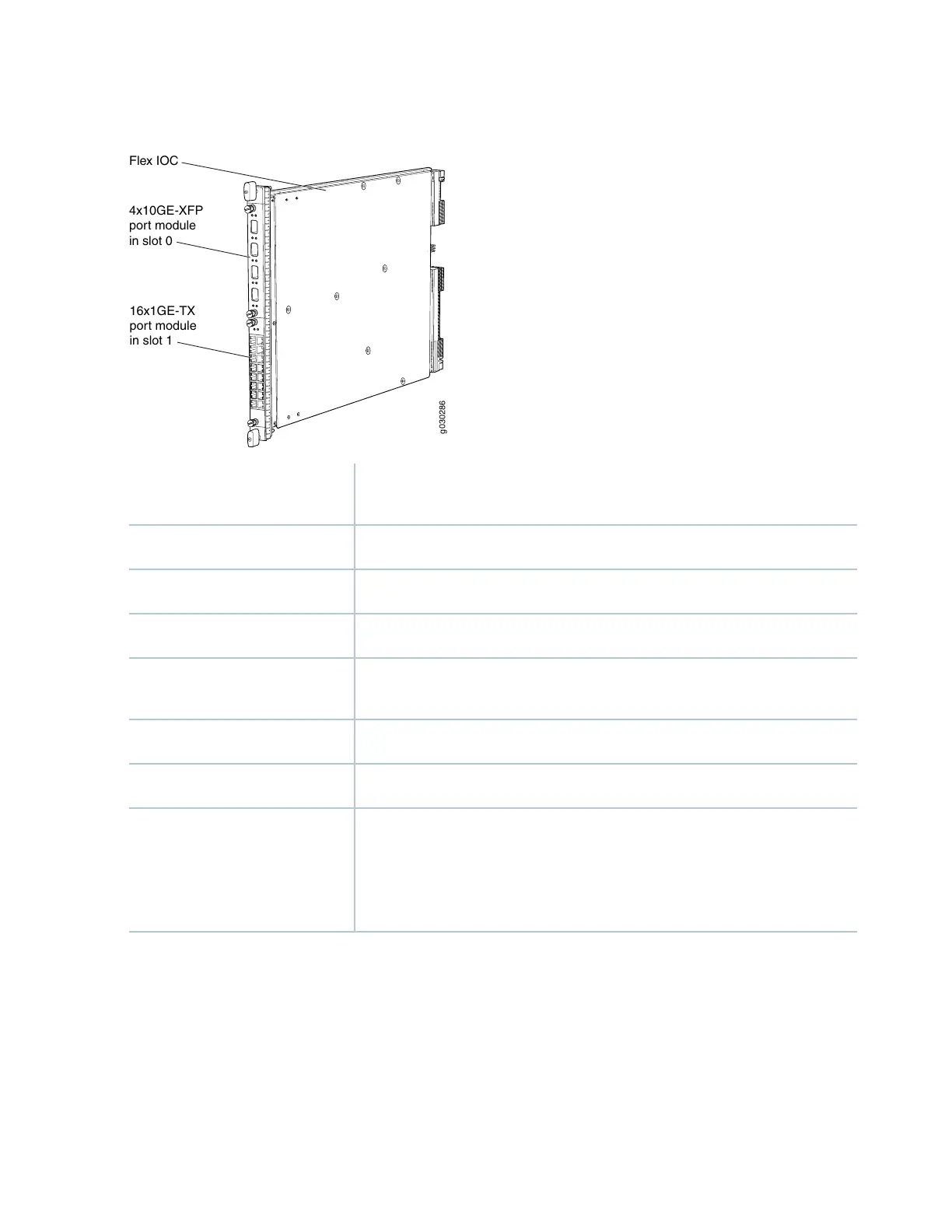

Figure 11: Flex IOC with Typical Port Modules
g030286
Flex IOC
4x10GE-XFP
port module
in slot 0
16x1GE-TX
port module
in slot 1
•
Flex IOC with slots for two port modules
•
Maximum throughput: 10 Gbps (per PFE)
Description
•
Junos OS Release 9.5R1 and laterSoftware release
Slots for two port modulesCables and connectors
NoneControls
•
SRX5600–Any slot except bottom slots 0 or 1
•
SRX5800–Any slot except center slots 0, 1, or 2/6
Supported Slots
312 W typical, 365 W maximum (includes port modules)Power Requirement
Approximately 10 lb (4.5 kg)Weight
OK/FAIL LED, one bicolor:
•
Steady green–The Flex IOC is operating normally.
•
Red–The Flex IOC has failed and is not operating normally.
•
Off–The Flex IOC is powered down.
LEDs
30
