The serial number label is located as shown in Figure 31 on page 57.

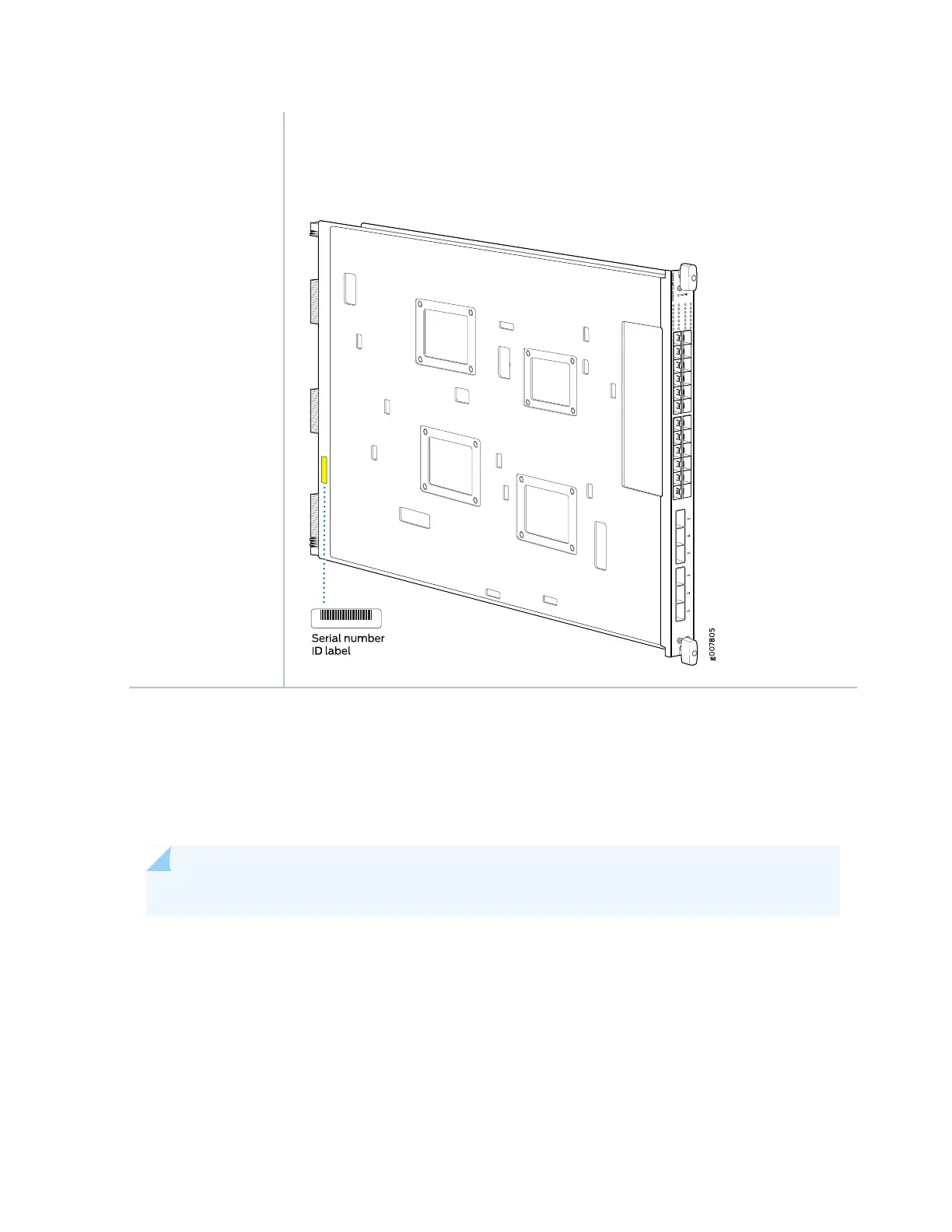

Figure 31: SRX5K-MPC3-40G10G Serial Number Label
Serial Number
Location
SRX5K-MPC3-100G10G Specifications
The SRX5K-MPC3-100G10G (IOC3) is an interface card that provides 100 Gigabit Ethernet and 10 Gigabit
Ethernet interfaces, with a Packet Forwarding Engine that provides a 240 Gbps line rate. This interface
card is supported on SRX5400, SRX5600, and SRX5800 Services Gateways. See Figure 32 on page 58.
NOTE: These cards do not support plug-in Modular Interface Cards (MICs).
All ports on the interface card have dual-color LEDs for reporting link status.
The interface card also supports hot-pluggable optical modules.
57
