2.4 lb (1.1 kg)
Weight

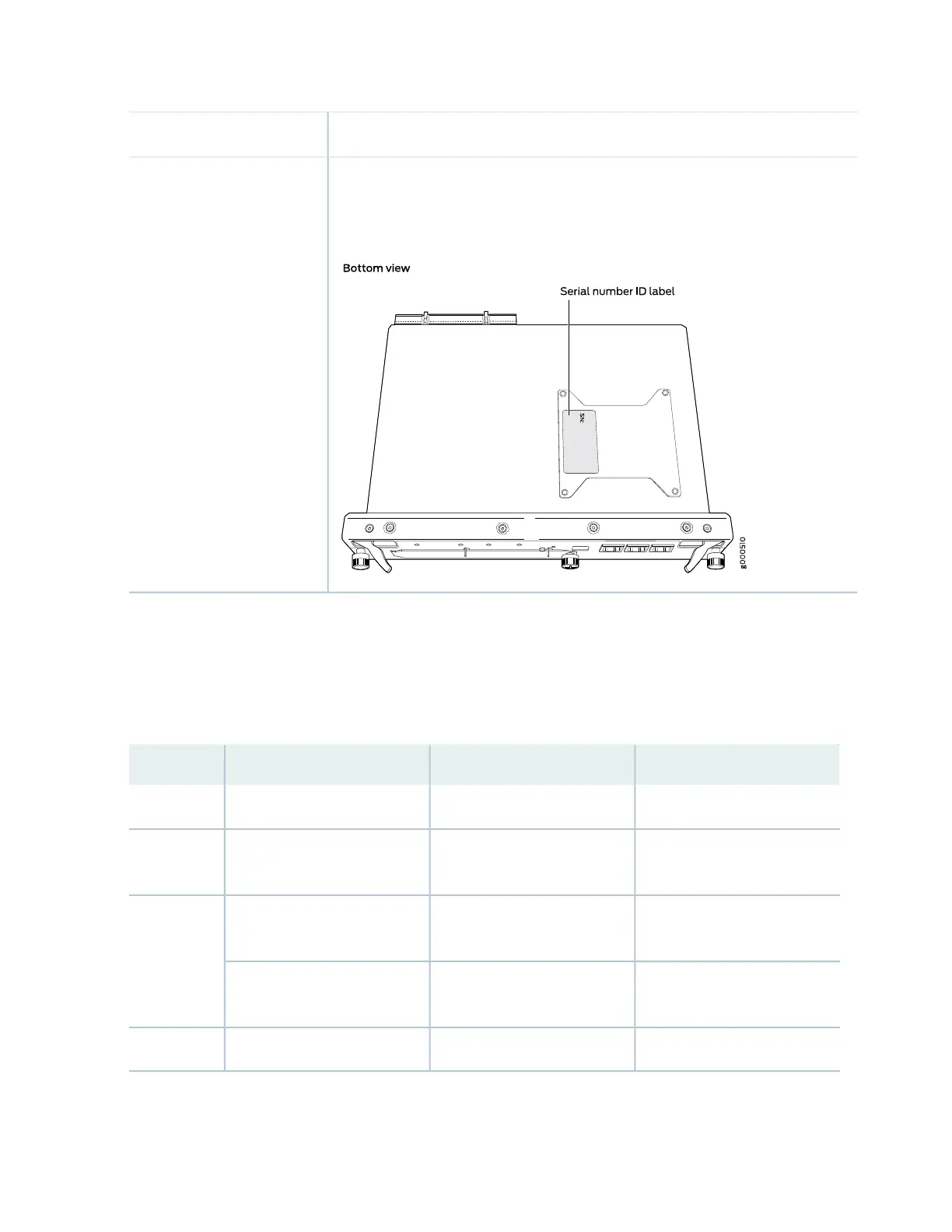

The serial number label is located as shown in Figure 45 on page 82.
Figure 45: SRX5K-RE-1800X4 Serial Number Label
Serial number location
SRX5K-RE-1800X4 LEDs
Each Routing Engine has four LEDs that indicate its status. The LEDs, labeled MASTER, STORAGE, ONLINE,
and OK/FAIL, are located directly on the faceplate of the Routing Engine. Table 7 on page 82 describes
the Routing Engine LEDs and their states.
Table 7: SRX5K-RE-1800X4 LEDs
DescriptionStateColorLabel
Routing Engine is the master.On steadilyBlueMASTER
Indicates activity on the SSD or
CompactFlash card.
BlinkingGreenSTORAGE
Routing Engine is transitioning
online.
BlinkingGreenONLINE
Routing Engine is functioning
normally.
On steadilyNone
Routing Engine has failed.On steadilyRedOK/FAIL
