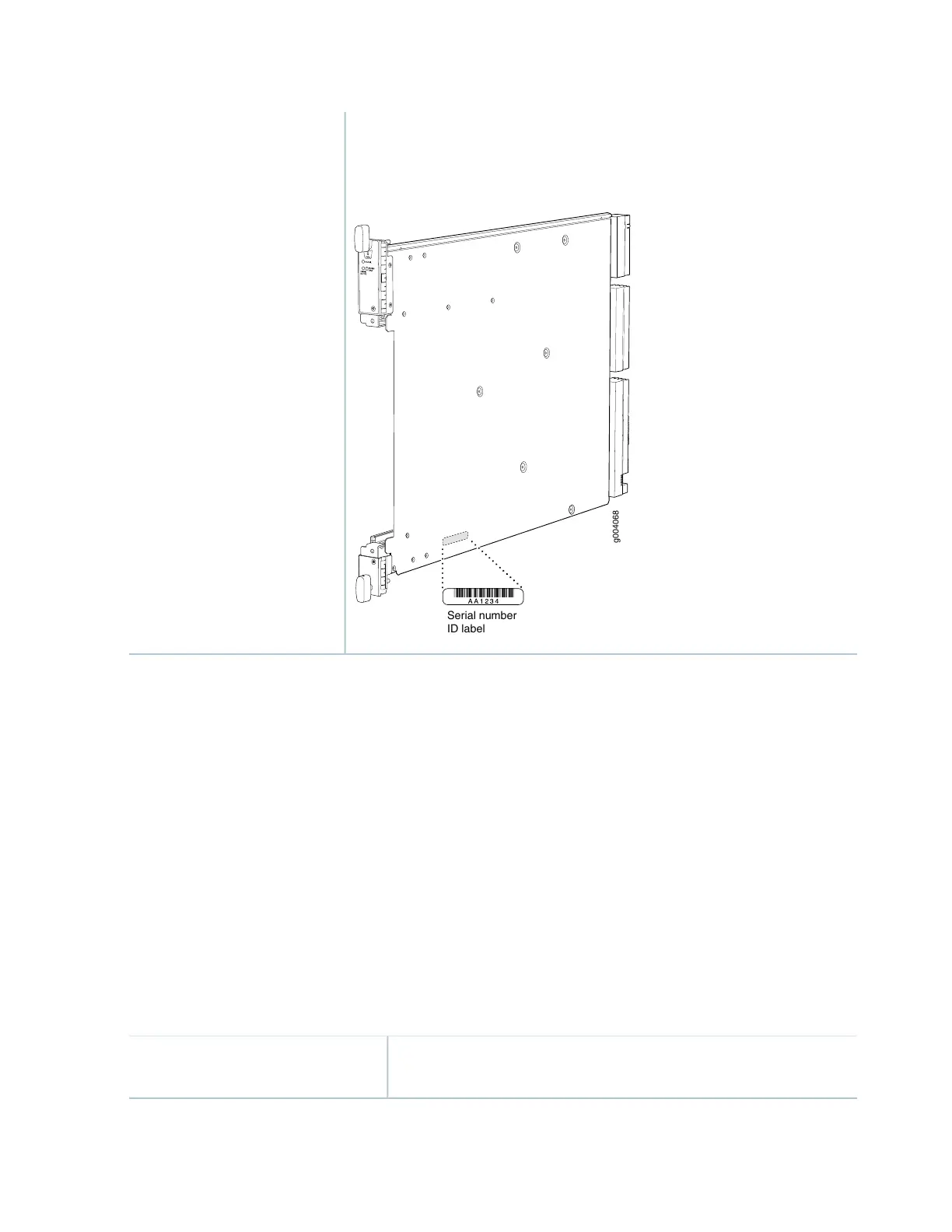

The serial number label is located as shown in Figure 39 on page 70.
Figure 39: SCB Serial Number Label
g004068
Serial number
ID label
Serial Number Location
Switch Control Board SRX5K-SCBE Specifications
Each SRX5K-SCBE consists of the following components:
•
I2C bus logic for low-level communication with each component
•
Component redundancy circuitry
•
Control Board/Routing Engine mastership mechanism
•
Gigabit Ethernet switch that is connected to the embedded CPU complex on all components
•
Switch fabric to provide the switching functions for the MPCs
•
1000BASE-T Ethernet controller to provide a 1-Gbps Ethernet link between the Routing Engines
•
Power circuits for the Routing Engine and the SRX5K-SCBE
•
LEDs—Provides status of the SRX5K-SCBE and clocking interface
•
SRX5K-SCBE with slot for Routing Engine
•
Maximum throughput: 120 Gbps per slot
