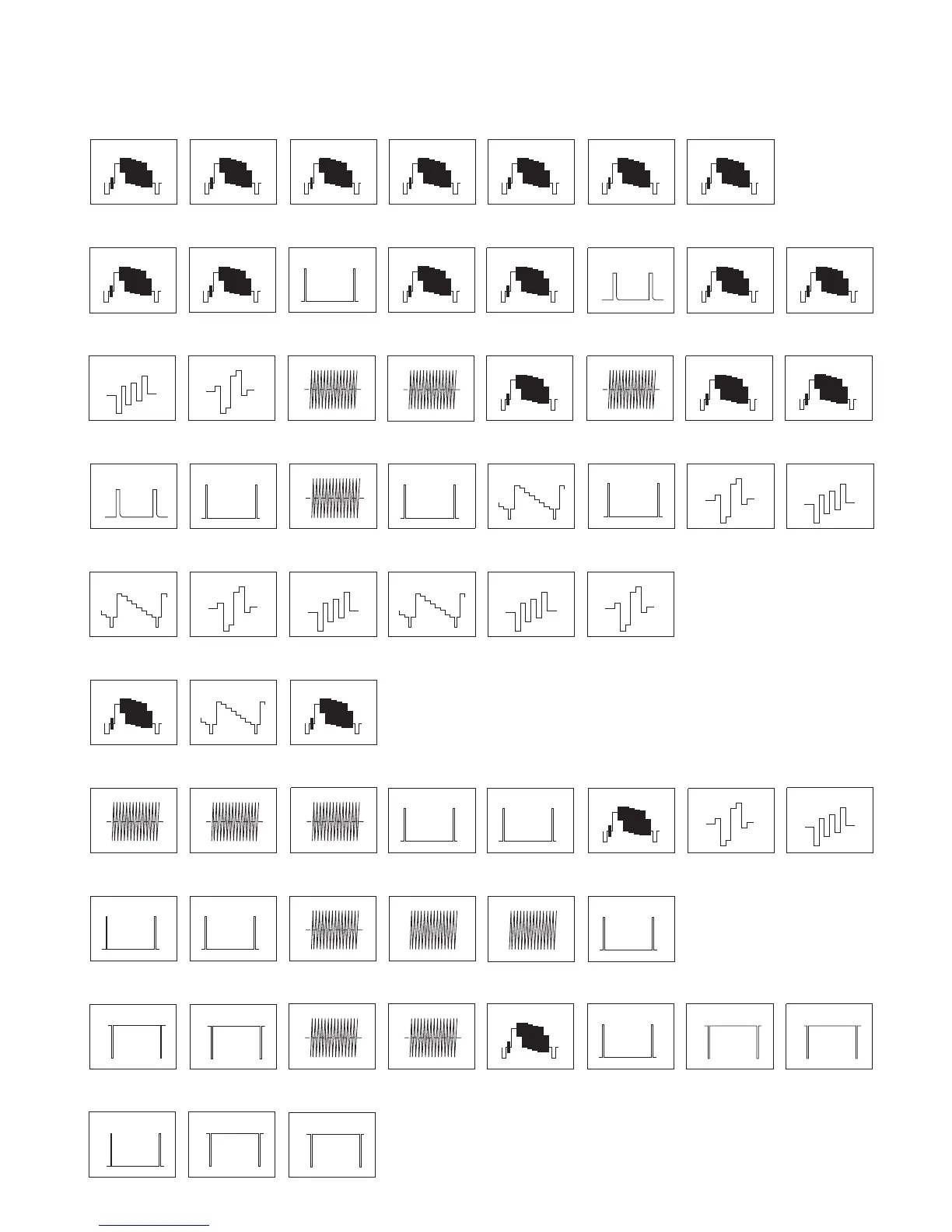

JVC LT-Z37DX5 - Voltage Chatrs; Waveforms

(No.YA362)2-81
IC1001-6
1.5 Vp-p
(0.2 µ s)
IC1001-58
5.0 Vp-p
(0.5 µ s)
IC1001-75
3.2 Vp-p
(H)
IC1001-76
3.2 Vp-p
IC1001-85
0.6 Vp-p
IC1001-92
0.7 Vp-p
IC1001-94
0.7 Vp-p
IC6502-27
3.2 Vp-p
(H)
IC6502-28
3.2 Vp-p
(V)
IC6502-31
2.8 Vp-p
(0.1 µ s)
IC7001-78
3.4 Vp-p
(V)
IC7501-108
1.4 Vp-p
(1 µ s)
IC7501-102
3.2 Vp-p
(V)
IC7501-103
3.2 Vp-p
(H)
IC7506-1
3.2 Vp-p
(H)
IC7506-2
3.2 Vp-p
(H)
IC7506-12
3.2 Vp-p
(V)
IC7506-14
3.6 Vp-p
(V)
IC7506-15
3.5 Vp-p
(H)
DIGITAL SIGNAL PWB (3/11)
(SHEET9)
DIGITAL SIGNAL PWB (7/11)
(SHEET13)
DIGITAL SIGNAL PWB (10/11)
(SHEET16)
DIGITAL SIGNAL PWB (11/11)
(SHEET17)
IC7001-23
2.0 Vp-p
(0.5 µ s)
IC1502-1
1.8 Vp-p
(H)
IC1502-5
1.7 Vp-p
IC1502-7
1.5 Vp-p
DIGITAL SIGNAL PWB (1/11)
(SHEET7)
IC7501-121
0.9 Vp-p
(H)
(H) (H)
IC1001-7
6.0 Vp-p
(0.2 µ s)
(H)
(H)
(H)
IC7001-24
4.8 Vp-p
(0.5 µ s)
IC7506-13
3.2 Vp-p
(V)
IC7501-109
1.5 Vp-p
(1 µ s)
(V)
TU3001-17
0.9 Vp-p
(H)
IC501-41
1.8 Vp-p
IC501-44
0.3 Vp-p
(H)
IC501-49
1.8 Vp-p
(H)
IC501-53
0.3 Vp-p
(H)
IC501-56 IC501-63
0.3 Vp-p
(H)
IC801-1
0.9 Vp-p
(H)
0.2 Vp-p
(H)
IC801-5
0.8 Vp-p
IC801-7
1.5 Vp-p
IC801-9
4.2 Vp-p
(H)
IC801-11
0.7 Vp-p
IC801-21
0.5 Vp-p
IC801-22
0.6 Vp-p
(H)
IC801-23
0.6 Vp-p
(H)
IC801-38
2.5 Vp-p
(1 µ s)
IC801-46
0.8 Vp-p
(2 µ s)
IC802-7
0.8 Vp-p
(H)
IC802-19
0.4 Vp-p
(2 µ s)
IC802-25
1.5 Vp-p
IC802-27
1.5 Vp-p
RECEIVER PWB
(SHEET1)
ANALOG SIGNAL PWB (1/5)
(SHEET2)
ANALOG SIGNAL PWB (2/5)
(SHEET3)
(H)
IC801-3
1.8 Vp-p
(H)
IC801-4
5.0 Vp-p
(V)
IC201-1
4.2 Vp-p
(H)
IC201-2
5.0 Vp-p
(V)
IC201-9
2.0 Vp-p
(0.2
µ s)
IC201-26
0.8 Vp-p
(H)
IC301-35
1.5 Vp-p
(H)
IC301-36
1.5 Vp-p
(H)
IC301-38
1.7 Vp-p
(H)
IC301-43
1.4 Vp-p
(H)
IC301-44
1.4 Vp-p
(H)
IC301-46
1.6 Vp-p
(H)
IC301-75
0.6 Vp-p
(H)
IC301-76
0.6 Vp-p
(H)
ANALOG SIGNAL PWB (3/5)
IC201-19
3.0 Vp-p
(H)
IC201-29
3.0 Vp-p
(V)
(SHEET4)
(H)
(H)
(H)
(H)
(H)
(H)
WAVEFORMS
