(No.YA362)3-7

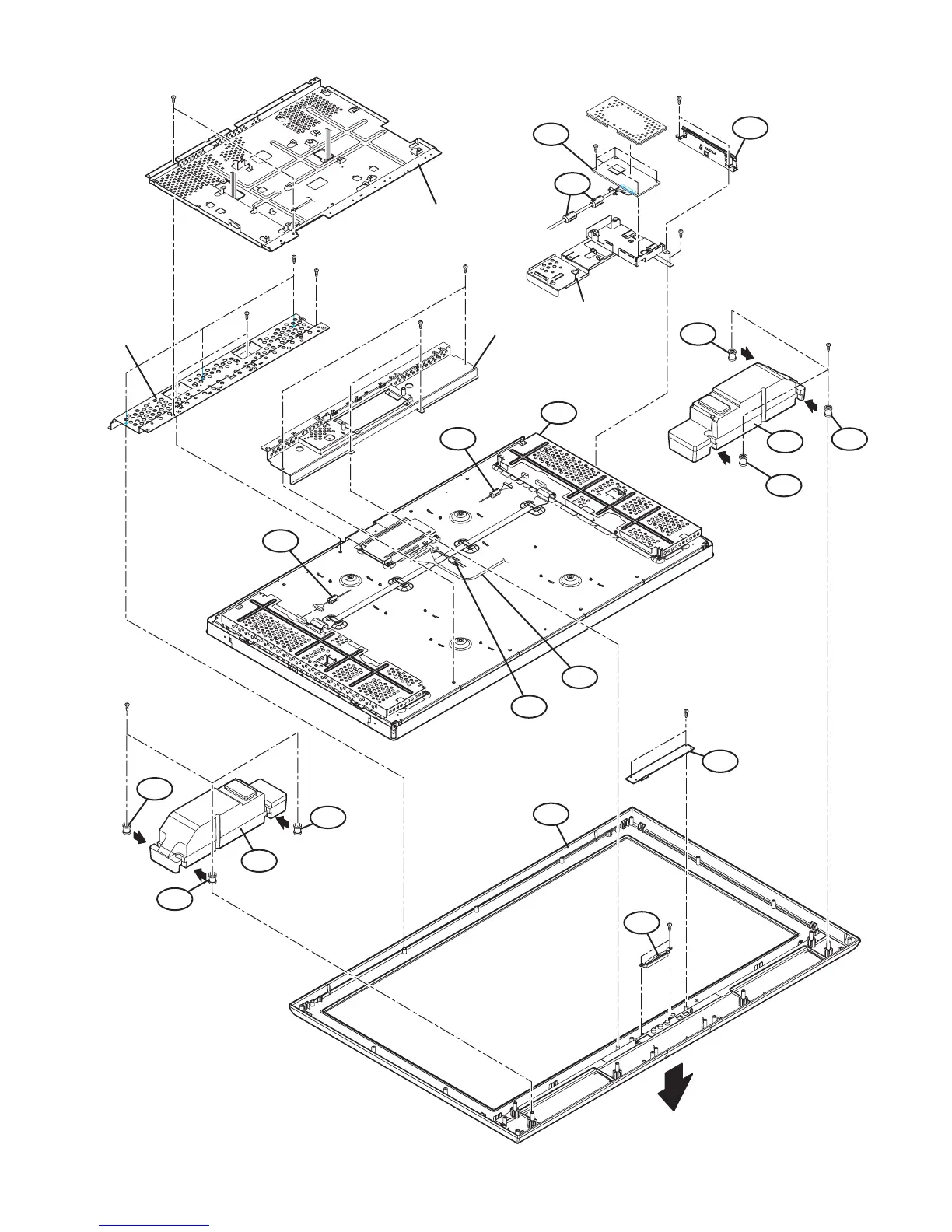

EXPLODED VIEW -2
BOTTOM FRAME
CARD PWB BRACKET
TOP FRAME
MAIN BASE
FRONT
151
158
155
152
153
153
154
208
156
156
156
156
157
156
156
159
209
161
160
