Using the TV’s menu
23
ENGLISH
LT
-Z37
DX5 / LCT
1961-00
1A / English
Operation wit
h the buttons on
the TV

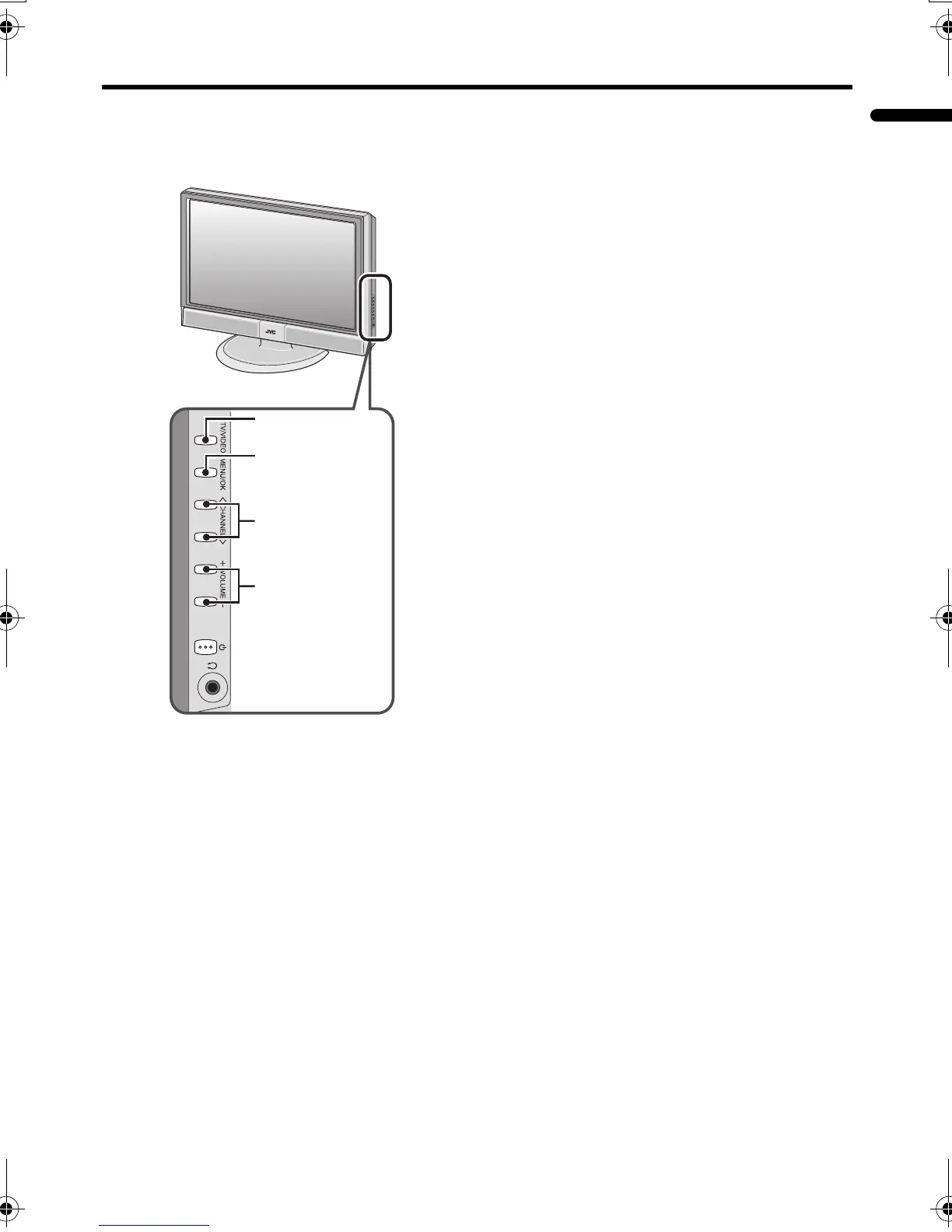

You can also operate the menus using the
buttons on the front panel of the TV.
5
butto
ns
6
buttons
TV/VIDEO b
utton
MENU/OK butt
on
LT-Z37
DX5_En
g.boo
k Page 23 T
u
esday, Septem
ber 27, 2
005
5:01
PM
51
53
Table of Contents
Service Manual
1
Table of Contents
1
Precaution
3
Specific Service Instructions
6
Disassembly
10
Adjustment
17
Troubleshooting
24
Cleaning the Screen
31
Table of Contents
32
Setting up Your TV
33
Installation
33
Using the Stand
33
Removing the Terminal Covers
34
Connecting the Aerial and Video Cassette Recorder (VCR)
35
Connecting the Power Cord to the AC Outlet
36
Putting the Batteries into the Remote Control
36
Initial Settings (Setup Tour)
36
TV Buttons and Functions
38
Turn the TV on from Standby Mode
38
Choose a TV Channel
38
Adjust the Volume
38
Using the Menu
38
Using the Illumination
38
Remote Control Buttons and Functions
39
Turn the TV on or off from Standby Mode
39
Choose a TV Channel and Watch Images from External Devices
40
Adjust the Volume
41
Display Function
41
ZOOM Function
42
CINEMA SURROUND Function
43
Using the "Freeze" Function
43
Using the "Multi-Picture" Function
44
RETURN PLUS Function and Return Function
45
Favourite Channel Function
46
Operating a JVC Brand DVD Player
47
Teletext Function
48
Basic Operation
48
Using the List Mode
48
Hold
49
Sub-Page
49
Reveal
49
Size
49
Index
50
Cancel
50
Using the Tv's Menu
51
Basic Operation
51
PICTURE Menu
53
Picture Mode
53
Back Light
53
Contrast
53
Bright
53
Sharp
53
Colour
53
Tint
53
White Balance
53
Features
54
Super Digipure
54
Digital Vnr
54
Colour Management
55
Colour System
55
SOUND Menu
57
Stereo / I • II
57
Bass
57
Treble
57
Balance
57
Cinema Surround
57
Active Hyper Bass)
57
Bbe
58
FEATURES Menu
59
Sleep Timer
59
Channel Guard
59
Appearance
61
Blue Back
61
Child Lock
61
Auto Shutoff
61
Favourite Setting
61
Illumination
62
Media Card Viewer
62
SET up Menu
63
Auto Program
63
Edit/Manual
63
Language
67
Video-1 Setting/Video-3 Setting
67
Ai Volume
67
Teletext Language
68
Hdmi Setting
68
Displaying a Computer Screen
69
Connecting to the Computer
69
Watching Images from a Computer
69
Table of Signals for each Type of Computer
69
Using a Media Card
70
Supported Media Cards and File Formats
70
Inserting the Media Card
71
Using the MEDIA CARD VIEWER
72
Additional Preparation
75
Connecting External Equipment
75
Connecting the Pc
75
Connecting Headphones
77
Using the HDMI Terminal
78
CH/CC Numbers
80
Troubleshooting
81
Poor Picture
81
Other Issues
82
Specifications
83
HDMI Connector
83
Standard Circuit Diagram
89
No.ya362)1
90
Semiconductor Shapes
91
Wiring Diagram
92
Block Diagram
93
Circuit Diagrams
94
Receiver Pwb Circuit Diagram
94
Digital Signal Pwb Circuit Diagram
100
Front Control Pwb Circuit Diagram
112
Front Led Pwb Circuit Diagram
112
Regulator Pwb Circuit Diagram
115
Card Pwb Circuit Diagram
116
Pattern Diagrams
118
Receiver Pwb Pattern
118
Analog Signal Pwb Pattern
119
Digital Signal Pwb Pattern
121
Panel I/F Pwb Pattern
123
Main Power Pwb Pattern
124
Regulator Pwb Pattern
126
Card Pwb Pattern
127
Voltage Chatrs
130
Waveforms
130
Parts List
132
Table of Contents
133
Using P.w. Board & Remote Control Unit
134
Exploded View Parts List -1
135
Exploded View -1
136
Exploded View Parts List -2
137
Exploded View -2
138
Printed Wiring Board Parts List [Lt-Z37Dx5]
139
Analog Signal P.w. Board Ass'y (Lca90537-03A) (Sfl-1133A)
139
Receiver P.w. Board Ass'y (Lca90581-01A) (Sfl-4133A)
143
Front Control P.w. Board Ass'y (Lca90469-04A) (Sfl-7113A)
144
Front Led P.w. Board Ass'y (Lca90470-03B) (Sfl-8133A)
144
Card P.w. Board Ass'y (Lca10556-03A) (Sfl-8512A)
144
Main Power P.w. Board Ass'y (Lca90463-21A) (Sfl-9039A)
146
Regulator P.w. Board Ass'y (Lca90464-19A) (Sfl-9138A)
148
Digital Signal P.w. Board Ass'y (Lca10557-85A) (Sfl-0D343A)
148
Panel I/F P.w. Board Ass'y (Lca10652-01A) (Sfl-0H001A)
154
Printed Wiring Board Parts List [Lt-Z37Dx5/A]
156
Analog Signal P.w. Board Ass'y (Lca90537-03A) (Sfl-1133A)
156
Receiver P.w. Board Ass'y (Lca90581-01A) (Sfl-4133A)
156
Front Control P.w. Board Ass'y (Lca90469-04A) (Sfl-7113A)
156
Front Led P.w. Board Ass'y (Lca90470-03B) (Sfl-8133A)
156
Card P.w. Board Ass'y (Lca10556-03A) (Sfl-8512A)
156
Main Power P.w. Board Ass'y (Lca90463-21A) (Sfl-9039A)
156
Regulator P.w. Board Ass'y (Lca90464-19A) (Sfl-9138A)
156
Digital Signal P.w. Board Ass'y (Lca10557-87A) (Sfl-0D345A)
156
Panel I/F P.w. Board Ass'y (Lca10652-01A) (Sfl-0H001A)
162
Printed Wiring Board Parts List [Lt-Z37Dx5/S]
163
Analog Signal P.w. Board Ass'y (Lca90537-03A) (Sfl-1133A)
163
Receiver P.w. Board Ass'y (Lca90581-01A) (Sfl-4133A)
163
Front Control P.w. Board Ass'y (Lca90469-04A) (Sfl-7113A)
163
Front Led P.w. Board Ass'y (Lca90470-03B) (Sfl-8133A)
163
Card P.w. Board Ass'y (Lca10556-03A) (Sfl-8512A)
163
Main Power P.w. Board Ass'y (Lca90463-21A) (Sfl-9039A)
163
Regulator P.w. Board Ass'y (Lca90464-19A) (Sfl-9138A)
163
Digital Signal P.w. Board Ass'y (Lca10557-86A) (Sfl-0D344A)
163
Panel I/F P.w. Board Ass'y (Lca10652-01A) (Sfl-0H001A)
169
Packing Parts List
169
Remote Control Unit Parts List (Rm-C1830-1C)
169
Packing
170
