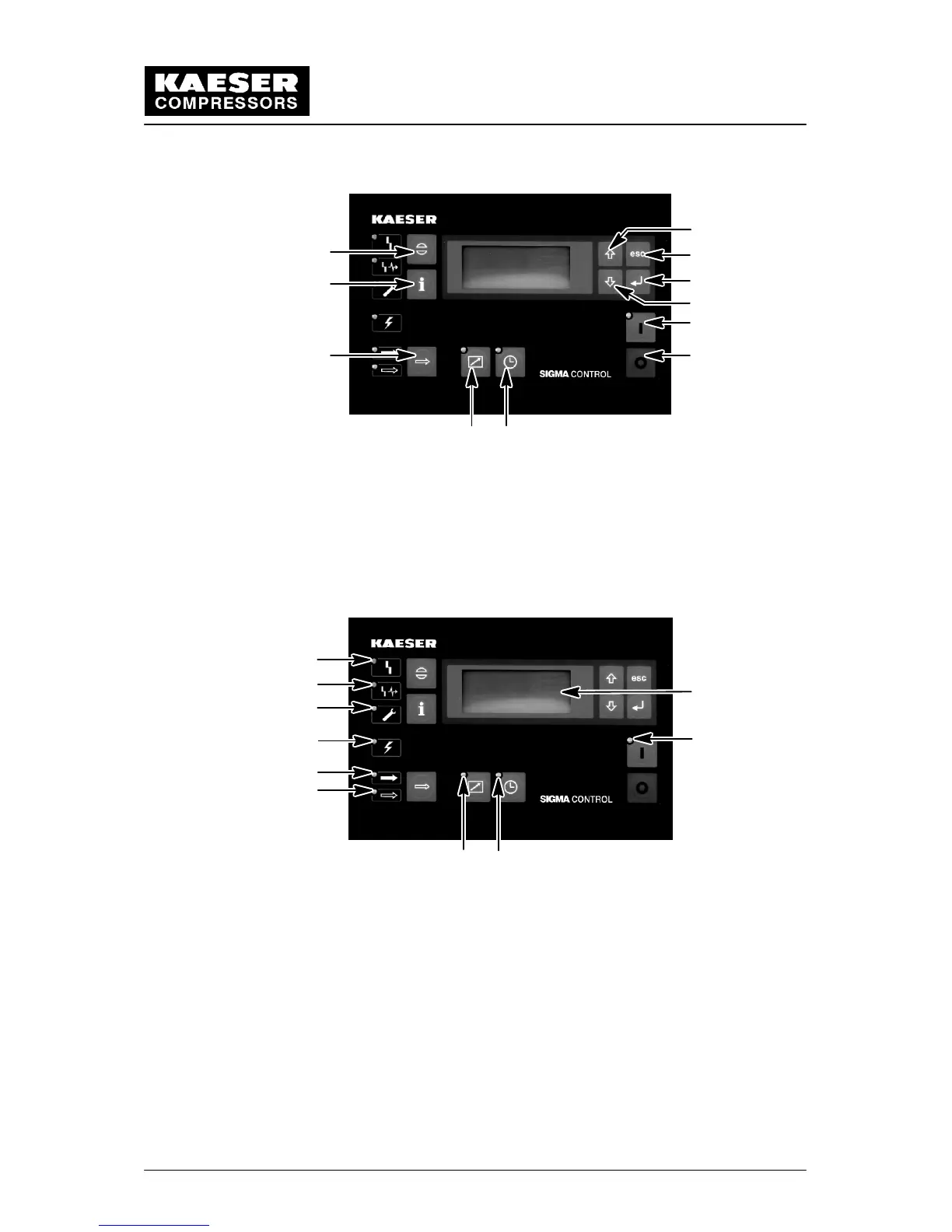

8.3.1 Function keys
1
2
8
9
43
11
10
5
7
6
1ONkey(“I”) 6 Menu scroll --- DOWN key
2 OFF key (“0”) 7 Menu scroll --- UP key
3 Timer ON/OFF key 8 Escape key
4 Remote ON key 9 Return key
5 Load/idle key 10 Info --- event key
11 Acknowledge (reset) key
8.3.2 Light emitting diodes and plain text display
12
13
19
14
15
16
17
18
20 21
12 Four---line display 17 Load LED
13 Alarm LED 18 Idle LED
14 Communication alarm LED 19 Compressor ON LED
15 Warning --- maintenance LED 20 Remote ON LED
16 Power ON LED (to controller) 21 Timer ON LED
