Kamstrup flowIQ 3100 User Manual

flowIQ® 3100 TECHNICAL DESCRIPTION
17
Kastup A/S • Tehial Desiptio • 5512-1242_D1_GB • 09.2016
Water meter, Type
N / E– 40 / 100 m
3
6.2 Meter size, connection, weight and dimensions

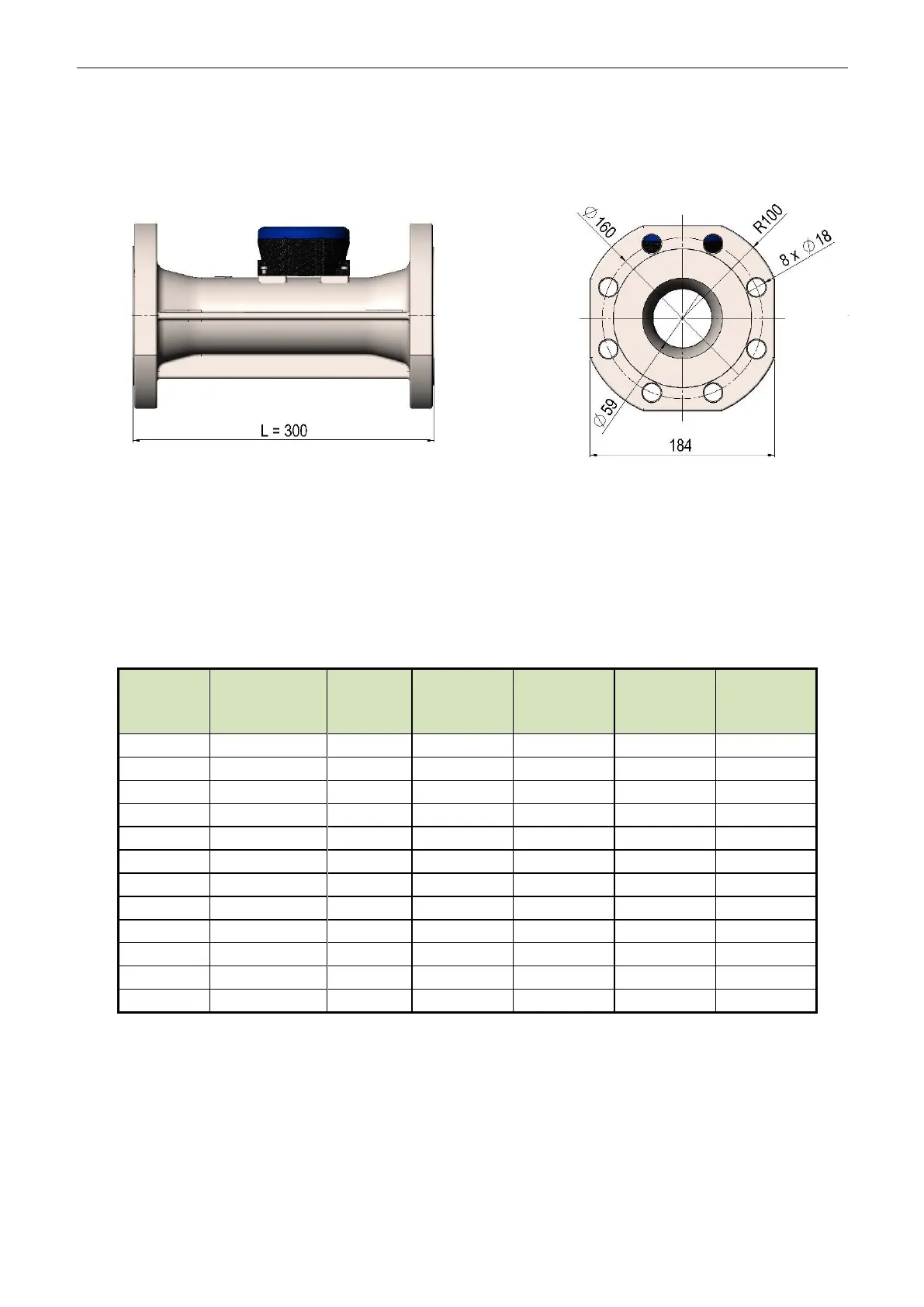

See dimensions for threaded and flanged meters in the table below:
Q
3
m³/h
Thread/flange
on meter
L
mm
H
mm
B
mm
Approx.
weight
Kg
Meter type
1.6
G¾B (R½)
110
97
91.6
1.05
A
2.5
G¾B (R½)
110
97
91.6
1.05
B
2.5
G1B (R¾)
190
97
91.6
1.8
C
2.5
G5/4B (R1)
175
89.5
91.6
1.9
2
4.0
G5/4B (R1)
175
89.5
91.6
1.7
3
4.0
G5/4B(R1)
260
89.5
91.6
2.5
G
6.3
G5/4B(R1)
260
89.5
91.6
2.5
H
10
G2B(R1½)
300
104.5
91.6
4.7
J
16
DN50
270
165
165
8.5
L
25
DN65
300
185
185
12.0
M
40
DN80
300
185
185
14.2
N
