TECHNICAL DESCRIPTION flowIQ® 3100
52 Kastup A/S • Tehial Desiptio • 5512-1242_D_GB • 09.2016
13 Pulse Interface for flowIQ® 3100 / MULTICAL® 21
Pulse Interface, type 66-99-143, is used during calibration and verification in test stands with pulse interface.
The optical reading head is retained on flowIQ® 3100 by means of a transparent plastic holder (Optical
support, type 6561-331). Data from flowIQ® 3100 is read by the optical reading head, and in the pulse
interface unit converted into high-resolution volume pulses which can be registered by a pulse receiver.
When the optical reading head is removed it takes 9 hours before the meter returns to normal mode.

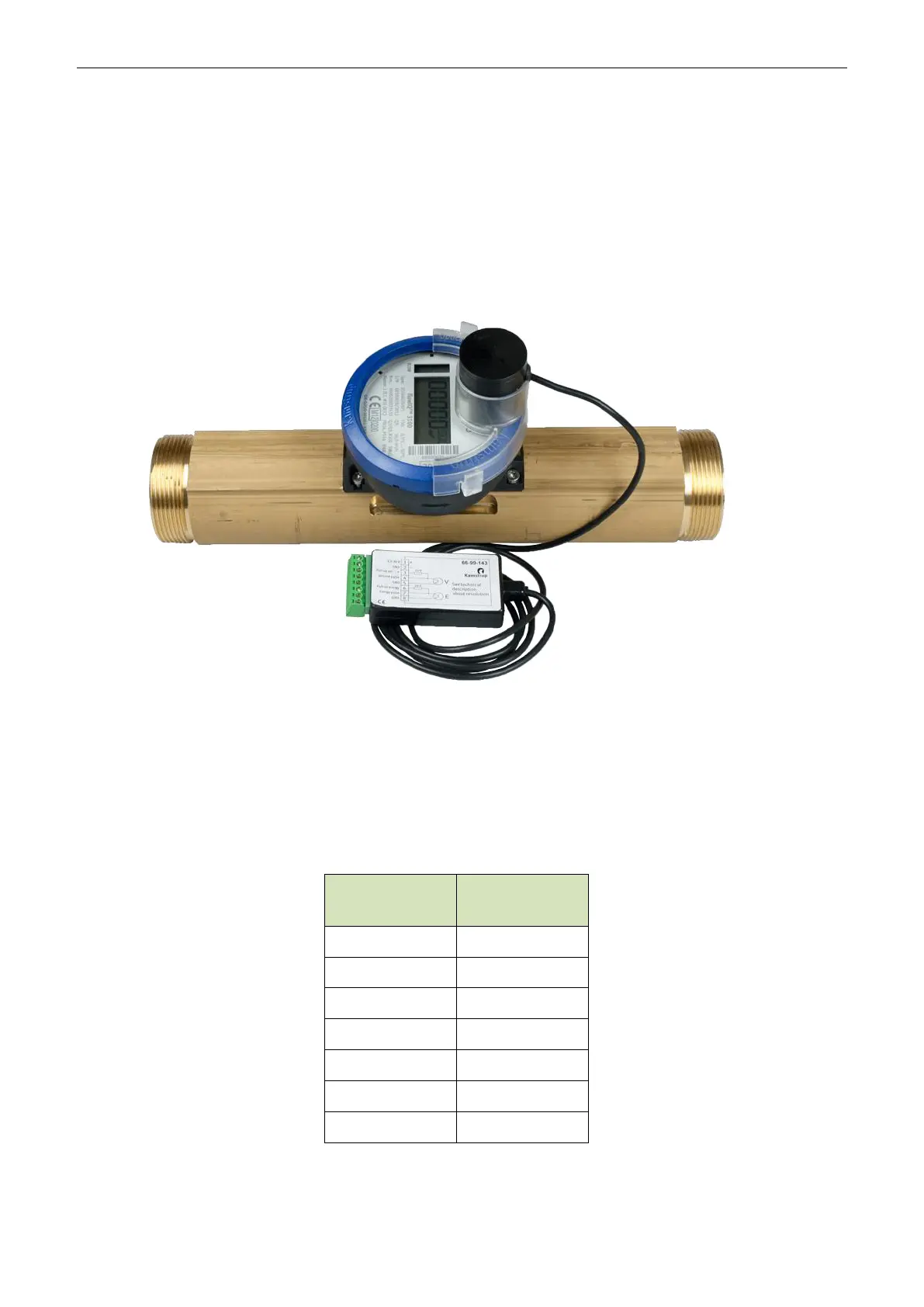

Pulse Interface, type 66-99-143 , with Optical Support type 6561-331 on flowIQ® 3100
Supply: 3.5-30 VDC  15 mA
Standby:  0.2 mA
Pulse width: = 3.9ms
Frequency: Max frequency of 128 Hz
Meter size
Q
3
[m
3
/h]:
Volume
[pulses/liter]
1.6 & 2.5
100
4.0
50
6.3
25
10
12,5
16
12,5
25
6
40
6
