9.7 Display functions
flowIQ® 3100 is fitted with an easily readable LCD-display including 8 digits, measuring units, information
field with info codes as well as flow indicator (arrows).

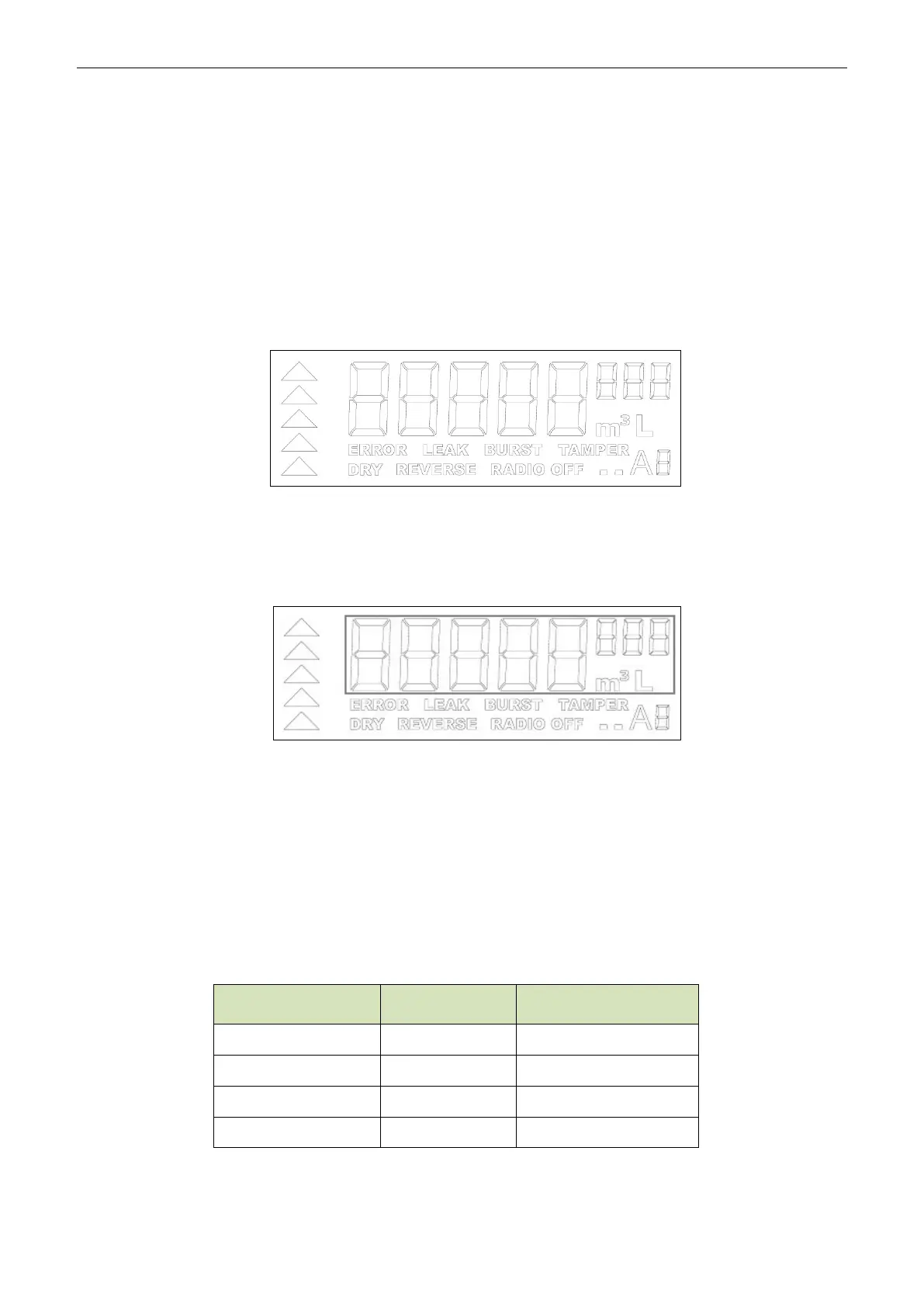

The display layout is shown in the figure below.
In the following examples white/uncoloured segments (see below) indicate inactive segments, whereas black
segments indicate active segments.
9.7.1 Volume
Volume can be displayed in two different units – m
3
or L.
Depedig o ode the legal volume is displayed in the unit [m
3
] (normal mode) - or the part of the legal
volume, which is below 100 m
3
, in the unit [L] (verification mode). This setting is only used during verification.
The difference in size, between the three small 7-segments furthest to the right and the five large 7-segments
furthest to the left, indicates a decimal point; this means that the value that can be shown in the display, and
thereby the measured quantity, can be maximum 99,999.999.
The table below shows an overview of modes and readings:
