8.1.1 Installation conditions
As mentioned above the use of new gaskets in original quality is of crucial importance.
8.1.2 Permissible operating conditions
Ambient temperature: … °C – indoors or outdoors.
Installation in direct sunlight ought to be avoided.
Humidity: Indoor and outdoor condensing, and water filled wells.
Temperature of media: .… °C
System pressure (thread meters): . … a depedig o oupligs/gaskets
System pressure (flange meters): 0. … a
8.1.3 EMC conditions
flowIQ® 3100 has been designed for installation in housing and meter wells as well in commercial and
industrial buildings. The meter is CE-marked according to MID on the basis of OIML R49 type test class E1
and E2 for wireless M-Bus version, and E1 for wired M-Bus version, as well as the Low Voltage Directive.
8.1.4 Service
When the meter has been mounted in the system, neither welding nor freezing is allowed. Dismount the
meter from the system before starting such work.
In order to facilitate replacement of the meter, closing valves should be mounted on both sides of the
meter. Under normal operating conditions no pipe strainer is required in front of the meter.
8.2 Installation angle
The meter can be mounted at all angles and in all positions. Thus, the meter can be mounted in a usual
horizontal installation. It can be mounted vertically in an ascending pipe, it can be mounted at any angle and
it can be mounted with its display pointing downwards, e.g. under a ceiling.
Moutig the ete i a dopipe, ou ust e aae that the displa ill i that ase e upside do.

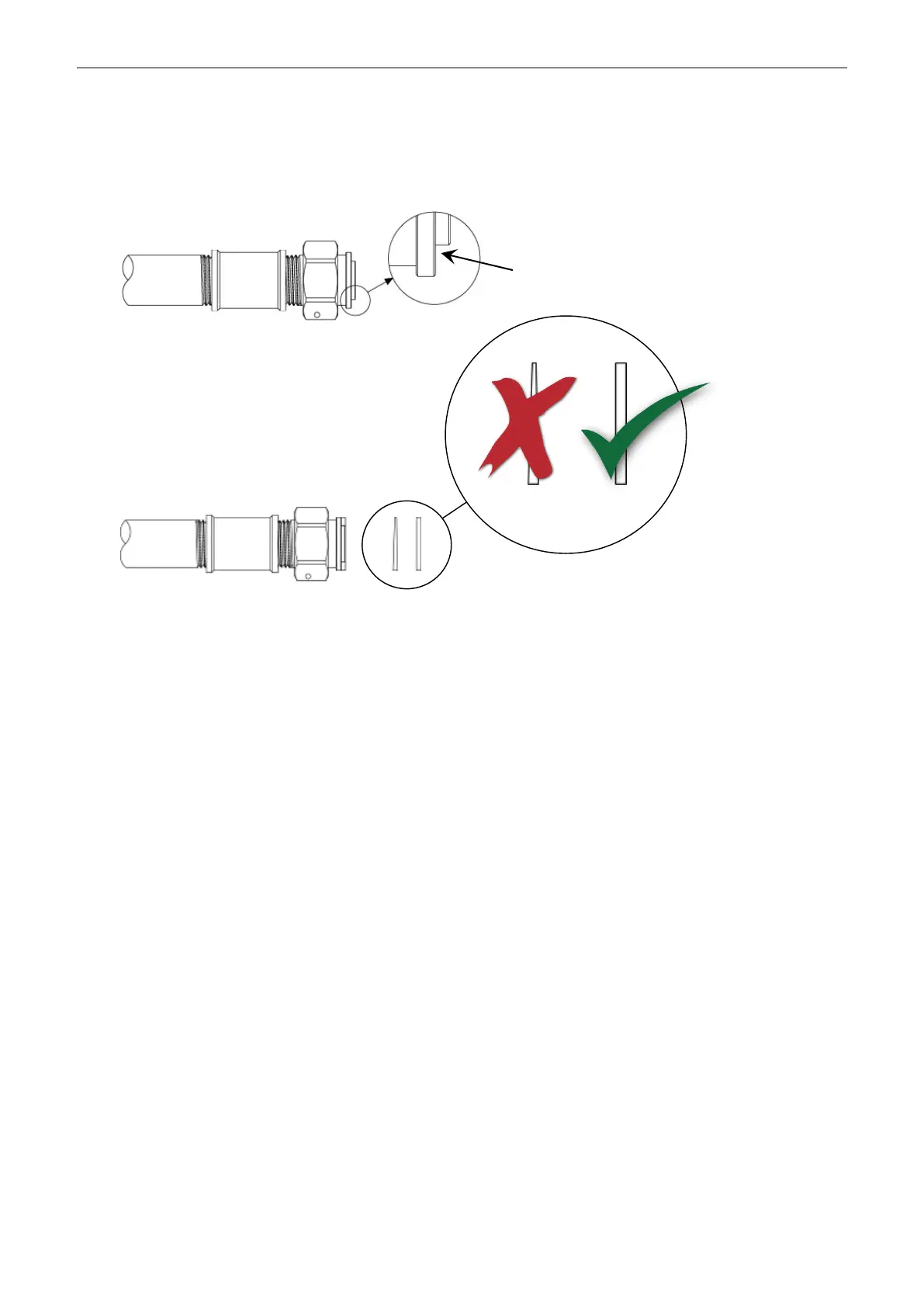

The sealing surface of the
threaded connection
must be clean and level
