TECHNICAL DESCRIPTION flowIQ® 3100
48 Kastup A/S • Tehial Desiptio • 5512-1242_D_GB • 09.2016
12 Pulse Adapter for flowIQ® 3100
The Pulse Adapter is a stand-alone unit designed to be mounted on the flowIQ® 3100 water meter.
The unit must be mounted indoors in utility rooms or similar.
The Pulse Adapter receives optical pulses from flowIQ® 3100 and transmits them to external data
acquisition or control systems through a wired pulse output.

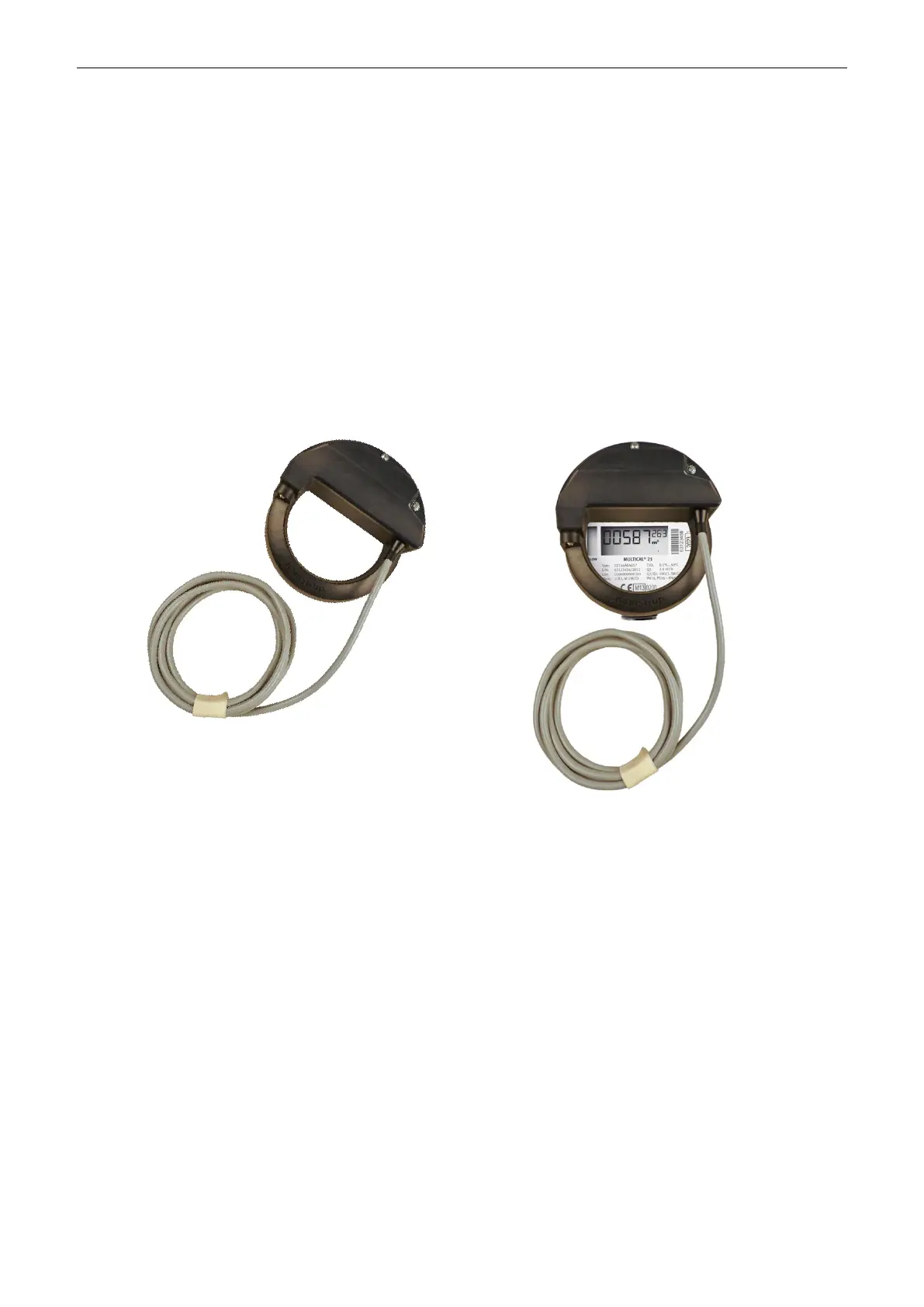

Pulse Adapter type 66-99-021 - here shown mounted on the water meter
12.1 Function
Pulse output:
 Ope Colleto -wire connection)
 Pulse duration 100 ms
 Resolution 0.1pulses/liter (1 pulse/10 liters)
o Cable type: length approx. 1.5 meter, sleeves on cable ends.
o Permitted cable length in total, maximum 30 meters.
The Pulse Adapter can be used for flowIQ® 3100 – SW revision H1 and forward.
