Kamstrup MULTICAL 602 Technical Description

MULTICAL®602
10
KamstrupA/S∙ TechnicalDescription∙5512‐931_N1_GB_11.2016
2.3 Mechanical data
Environmental class Meets EN 1434 class A and C
Ambient temperature 5…55
°C non condensing, closed location (indoor installation)
Protection class IP54
Storage temperature -20…60 °C (drained meter)
Weight 0.4 kg excluding sensors and flow
sensor
Connection cables ø3.5…6 mm
Supply cable ø5…10 mm
2.4 Materials
Top cover PC
Base unit ABS
with TPE packings (thermoplastic elastomer)
Print bo
x
ABS
Wall brackets
DIN rail bracket
PC + 30 % glass
PC + 20 % glass
2.5 Accuracy

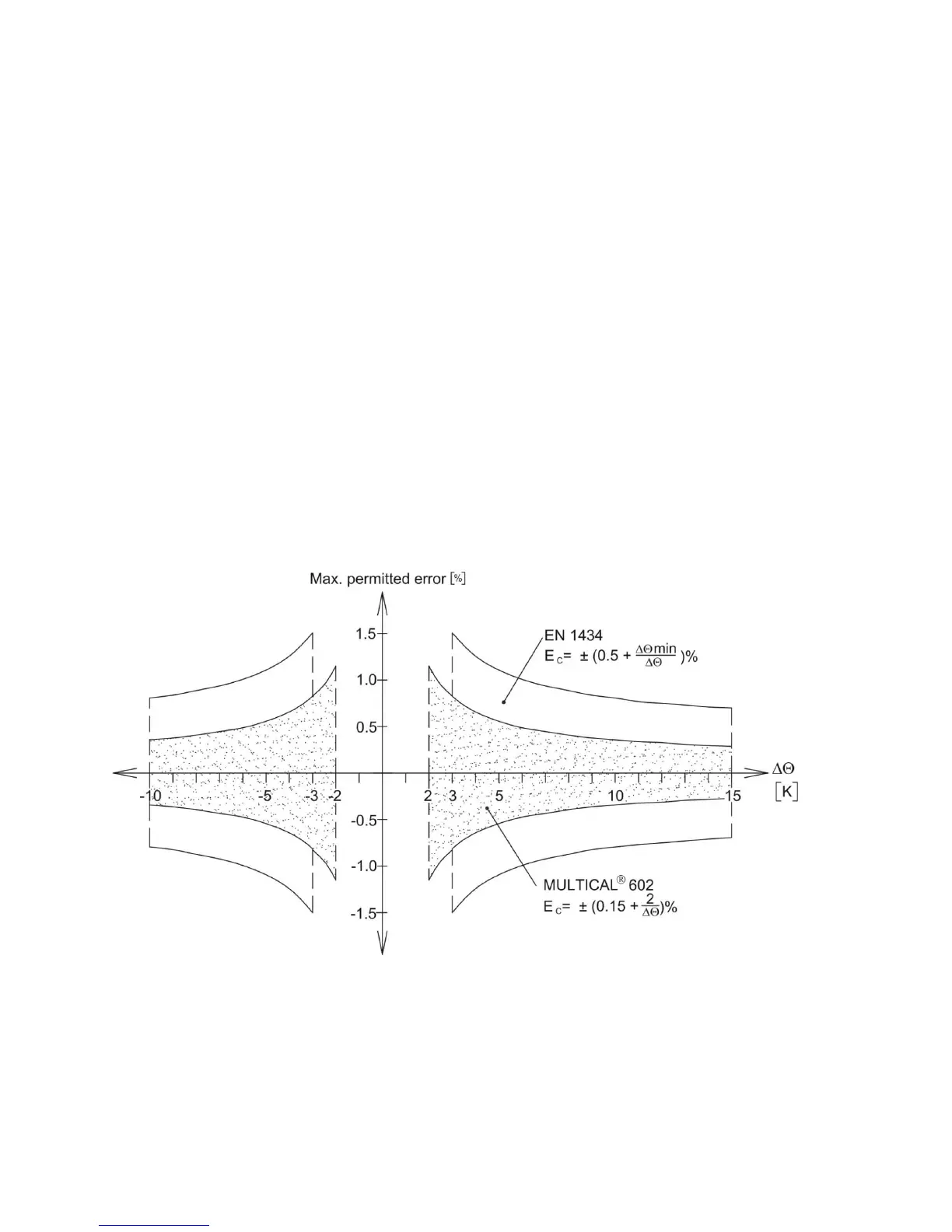

Figure 1. MULTICAL
®
602 typical accuracy compared with EN 1434.

Kamstrup MULTICAL 602 Specifications

General

Flow Sensor	Ultrasonic
Display	LCD
Battery Life	Up to 16 years
Communication	M-Bus, Wireless M-Bus
Approval	MID class 2, EN 1434
Accuracy	Class 2
Pressure Rating	PN16
Application	Heating and cooling systems
Temperature Range	0°C to 180°C
