Functional DescriptionCP-Parameter Definition
© KEB Antriebstechnik, 1997
All Rights reserved
Chapter
Section
Page
Date
6.12 CP-Parameter
Definition
6.12.1 Survey

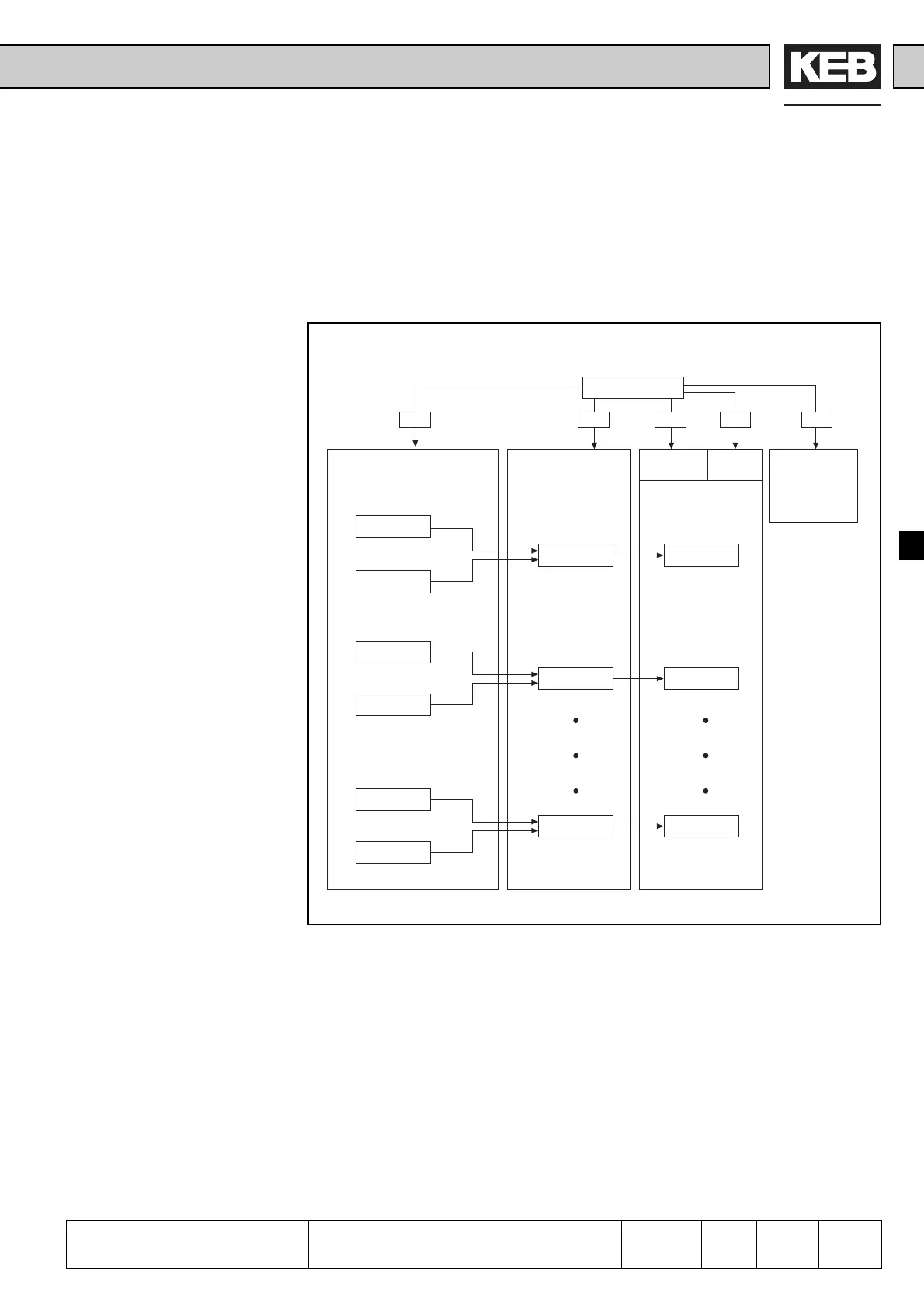

Picture 6.12.1 Definition structure
Once the development stage of a machine is completed only a few parameters are
usually needed for the readjustment or the control of the inverter. To simplify the
handling and the user documentation and to improve the safety of operation by
eliminating unauthorized access, it is possible to create an own operator interface -
the CP-parameters. For that purpose 25 parameters (CP.0…CP.24) are available and
24 of them (CP.1…CP.24) are free to assign.
CP.0 / ud.0
ud.15
ud.16
ru.3
Adress
Set
ud.17
ud.18
oP.11
Adress
Set
ud.61
ud.62
In.0
Adress
Set
CP.1
CP.2
CP.24
Service modeApplication mode
CP-Mode
Read /
Write
Read
only
440 330 200 100 500
Drive mode
Password
0...7 oder A
0...7 oder A
0...7 oder A
With two ud-parameters the parameter to be displayed is defined by its address and
the respective set. Depending on the adjusted password (CP.0 or ud.0)
- the adjusted parameter is displayed directly in the service-mode
- the adjusted parameter is displayed in the CP-mode as CP-parameter
Parameter CP.0 is not programmable and contains always the password input. If the
inverter is in the application or the service-mode ud.0 is used for password input.
The parameters ud.15 up to ud.62 as well as Fr.0 and Fr.1 are not permissible as CP-
parameter and are therefore acknowldged as invalid address. When entering an inva-
lid parameter address the parameter is set to „oFF“ (-1). The corresponding CP-
parameter is not represented at this setting.
