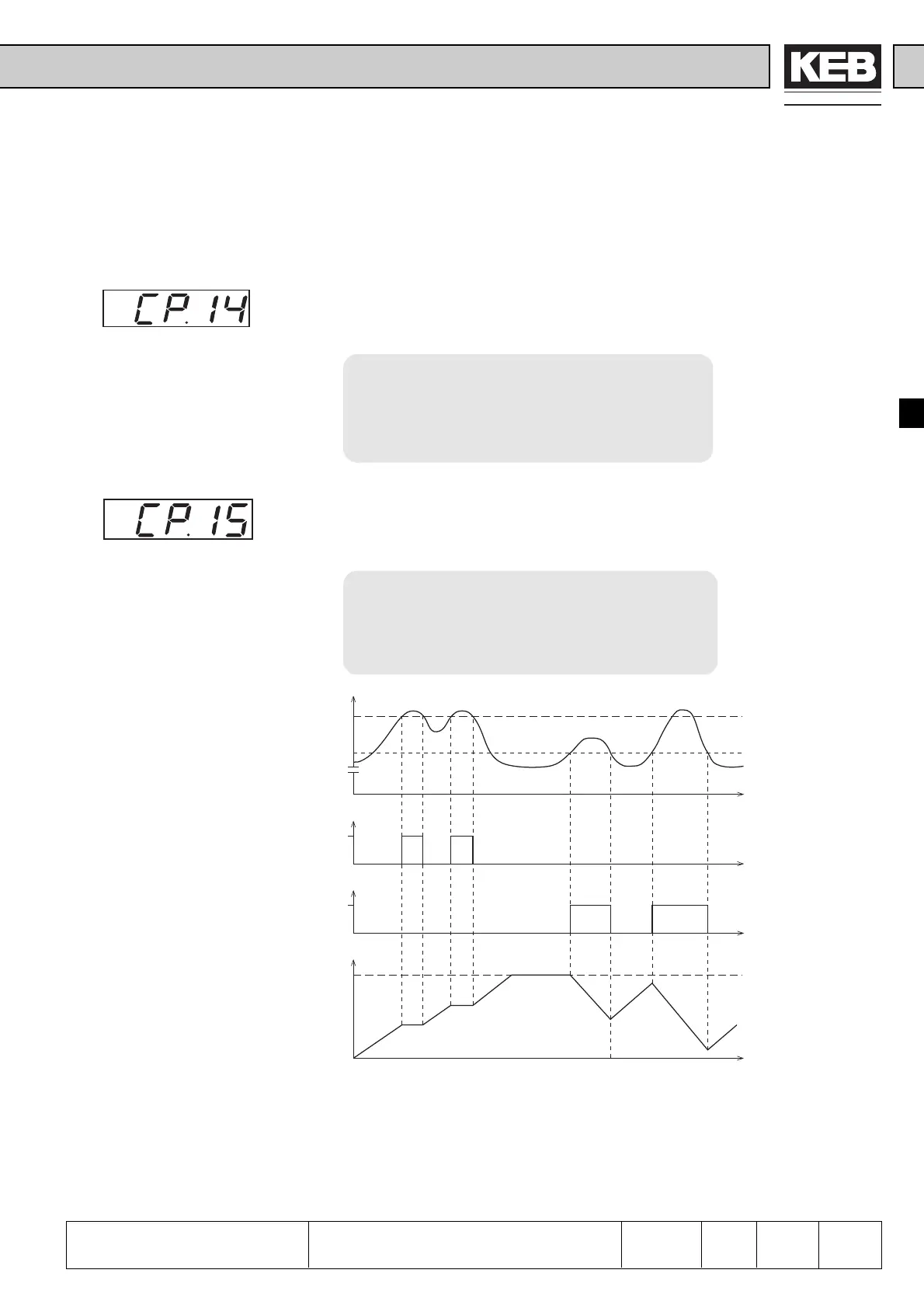

4.3.6 Special Settings
The following parameters serve for the optimization of the drive and the adaption to
the application. These settings can be ignored at the initial start-up.
This function protects the frequency inverter against switch-off due to overcurrent
during the acceleration phase. On attaining the adjusted value the ramp is stopped
until the current drops again. At active function the display shows „LAS“ (CP.2).
Setting range: 10...200 %, 200% = off Housing size D
10...200 %, >150% = off Housing size E upwards
Resolution: 1 %
Factory setting: 140 %
Customer setting: _______ %
This function protects the inverter against switch-off due to overcurrent at constant
output frequency. On exceeding the value adjusted here, the output frequency is
reduced until it falls below the value. At active function the display shows „SLL“ (CP.2).
Setting range: 10...200 %, 200%=oFF Housing size D
10...200 %, >150% = oFF Housing size E upwards
Resolution: 1 %
Factory setting: 200%
Customer setting: _______ %
Max. constant current
Max. ramp current
t
t
t
Ramp stop
t
Current limit
factual
C.14
C.15
fset
on
off
off
on
