Networks
Network Hardware
5243 1
9876
11.1.1 Available Hardware
11.1 Network
Components
The KEB COMBIVERT F4 can be easily integrated into different networks. For that
the inverter is fitted with an operator or interface that corresponds to the bus system.
Following hardware components are available:
- Interface Operator Part No..: 00.F4.010-1009
serial network in RS232 or RS485-Standard
- Bus Operator Part No..: 00.F4.010-7009
serial network in RS485-Standard
- InterBus Loop-Operator Part No..: 00.F4.010-8009
- InterBus Host Controller Board (internal)
- InterBus Host Controller Board (external)
- LON-Bus-Operator Part No..: 00.F4.010-4009
- CAN-Bus-Operator Part No..: 00.F4-010-5009
- Profibus-DP-Operator Part No.: 00.F4.010-6009
- Optical fibre interface Part No.: 00.F4.028-0009
- Optical fibre operator Part No.: 00.F4.010-A009
11.1.2 Interface- and
Bus-Operator
Integrated into the Interface Operator (00.F4.010-1009) is an isolated
RS232/RS485 interface. The RS232-interface is not applicable for the
Bus-Operator (00.F4.010-7009). The telegram structure is compatible to
protocol DIN 66019 and ANSI X3.28, sub catagory 2.5, A2, A4 and ISO
1745.

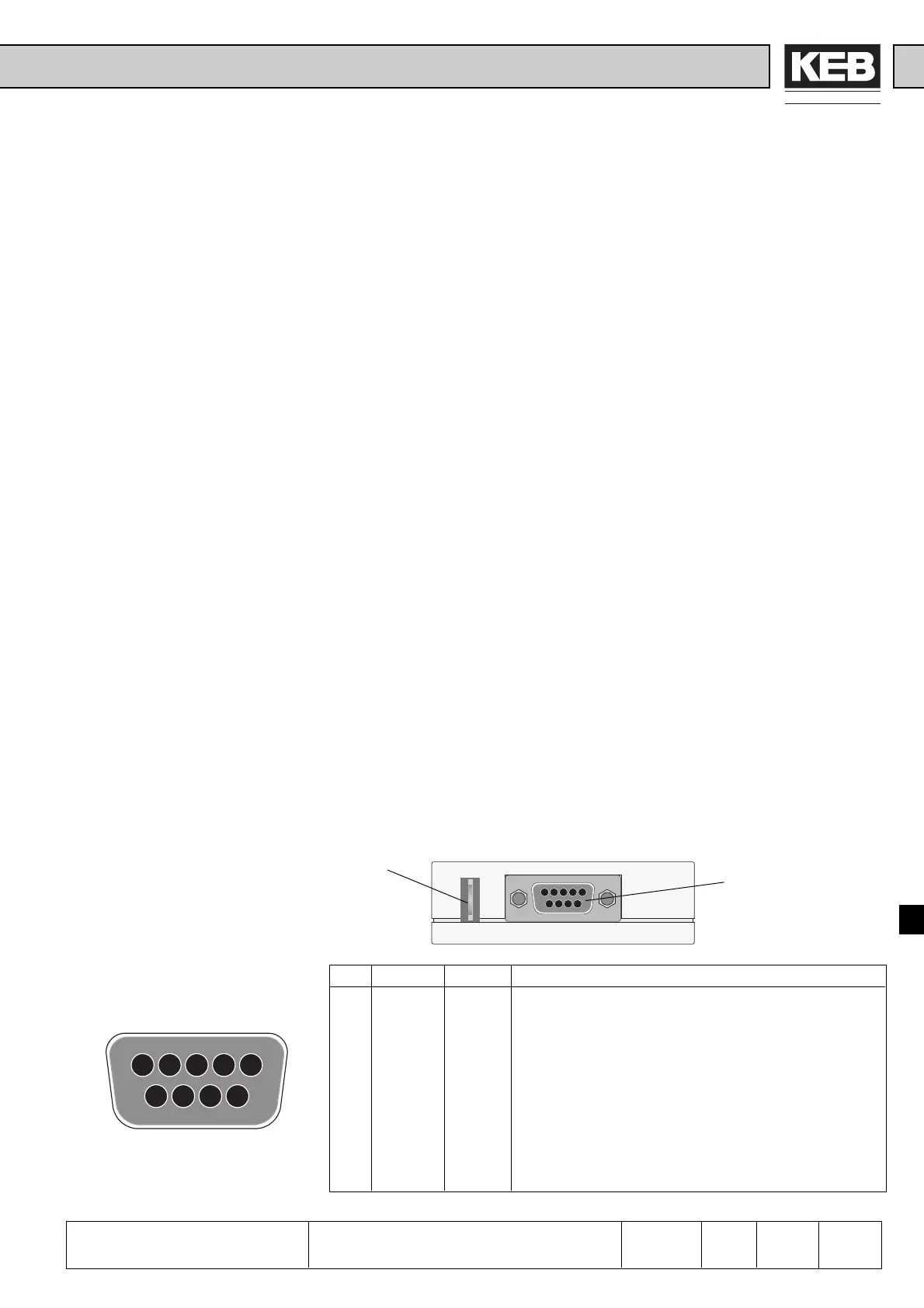

RS232/RS485
PE-Connection
PIN RS485 Signal Significance
1 – – reserved
2 – TxD transmitter signal /RS232
3 – RxD receive signal /RS232
4 A' RxD-A receive signal A/RS485
5 B' RxD-B receive signal B/RS485
6 – VP supply voltage -Plus +5V (I
max
=10mA)
7 C/C' DGND data reference potential
8 A TxD-A transmitter signal A/RS485
9 B TxD-B transmitter signal B/RS485
