KEB COMBIVERT F4-C Applications Manual

5
ANTRIEBSTECHNIK
4
45
KEB COMBIVERT F4-C
Name: Basis
09.02.98
4
OperationDrive-Mode
© KEB Antriebstechnik, 1997
All Rights reserved
Section
Page
Date
Chapter

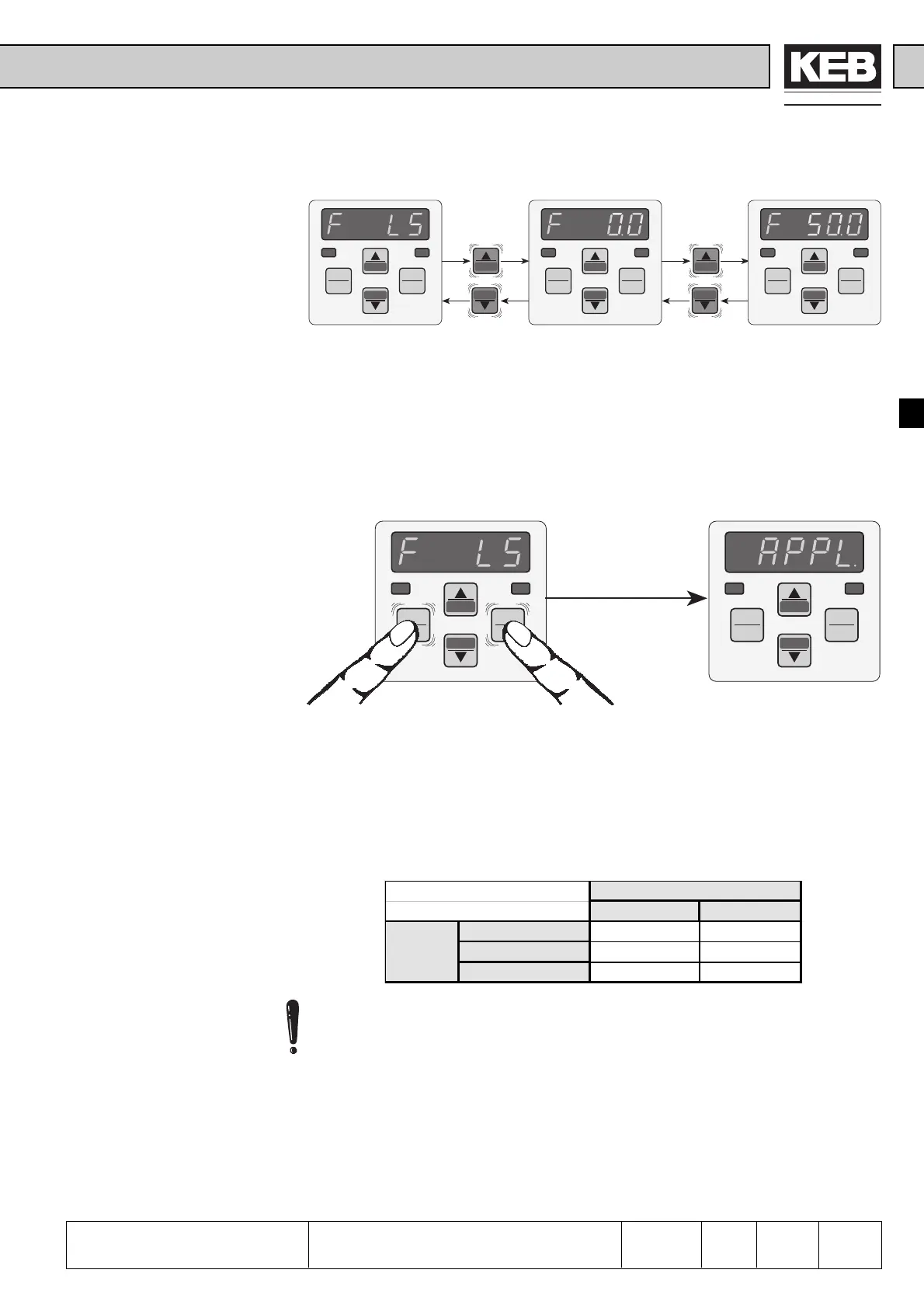

To leave the Drive-Mode, the keys „FUNC“ and „ENTER“ must be pressed
simultaneously for approx. 3 seconds while being in status „Stop“! The unit jumps
back into the mode from where the Drive-Mode was started.
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
Stop Run
ud. 9 = 4 or 5
Start
4.4.6 Leaving the Drive-
Mode
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
approx. 3 sec.
Stop
Leaving
Drive-Mode
4.4.7 Further Settings
Operation-Mode Set value source
ud. 9 Keyboard depend. oP. 0
Stop / Run ud. 9 = 0 ud. 9 = 1
Condition Start / Run ud. 9 = 2 ud. 9 = 3
Stop / Start / Run ud. 9 = 4 ud. 9 = 5
With the Drive-Mode operating mode (ud.9) the setpoint sources and the conditions
at starting/stopping can be specified. As setpoint source serves either the keyboard
in the Drive-Mode as described under 4.4.3 or the setpoint source selected under
parameter oP.0. Refer to 4.4.5 to learn about the different operating conditions at
starting/stopping.
To avoid undefined conditions, it must be ensured that the minimum frequency (oP.4)
is set to 0 Hz at the values ud.9 =2…5 .
