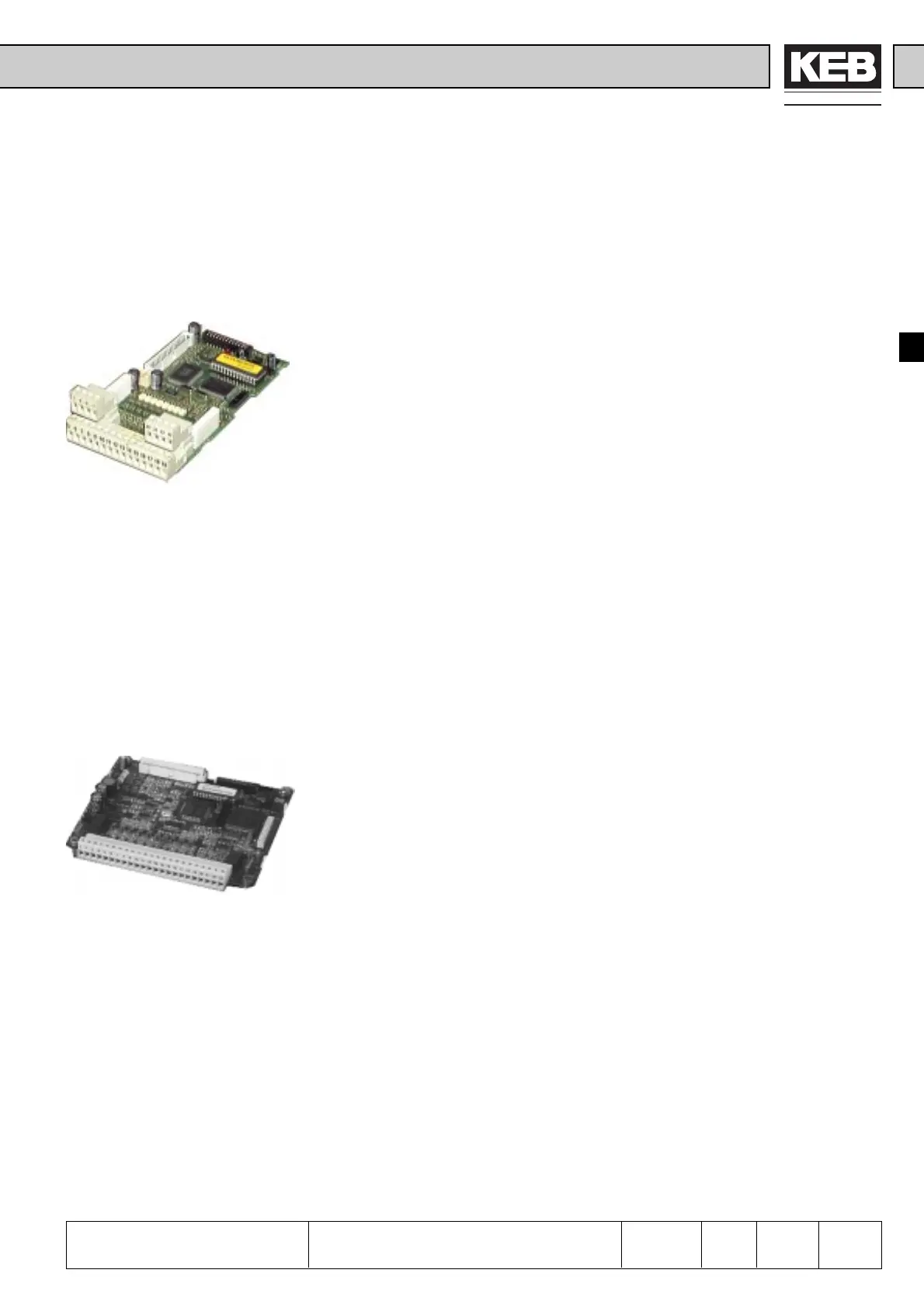

3.1.3 Control Card
0D.F4.080-xxxx
This control card is used in D and E units when a speed detection is required. According
to these instructions the functional extent of the control card is not limited.
Specifications
- 1 programmable transistor output 14...30VDC / max. 20mA
- 2 programmable relay outputs 30VDC / 1A
- 4 programmable digital inputs 12...30VDC ±0% / R
i
=2kΩ
- 4 non-adjustable digital inputs 12...30VDC ±0% / R
i
=2kΩ
- 1 analog output 0...10VDC / max. 5mA at R
B
>56kΩ const.
- 1 multi-function analog output 0...10V, 0...20mA or 4...20mA
- 1 differential voltage input ±10VDC
- 1 voltage output +15VDC / max. 100 mA for the supply of the digital inputs and
outputs
- 1 voltage output +10VDC / max. 4mA for the supply of the setpoint value poti
- separate supply
To operate the control card one of the speed detection cards described in Chapter
6.10 is necessary.
3.1.4 Control Card
00.F4.080-xxxx
This control card is used in units with housing size G and upwards. According to
these instructions the functional extent of the control card is not limited. For INTER-
BUS or CAN-BUS applications an interface card can be connected to the control in
case the operator is used for operation or control.
- 1 programmable transistor output 14...30VDC / max. 20mA
- 2 programmable relay outputs 30VDC / 1A
- 4 programmable digital inputs 12...30VDC ±0% / R
i
=2kΩ
- 4 non-adjustable digital inputs 12...30VDC ±0% / R
i
=2kΩ
- 1 analog output 0...10VDC / max. 5mA at R
B
>56kΩ const.
- 1 multi-function analog input 0...10V, 0...20mA or 4...20mA
- 1 differential voltage input ±10VDC
- 1 voltage output +15VDC / max. 100mA for the supply of the digital inputs and
outputs
- 1 voltage output +10VDC / max. 4mA for the supply of the setpoint value poti
- separate supply
Specifications
