KEB COMBIVERT F5-H User Manual

Analog in- and outputs
© KEB, 2012-10 COMBIVERT F5-A, -E, -H Page 7.2 - 9
7
Input AN1 AN2 AN3 Value range Resoluti-
on
Default
value
Amplifica-
tion
An.05 An.15 An.25 -20,00...20,00 0,01 1,00
Offset X An.06 An.16 An.26 -100,0%...100,0% 0,1% 0,0%
Offset Y An.07 An.17 An.27 -100,0%...100,0% 0,1% 0,0%

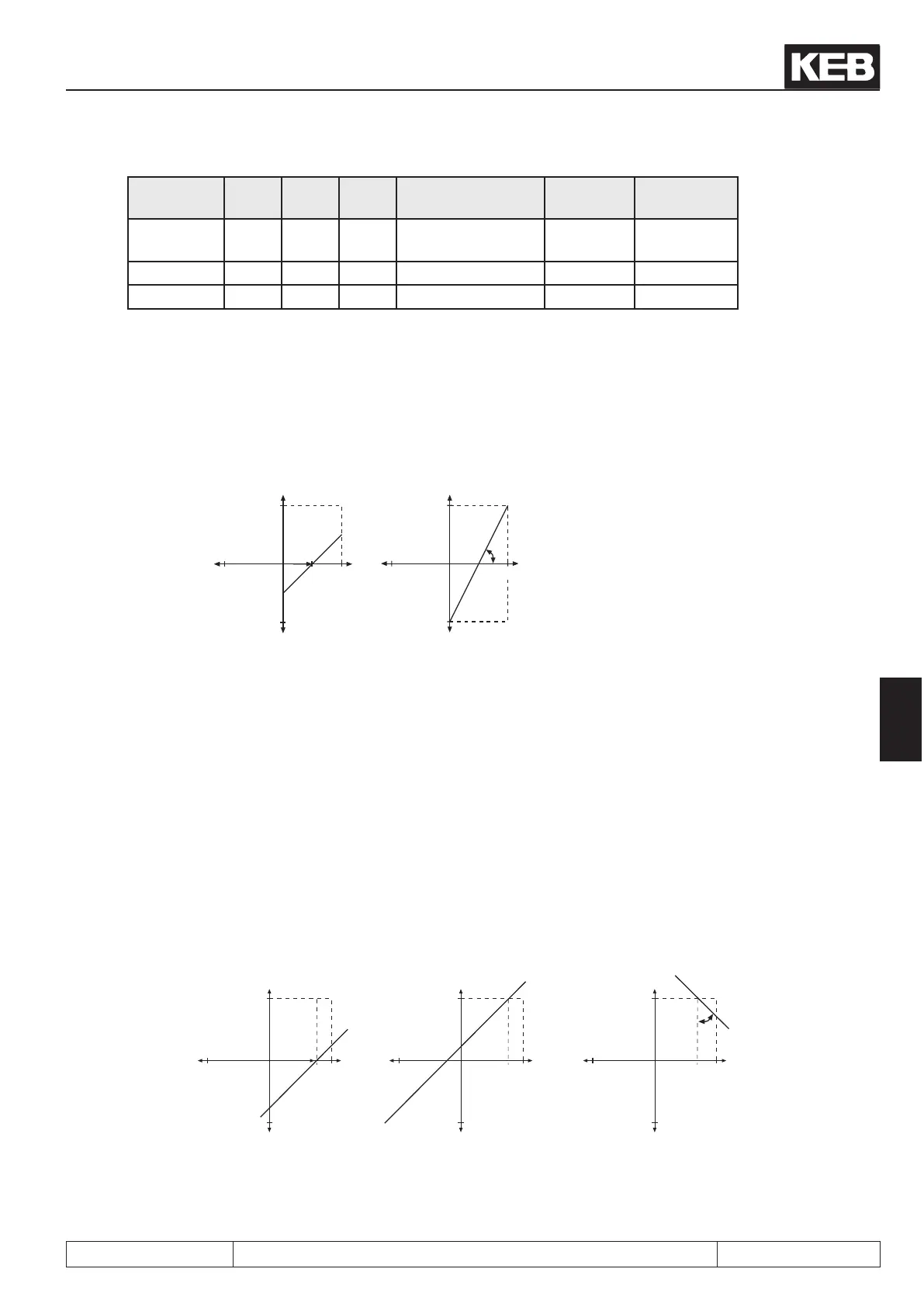

By means of some examples, we want to show the possibilities of the function. According to Fig. 7.2.6.b
1. adjustment of the X-Offset for input AN1 to 50 (%)
2. adjustment of the amplication to 2
Fig. 7.2.6.b X-Offset (An.06) =50%; amplication (An.5)=2.00
100%
100%
-100%
-100%
An.6
50%
100%
100%
-100%
-100%
An.5
1. 2.
With these settings the entire speed range can be driven with 0...10 V via input AN1. (rotation direction = ±ana-
log)
0% In corresponds to -100% Out
50% In corresponds to 0% Out
100% In corresponds to 100% Out
According to Fig. 7.2.6.c
1. adjustment of the X-Offset for the input AN1 to 75 (%)
2. adjustment of the Y-Offset for the input AN1 to 100 (%)
3. adjustment of the amplication to -1
Fig. 7.2.6.c X-Offset (An.06) =75%; Y-Offset (An.07) = 100%; Ampl. (An.5) = -1.00
100%
100%
-100%
-100%
An.5
An.7=100%
100%
-100%
-100%
An.6=75%
An.7=100%
100%
-100%
-100%
