KEB COMBIVERT F5-H User Manual

Product Overview
© KEB, 2012-10 COMBIVERT F5-A, -E, -H Page 2.1 - 5
2

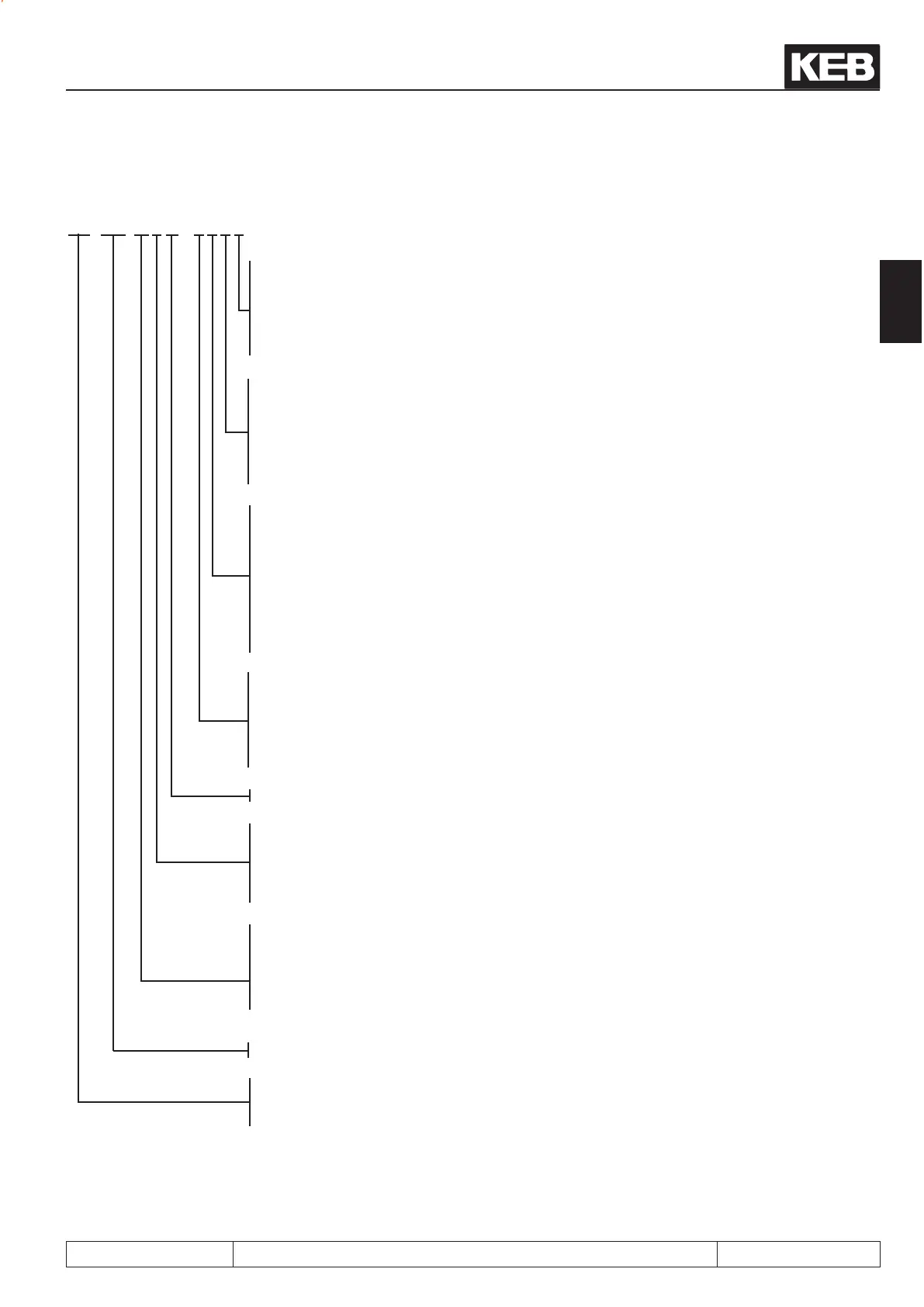

2.1.4 Type code
15.F5.A1E–35DA
at FI: Cooling A-Z: as digits, varnished at Servos: motor cooling
0: Standard A: 0 varnished (standard) 0: Self-cooling
1: Flat rear B: 1 varnished (Flat Rear) 1: Separate cooling
2: Water-cooled C: 2 varnished (water cooling)
3: Convection D: 3 varnished (convection)
4: Special fan E: 4 varnished (special fan)
Encoder interface type see control part
0: no interface 5: Resolver a. SSI A: Inc.-Input a. Initiator F: Hiperface a. IG-Outp.
1: Inc. input a. inc.-I/O 6: Hiperface a. SSI B: Resolver a. Initiator G: Inc.-Input a. Inc.-Inp.
2: Resolver a. Inc.-I/O 7: Inc.-Input a. Tacho C: Hiperface a. Initiator H: Resolver a. Inc.-Inp.
3: Hiperface a. Inc.-I/O 8: Resolver a. Tacho D: Inc.-Input a. Inc.-Outp. I: Hiperface a. Inc.-Inp.
4: Inc.-Input a. SSI 9: Hiperface a. Tacho E: Resolver a. Inc.-Outp.
at FI: Switching frequency / max. short time current / OC-tripping current
0: 2 kHz/125%/150% 5: 4 kHz/150%/180% A: 8 kHz/180%/216% F: 16 kHz/200%/240%
1: 4 kHz/125%/150% 6: 8 kHz/150%/180% B: 16 kHz/180%/216% G: 2 kHz/400%/480%
2: 8 kHz/125%/150% 7: 16 kHz/150%/180% C: 2 kHz/200%/240% H: 4 kHz/400%/480%
3: 16 kHz/125%/150% 8: 2 kHz/180%/216% D: 4 kHz/200%/240% I: 8 kHz/400%/480%
4: 2 kHz/150%/180% 9: 4 kHz/180%/216% E: 8 kHz/200%/240% K: 16 kHz/400%/480%
at servos: Motor speed
1: 1500 rpm 2: 2000 rpm 3: 3000 rpm 4: 4000 rpm 6: rpm
Inputidentication
0: 1ph 230V AC/DC 5: 400V DC A: 6ph 400V AC
1: 3ph 230V AC/DC 6: 1ph 230V AC z: 230V AC or AC/DC
2: 1/3ph 230V AC/DC 7: 3ph 230V AC Y: 400V AC or AC/DC
3: 3ph 400V AC/DC 8: 1/3ph 230V AC W: 230V DC
4: 230V DC 9: 3ph 400V AC V: 400V DC
Housing type A, B, D, E, G, H, P, R, U, W
Accessory
0: without 4: PFC
2)
integrated
1: GTR 7
1)
5: GTR 7
1)
, PFC
2)
integrated
2: integrated lter 6: integrated lter , integrated PFC 2)
3: GTR 7
1)
, integrated lter 7: GTR 7 1), integrated lter, integrated PFC 2)
Control type
A: Standard software for operation of asynchronous motors with vector control and V/f characteristic
control, synchronous motors with vector control
E: Software for the speed-controlled operation of synchronous motors without speed feedback
H: Software for the speed-controlled operation of asynchronous motors without speed feedback
Series F5
at FI in the 1. and 2. place digit: Inverter size
atservos:motoridentication/motordimensionwide
1) GTR 7: braking transistor
2) PFC: Power Factor Control
