KEB COMBIVERT F5-H User Manual

Page 7.3 - 38 COMBIVERT F5-A, -E, -H © KEB, 2012-10

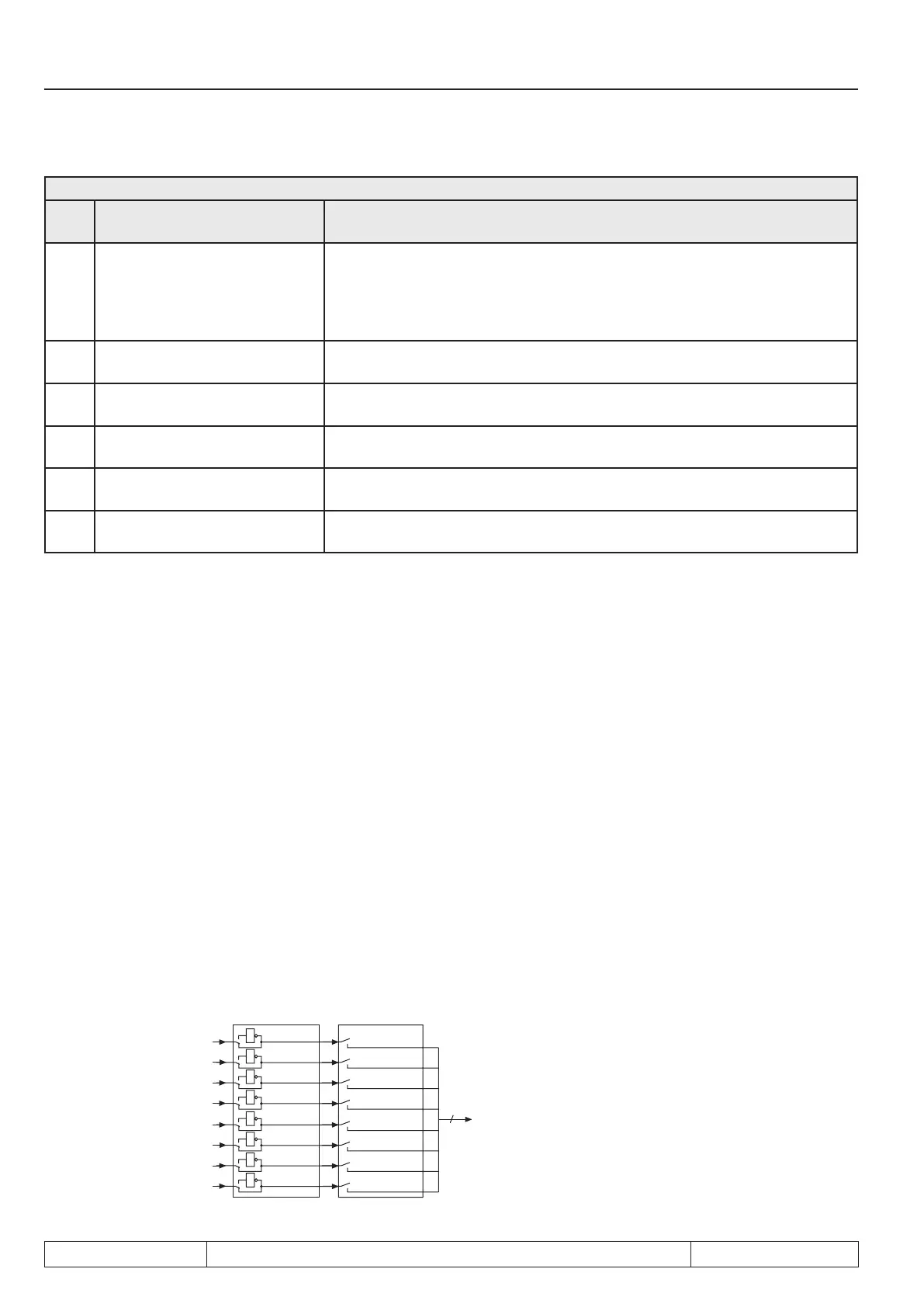

Digital in- and outputs
do.00...do.07: Switching conditions
Va-
lue
Function Description
95 Drive in target window
At active contouring drive generally the target position ru.61 is adjusted. The
switching condition is generally not fullled as long as the approach to refe-
rence point is not completed. It is fullled, if the contouring drive is active.
Otherwise, the actual position is always compared with the target position.
The condition is fullled, if the drive is in the target window PS.30.
96 Blockade active
The setpoint must be above the level (Pn.86). If the actual value is below the
level, a counter counts up until the time is up (Pn.87).
97 Warning encoder 1
The switching condition is the splitting of switching condition 91: Warning
encoder
98 Warning encoder 2
The switching condition is the splitting of switching condition 91: Warning
encoder
99 Warning ow control
The switching condition is set if there is an error in the ow control or if there
is no ow or constant ow for the adjusted deceleration time (Pn.94).
100
Combination of different condi-
tions
Combination condition; Error or OL-pre-warning or OH-pre-warning or (Sta-
tus POFF or PLS) and Fout=0Hz)
Speed change during scan time
————————————————————
60 x scan time (in seconds)
* acceleration =
Comparison level 0...7, LE.00...LE.07
These parameters dene the levels of the switching conditions.
Level 0 (LE.0) applies for switching condition 0; LE.1 for switching condition 1 ... and so forth.
Hysteresis 0...7, LE. 08...LE.15
The hysteresis
in reference to the adjusted values, dene parameters LE. 08...LE.15.
Hysteresis 0 (LE.08) applies for comparison level 0; LE.09 for comparison level 1 ... and so forth.
Frequency hysteresis LE.16
LE.16 denes the hysteresis for the status constant-run.
7.3.18 Inverting of switching conditions for ags0...7 (do.08...do.15)
Picture 7.3.15 Inverting and selecting the switching conditions
8
do.24
1
1
1
1
do.8...do.15
do.0
do.1
do.2
do.3
do.4
do.5
do.6
do.7
1
2
4
8
16
32
64
128
do.16...do.23
1
2
4
8
16
32
64
128
1
1
1
1
