Motor data and controller adjustments of the synchronous motor

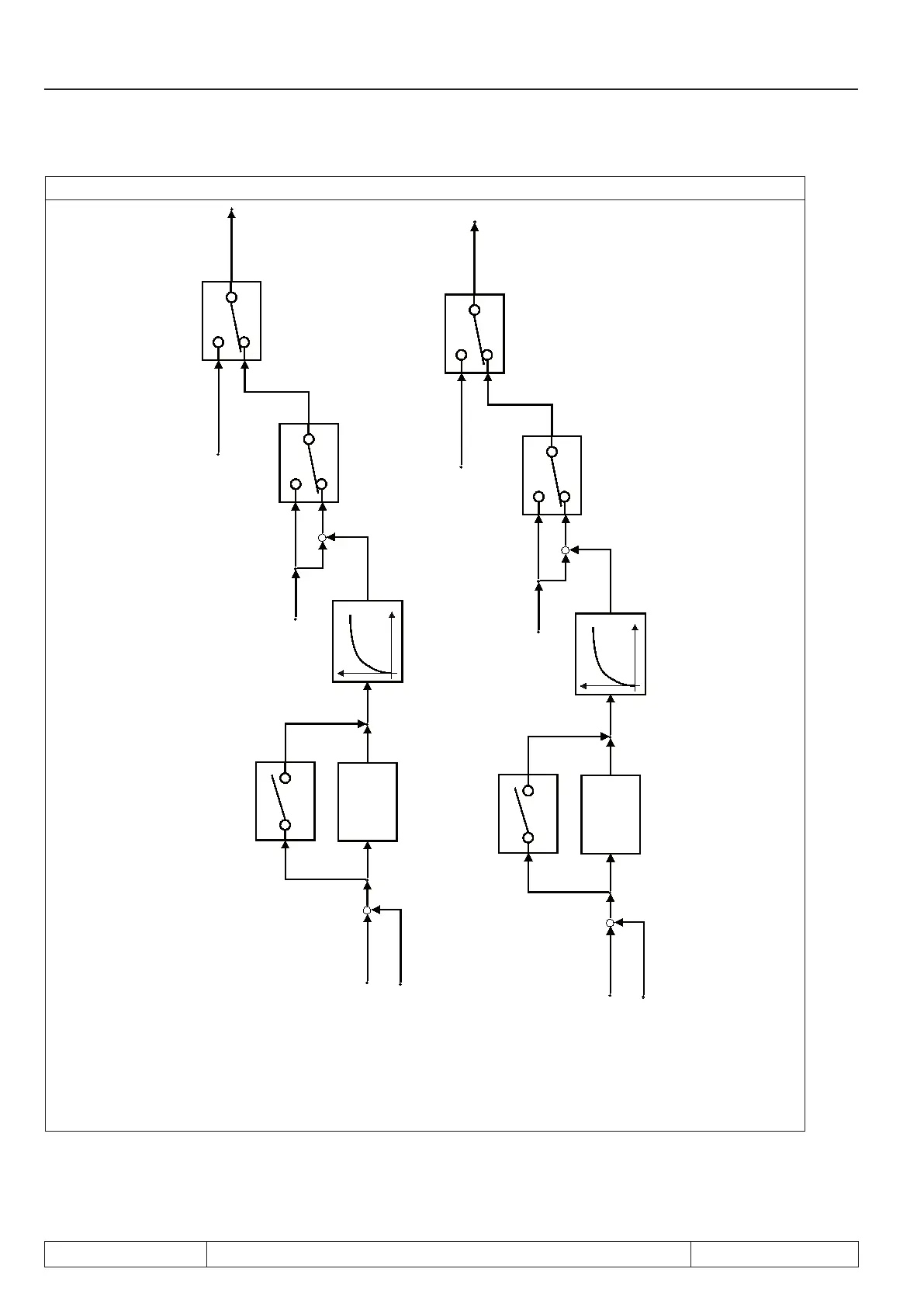

Figure 7.6.4.b SCL Current feedback
isq model
isq
nn.00 harmonic absorber
Band-stop
lter
fh.01 ... fh.09
nn.12 Pt1 deviation control time.
isq model
nn.00
Current controller adaption
isq
nn.00 current control
isq reg
isd modell
isd
nn.00 harmonic absorber
Band-stop
lter
fh.01 ... fh.09
nn.12 Pt1 deviation control time.
isd modell
nn.00 Current control- ler adaption
isd
nn.00 current control
isd reg
