4.2.1.2 Line terminal strip X1A
X1A Name Function Cross-section
Tightening
torque
L1, N
Mains
connection
1-phase
AWG
without
wire-end
ferrule
mm²
with
wire-end
ferrule
0.5…0.6 A
5…6 lb-inch
24...14 0.2…2.5
Stranded wire
L1, L2, L3
Mains
connection
3-phase
AWG
without
wire-end
ferrule
mm²
with
wire-end
ferrule
0.5…0.6 A
5…6 lb-inch
24...14 0,2…2,5
Stranded wire
PE,
Connection for
protective earth
Screw M4
for ring cable lug
1.3 Nm
11 lb inch

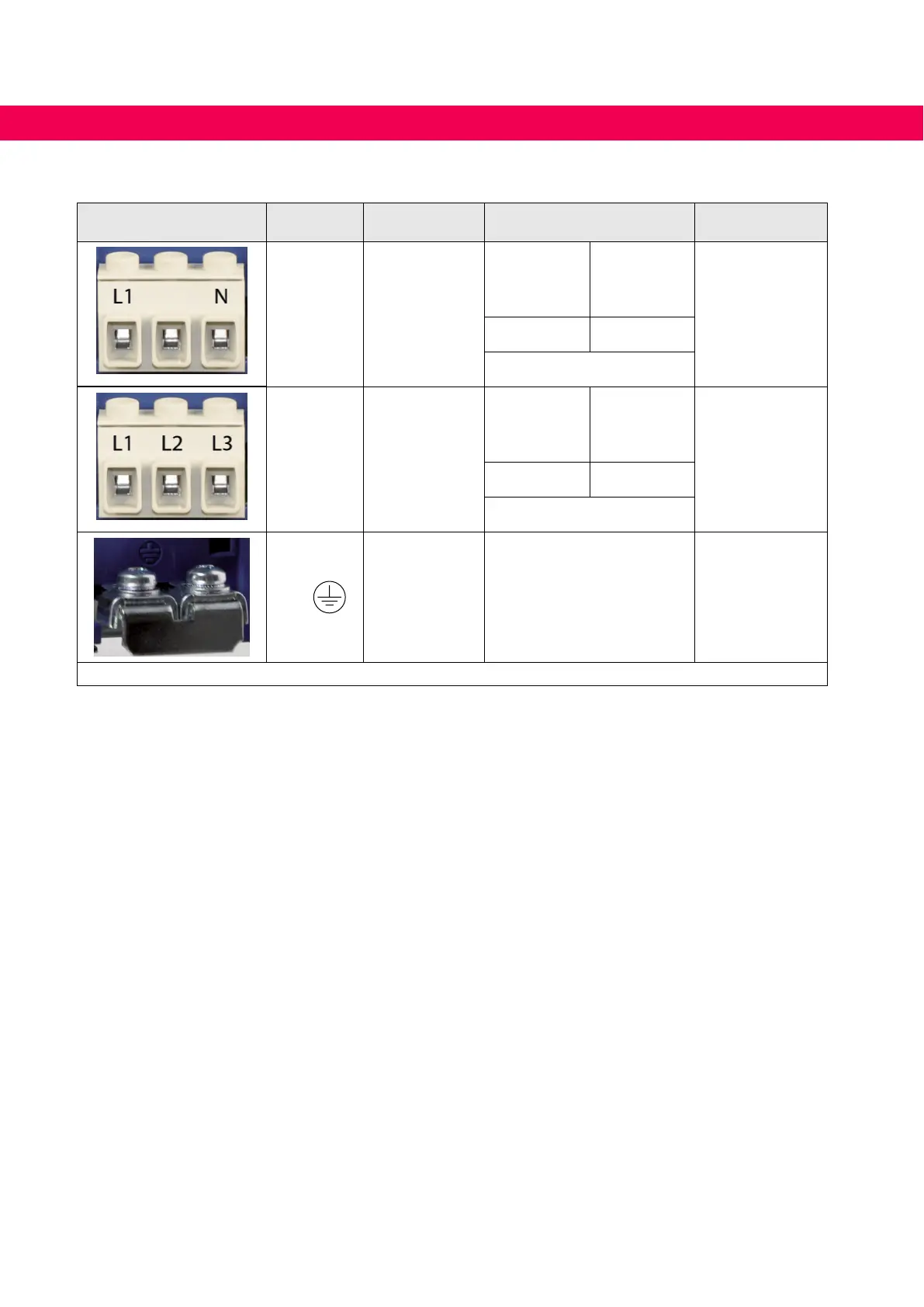

Figure 8: Line terminal strip X1A
36
CONNECTION OF THE POWER UNIT
