4.2.6.3 Use of the temperature detection
The temperature detection provides the user all possibilities within the resistance
rangespeciedin„Temperature detection terminals T1, T2“ . This can be:
Thermal contact (NC contact)
e.g. at the brake resistor
T1
T2
Temperature sensor (PTC)
e.g. at motor temperature detection
T1
T2
Mixed sensor chain
T1
T2

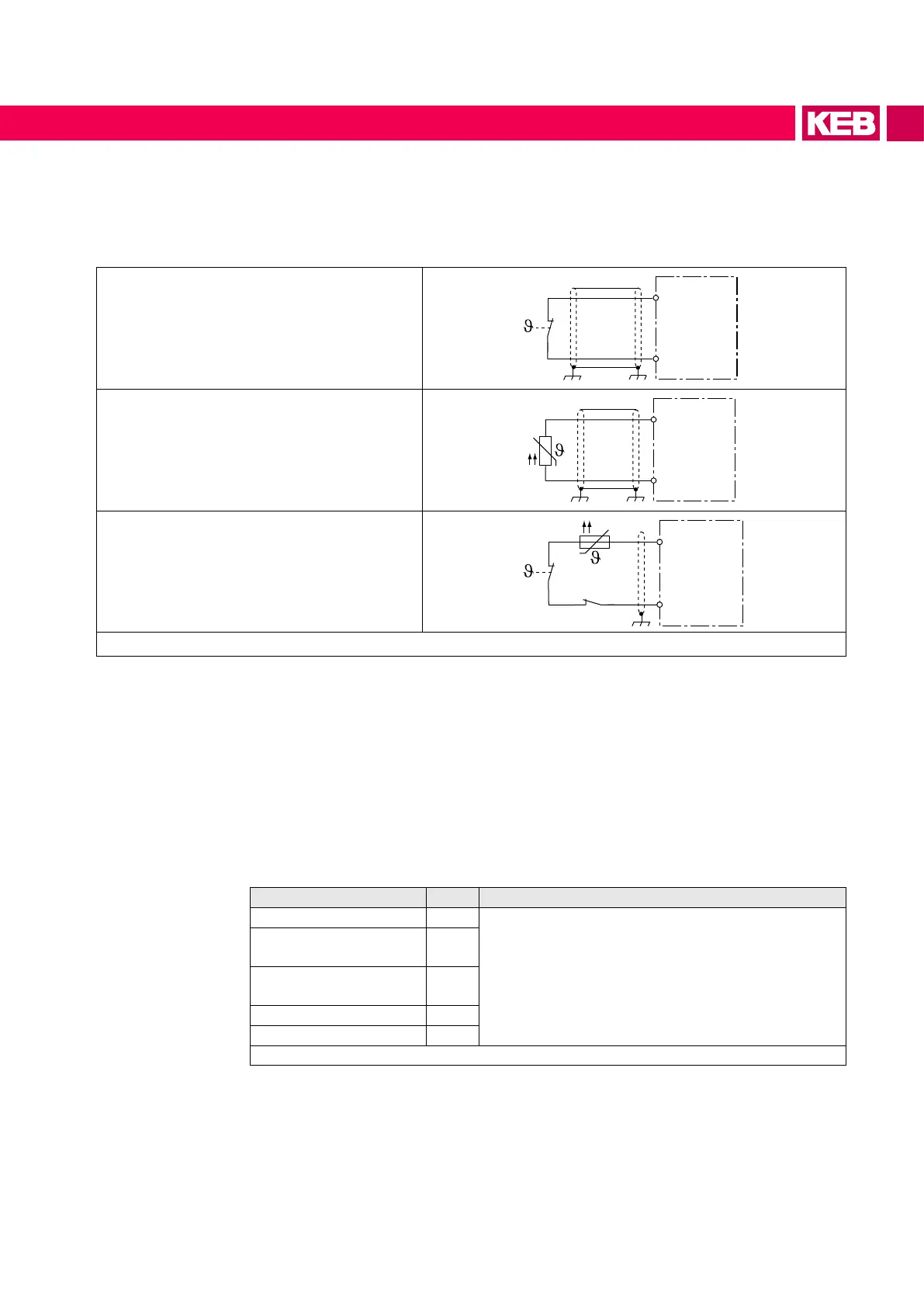

Figure 19: Wiring examples of the temperature input
4.2.7 Final test information
Final test information of the machines/systems which are provided with drive converters
according to EN 60204-1of 2007.
4.3 Calculation of the motor voltage
The motor voltage for dimensioning of the drive is depending on the used components.
The mains voltage reduces according to the following table:
Components % Example
Mains choke Uk 4
Closed loop drive converter with mains and motor
choke at non-rigid supply system:
400 V mains voltage - 15 % = 340 V motor voltage
Drive converter
open-loop
4
Drive converter
closed-loop
8
Motor choke Uk 1
Non-rigid supply system 2
Table 9: Calculation of the motor voltage
43
CALCULATION OF THE MOTOR VOLTAGE
