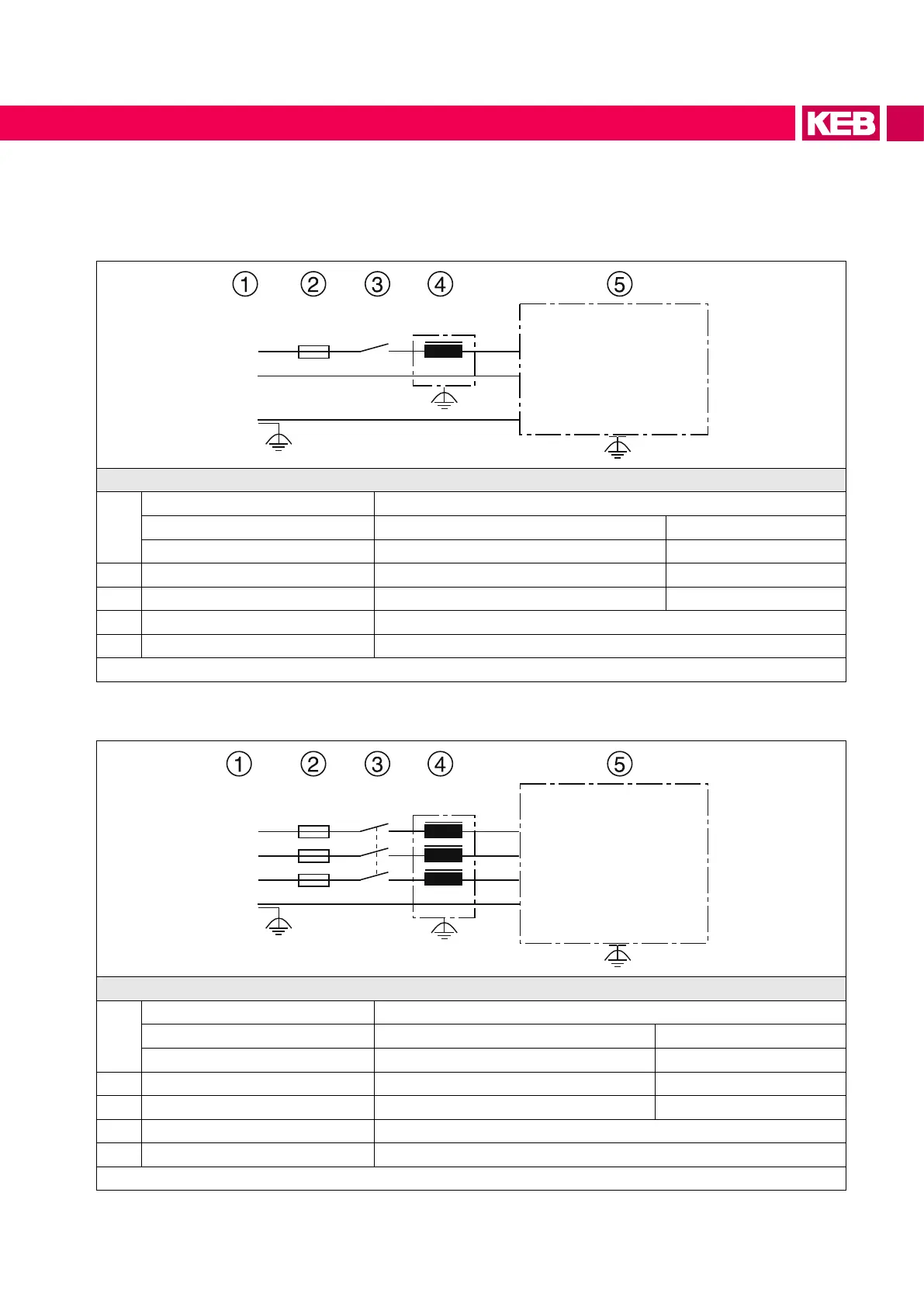

4.2.2 AC connection
4.2.2.1 AC supply 230V / 1-phase
L1
N
L1
U
V
W
PE
N
T1 T2
PE PE
Legend
1
Mains voltage 1-phase 230 V AC
Mains form TN, TT IT
Personal protection RCMA with separator or RCD type B Insulation monitor
2 Mains fuses Type gG or MCCB
3 Mains contactor
4 Mains choke 07 or 09Z1B02-1000
5 KEB COMBIVERT G6
Figure 9: Connection of the mains supply 230 VAC / 1-phase
4.2.2.2 AC supply 400V / 3-phase
L1
L2
L3
PE
L1
L2
L3
U
V
W
PE
PE
T1 T2
Legend
1
Mains voltage 3-phase 400 V AC
Mains form TN, TT IT
Personal protection RCMA with separator or RCD type B Insulation monitor
2 Mains fuses Type gG or MCCB
3 Mains contactor
4 Mains choke 07, 09 or 10Z1B04-1000
5 KEB COMBIVERT G6
Figure 10: Connection of the mains supply 400 VAC / 3-phase
37
CONNECTION OF THE POWER UNIT
