KEF LSX User Manual

11
Table of ContentsSetting Up the LSXUsing the KEF Control AppPlayback and StreamingFAQ and Troubleshooting
4. In the Box and Unpacking
NOTICE!
Risk of damage!
Using a sharp knife or other pointed object to open the packaging may damage the
speakers.
• Be very careful when opening the packaging. Follow the instructions on the packaging
to lift up the speakers from the sides to avoid damaging the Uni-Q drivers (speaker
cones).

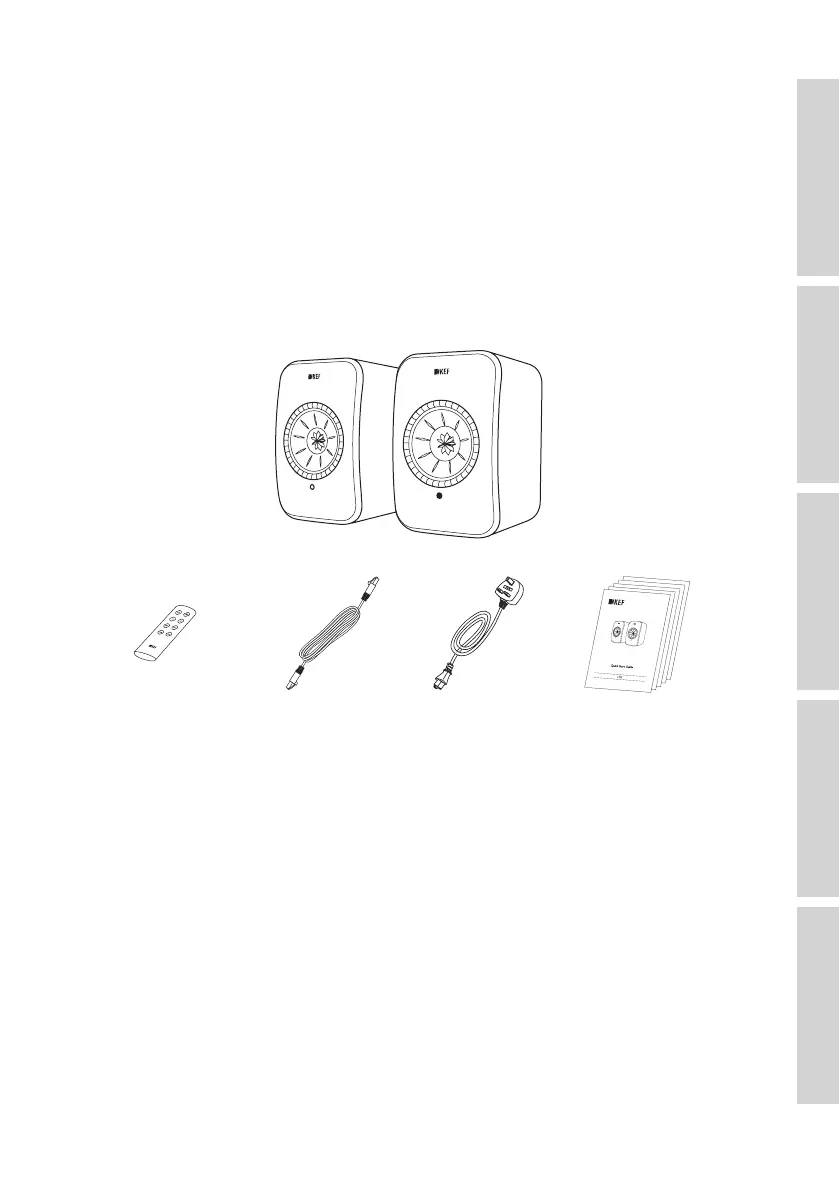

×2
×1 ×1 ×2 ×5
1. Take the speakers out of the packaging.
2. Check to make sure that all parts are included, including:
• Speaker ×2 (Master Speaker ×1, Slave Speaker ×1)
• Remote control* ×1
• Inter-speaker cable ×1 (length: 3 m)
• Power cable ×2 (length: 2 m, with country-specific power plugs)
• Printed materials: Quick start guide, important safety information, specifications,
warranty information, and maintenance guide for Kvadrat fabrics
3. Check whether the speakers or individual parts are damaged. If this is the case, do not
use the speakers. Contact your retailer via the contact information indicated on the
warranty information.
*Remove the insulation tab from the battery compartment before use.

KEF LSX Specifications

General

Frequency Response	54Hz - 28kHz (±3dB)
Frequency Range	49Hz - 47kHz (-6dB)
Max. SPL	102dB
Outputs	Subwoofer Output
Design	2-way bass reflex
Driver	Uni-Q driver array: HF: 19mm (0.75in.) aluminium dome, LF/MF: 115mm (4.5in.) magnesium/aluminium alloy cone
Amplifier Power	LF: 70W, HF: 30W
Wireless Features	Wi-Fi, Bluetooth 4.2
Streaming Services	Spotify Connect, Tidal
Inputs	TOSLINK Optical, 3.5mm Auxiliary
Resolution	24-bit/96kHz
Dimensions	240 x 155 x 180 mm (H x W x D)
Weight	3.6kg per speaker
Finish Options	Black, Blue, White
