KEF LSX User Manual

19
Table of ContentsSetting Up the LSXUsing the KEF Control AppPlayback and StreamingFAQ and Troubleshooting

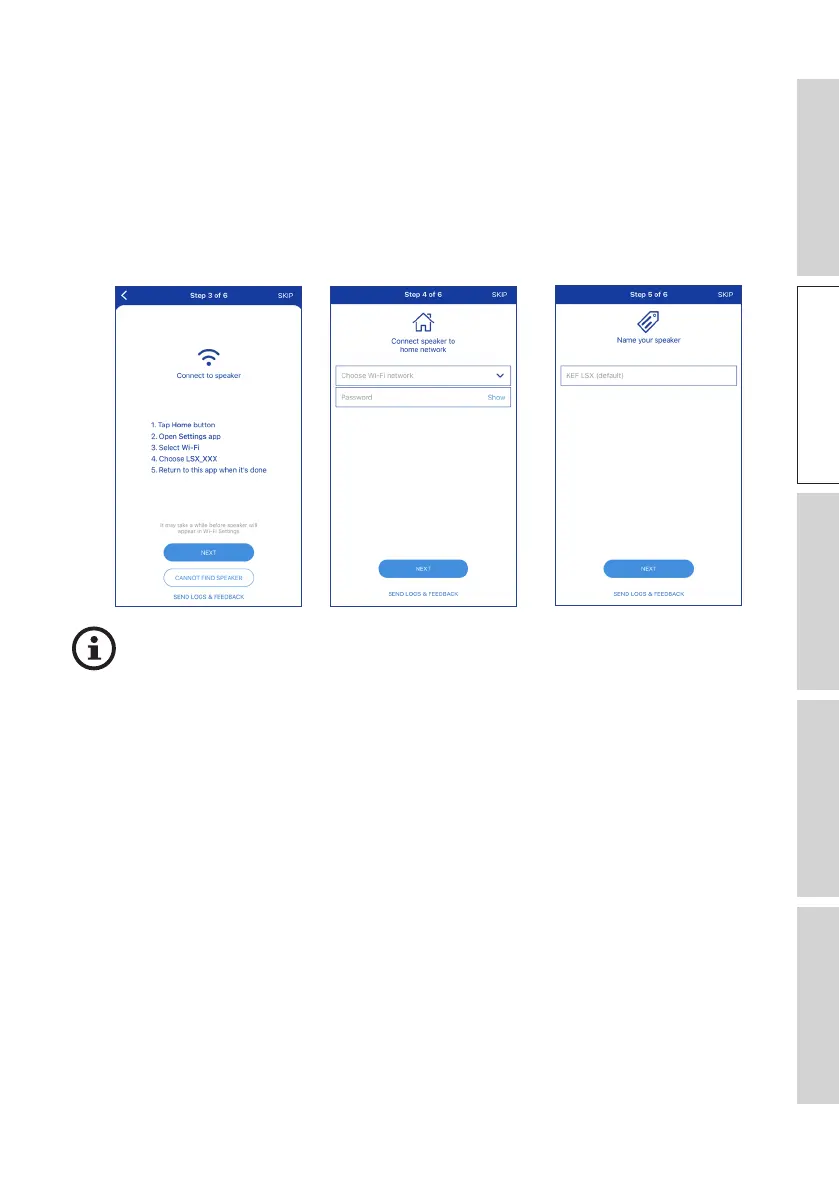

8. Return to the KEF Control app and then tap “Next”.
9. Select your Wi-Fi network from the list, enter the password of your Wi-Fi network
and then tap “Next”.
10. Create a name for the speakers (optional) and then tap “Next”.
The onboarding process will be automatically completed. The LED indicator on the
Master Speaker will light solid white when the connection is successful. The Slave
Speaker will be automatically and wirelessly connected to the Master Speaker.
8. 9. 10.
The above process is slightly different between iOS and Android devices. In this
case, follow the instructions on the screen to complete the connection.

KEF LSX Specifications

General

Frequency Response	54Hz - 28kHz (±3dB)
Frequency Range	49Hz - 47kHz (-6dB)
Max. SPL	102dB
Outputs	Subwoofer Output
Design	2-way bass reflex
Driver	Uni-Q driver array: HF: 19mm (0.75in.) aluminium dome, LF/MF: 115mm (4.5in.) magnesium/aluminium alloy cone
Amplifier Power	LF: 70W, HF: 30W
Wireless Features	Wi-Fi, Bluetooth 4.2
Streaming Services	Spotify Connect, Tidal
Inputs	TOSLINK Optical, 3.5mm Auxiliary
Resolution	24-bit/96kHz
Dimensions	240 x 155 x 180 mm (H x W x D)
Weight	3.6kg per speaker
Finish Options	Black, Blue, White
