Keithley 2000 Calibration Manual

Table 1-6
Limits for resistance verification
Ω Range
Nominal
applied
resistance
Nominal reading limits
(1 year, 18°C-28°C)
Recalculated limits
Low limit High limit
100 Ω
1k Ω
10k Ω
100k Ω
1M Ω
10M Ω
100M Ω
100 Ω
1k Ω
10k Ω
100k Ω
1M Ω
10M Ω
100M Ω
99.9860 to 100.0140Ω
0.999890 to 1.000110kΩ
9.99890 to 10.00110kΩ
99.9890 to 100.0110kΩ
0.999890 to 1.000110MΩ
9.99590 to 10.00410MΩ
99.8470 to 100.1530MΩ
___________
___________
___________
___________
___________
___________
___________
___________
___________
___________
___________
___________
___________
___________
2000
MULTIMETER
!
R
Model 2000
5700A Calibrator (Output 2-wire Resistance)
Output
HI
Input
LO
Output
LO
Note : Use shielded cables to minimize noise.
Disable calibrator external sense mode.
Sense HI
Sense LO
Input
HI
Performance Verification 1-13

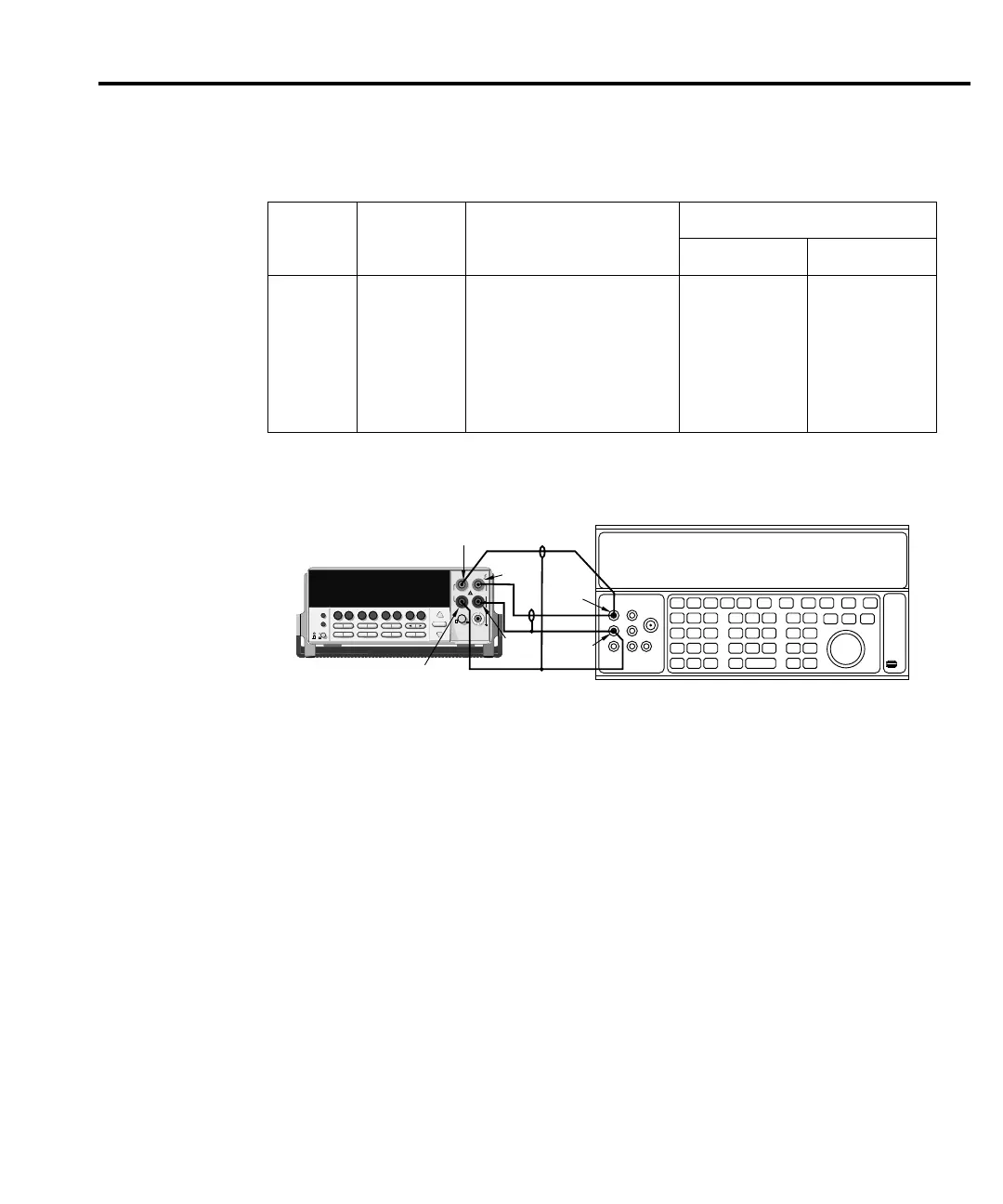

Figure 1-6
Connections for
resistance verifi-
cation (100M
Ω
range)

Keithley 2000 Specifications

General

Digits	6.5
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Connectivity	IEEE-488 (GPIB)
Display Type	VFD
