1-6 Performance Verification

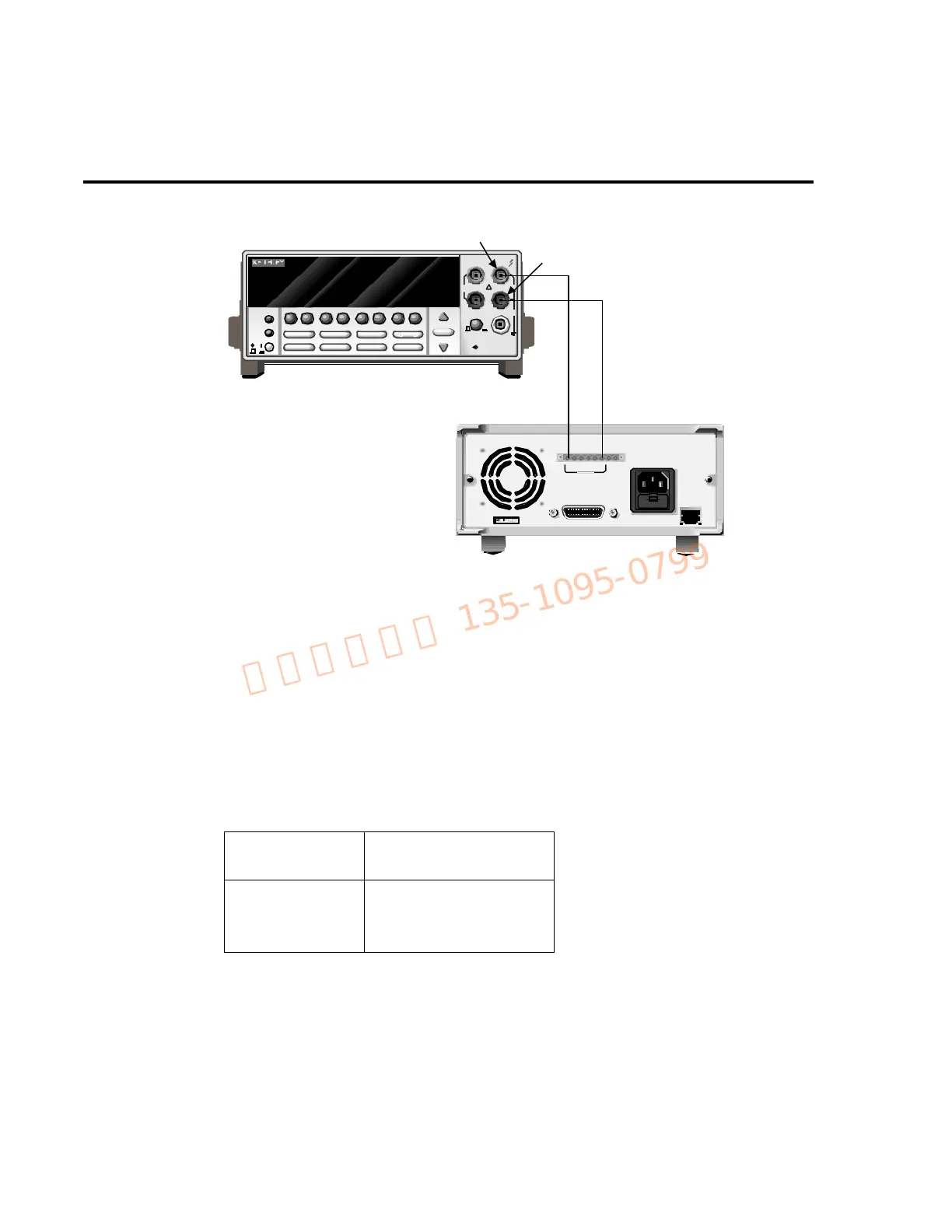

Figure 1-2

Connections for voltage verification tests

2. Select the multimeter DC volts measuring function, and enable auto-ranging.

3. Make sure the Model 2303 output is turned on.

4. Verify output voltage accuracy for each of the voltages listed in Table 1-2. For each test

point:

• Set the Model 2303 output voltage to the indicated value. When setting the voltage,

set the compliance current to 3A.

• Allow the reading to settle.

• Verify that the multimeter reading is within the limits given in the table.

Table 1-2

Output voltage accuracy limits

Model 2303 output

voltage setting

Output voltage limits

(1 Year, 18°C-28°C)

5.00V 4.9875 to 5.0125V

10.00V 9.985 to 10.015V

15.00V 14.9825 to 15.0175V

POWER

DISPLAY

2001 MULTIMETER

DCV ACV DCI ACI Ω2 Ω4

FREQ TEMP

REL TRIG

INFO LOCAL EXIT ENTER

RANGE

F R

500V

PEAK

FRONT/REAR

2A 250V

AMPS

CAL

STORE RECALL

CHAN SCAN

FILTER MATH

CONFIGMENU

INPUT

SENSE

Ω 4 WIRE

INPUTS

350V

PEAK

1100V

PEAK

AUTO

W ARNING:NO INTERNAL OPERAT OR SERVICABLE PAR TS,SERVICE BY QU ALIFIED PERSONNEL ONLY.WARNING:NO INTERNAL OPERAT OR SERVICABLE PARTS,SER VICE BY QU ALIFIED PERSONNEL ONL Y.

CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.

MADE IN

U.S.A.

LINE RATING

100-240VAC

50, 60 HZ

185VA MAX

LINE FUSE

SLOWBLOW

2.5A, 250V

IEEE-488

(CHANGE IEEE ADDRESS

WITH FR ONT PANEL MENU)
