Performance Verification 1-13

Table 1-7

Model 2303-PJ 500mA range current readback accuracy limits

Digitalvoltmeterinputaccuracy

Follow the steps below to verify that Model 2303, 2303B, and 2303-PJ digital voltmeter input

accuracy is within speciﬁed limits. The test involves setting the voltage applied to the DVM

input to accurate values and then verifying that the Model 2303 digital voltmeter input readings

are within required limits.

1. With the power off, connect the Model 2303 DVM IN terminals to OUTPUT SOURCE

terminals and the digital multimeter, as shown in Figure 1-6. Be sure to observe proper

polarity (DVM IN + to SOURCE + and DMM INPUT HI; DVM IN - to SOURCE - and

DMM INPUT LO).

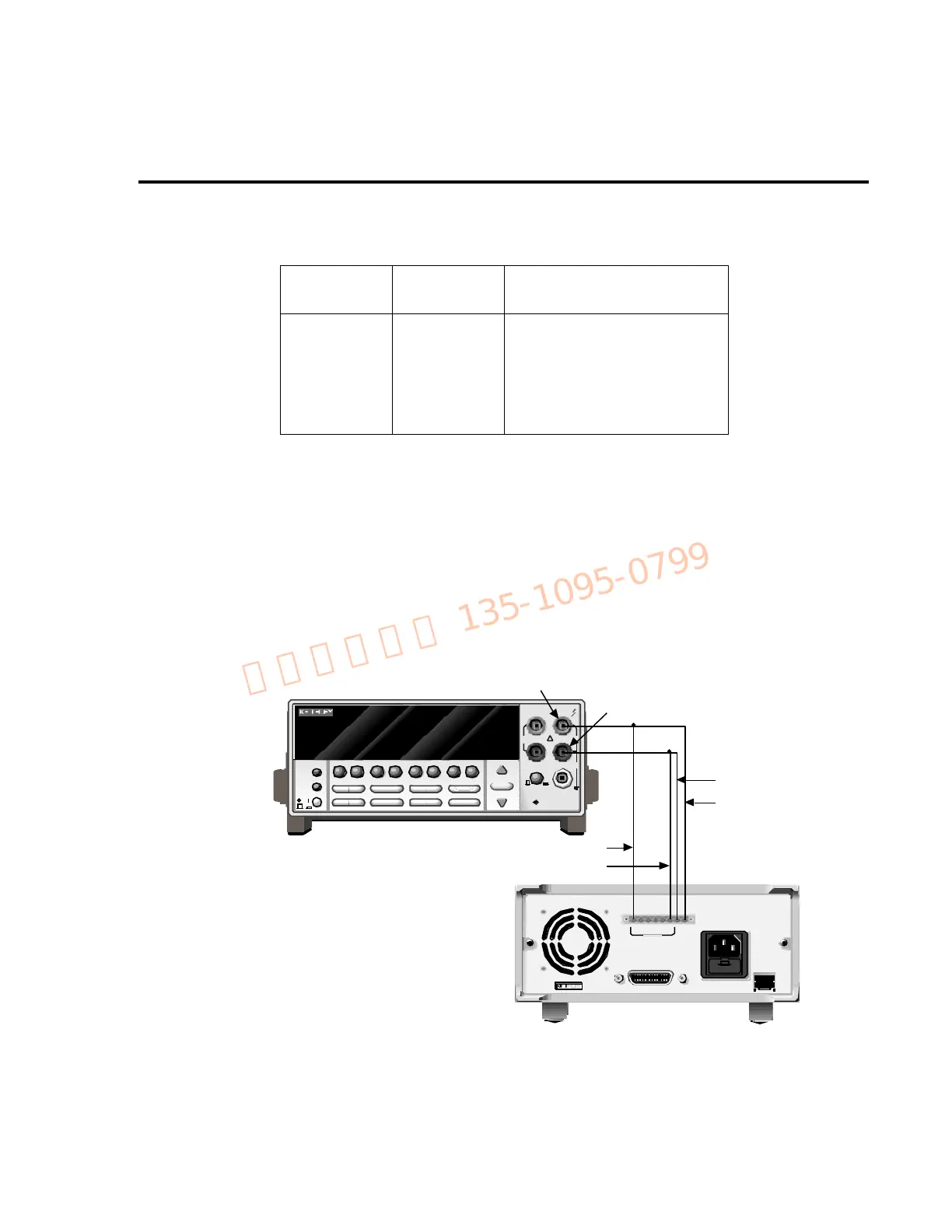

Figure 1-6

Connections for DVM accuracy verification

Nominal output

voltage

Model 2303-PJ

output current*

Current readback limits (1 Year,

18˚C-28˚C)

3V 100.00mA 99.76 to 100.24mA

6V 200.00mA 199.56 to 200.44mA

9V 300.00mA 299.36 to 300.64mA

12V 400.00mA 399.16 to 400.84mA

14.7V 490.00mA 488.98 to 491.02mA

POWER

DISPLAY

2001 MULTIMETER

DCV ACV DCI ACI Ω2 Ω4

FREQ TEMP

REL TRIG

INFO LOCAL EXIT ENTER

RANGE

F R

500V

PEAK

FRONT/REAR

2A 250V

AMPS

CAL

STORE RECALL

CHAN SCAN

FILTER MATH

CONFIGMENU

INPUT

SENSE

Ω 4 WIRE

INPUTS

350V

PEAK

1100V

PEAK

AUTO

W ARNING:NO INTERNAL OPERAT OR SERVICABLE PAR TS,SERVICE BY QU ALIFIED PERSONNEL ONLY.WARNING:NO INTERNAL OPERAT OR SERVICABLE PARTS,SER VICE BY QU ALIFIED PERSONNEL ONL Y.

CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.

MADE IN

U.S.A.

LINE RATING

100-240VAC

50, 60 HZ

185VA MAX

LINE FUSE

SLOWBLOW

2.5A, 250V

IEEE-488

(CHANGE IEEE ADDRESS

WITH FR ONT PANEL MENU)
