1-10 Performance Verification

Table 1-5

5A range current readback accuracy limits

* As determined from digital multimeter and 1Ω resistor. See procedure.

Models2303and2303B5mArangereadbackaccuracy

The following test applies only to the Models 2303 and 2303B:

1. With the power off, connect the digital multimeter and characterized 3kΩ resistor to the

Model 2303 or 2303B OUTPUT SOURCE terminals, as shown in Figure 1-4. Be sure

to observe proper polarity and connections (3kΩ resistor between SOURCE + and DMM

INPUT HI; SOURCE - to DMM INPUT LO).

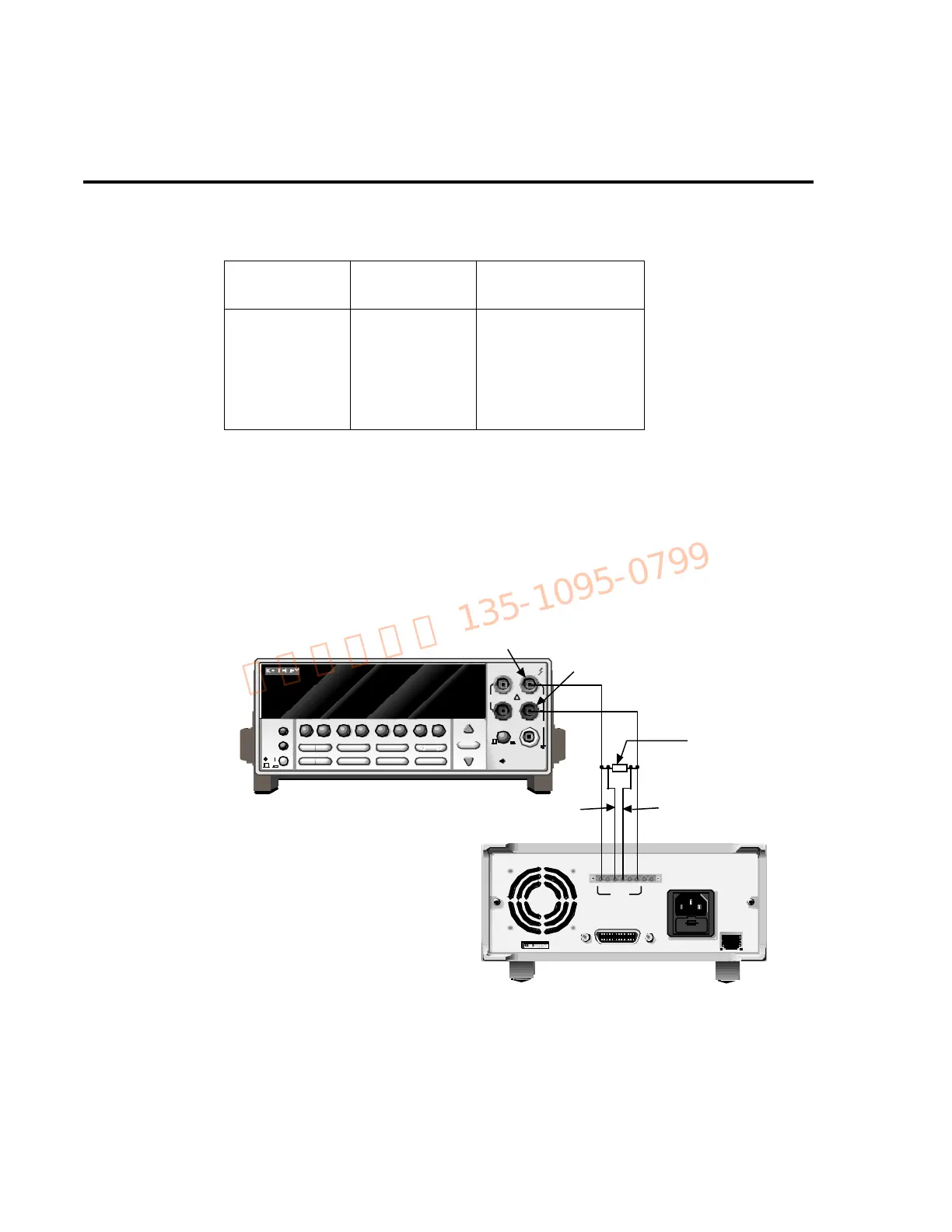

Figure 1-4

Connections for Model 2303 and 2303B 5mA current verification tests

Nominal output

Voltage

Model 2303

Output current*

Current readback limits

(1 Year, 18°C-28°C)

1V 1.000A 0.9976 to 1.0024A

2V 2.000A 1.9956 to 2.0044A

3V 3.000A 2.9936 to 3.0064A

4V 4.000A 3.9916 to 4.0084A

4.9V 4.900A 4.8898 to 4.9102A
