Keithley 6517 - Table; Limits for Coulombs Verification

Performance Verification
1-10
Table 1-8
Limits for coulombs verification
6517A
range
Standard
capacitor
1
Nominal
voltage
value
2
Charge
Actual
voltage
3
Reading limits
(1 year, 18° to 28°C)
2nC
20nC
200nC
2µC
1nF
1nF
1nF
100nF
1.90000V
19.0000V
190.000V
19.0000V
1.9nC
19nC
190nC
1.9µC
_________ V
_________ V
_________ V
_________ V
1.89235 to 1.90765nC
18.9235 to 19.0765nC
189.235 to 190.765nC
1.89235 to 1.90765µC
1
Nominal value of capacitor in calibration unit.
2
DC voltage applied by calibrator (nominal value)
3
Actual voltage: V=Q/C.

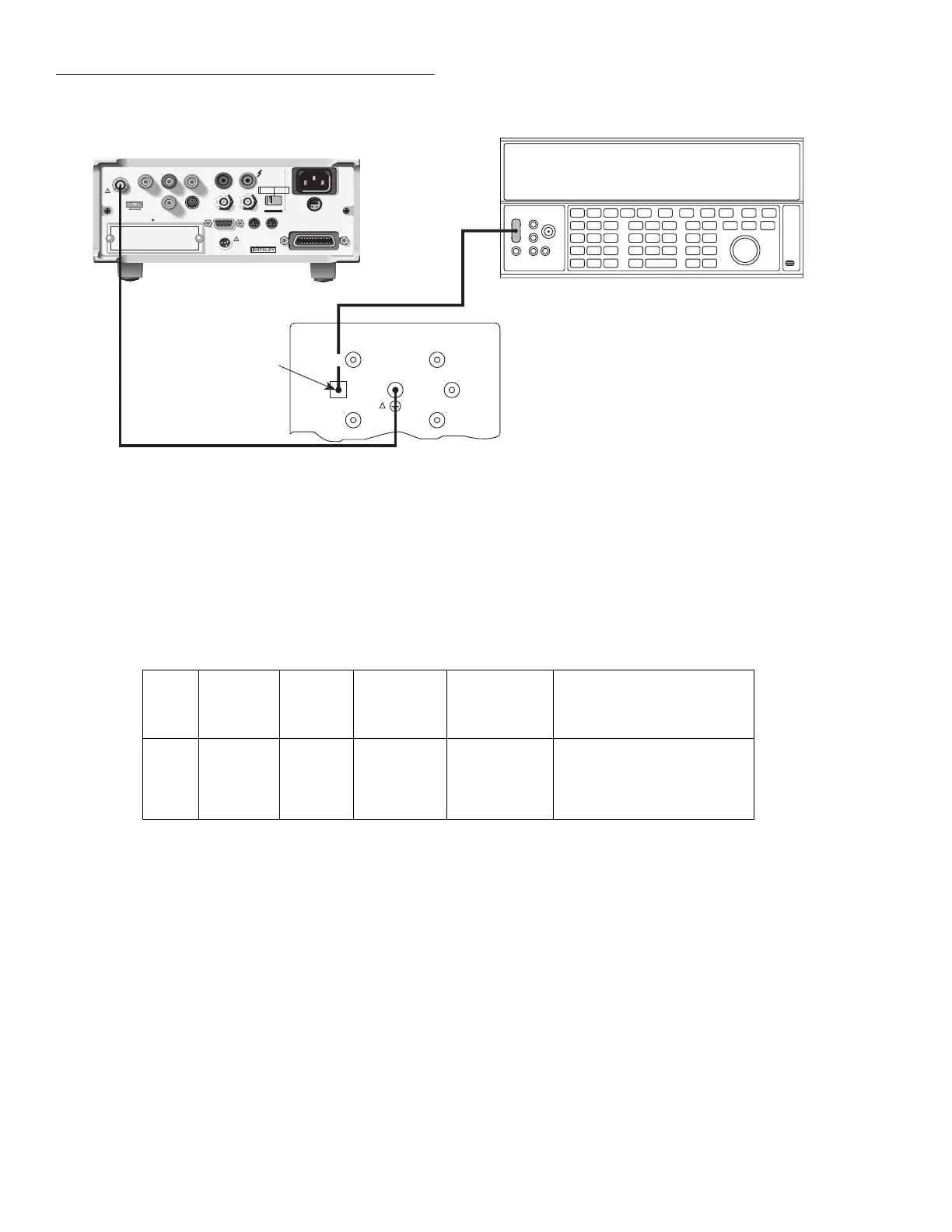

Figure 1-4
Connections for coulombs verification
1nF
100nF
10GΩ
1GΩ
100MΩ
Model 5156 Electrometer Calibration Standard
