4. USING THE MACHINE

Welding applications vary, so the equipment must adapt. KempArc Pulse features K 60

interface, a clear and logical LCD menu display. Arc Wizard menu allows the operator to rene,

adapt and manage the arc process and system function before, during and after welding.

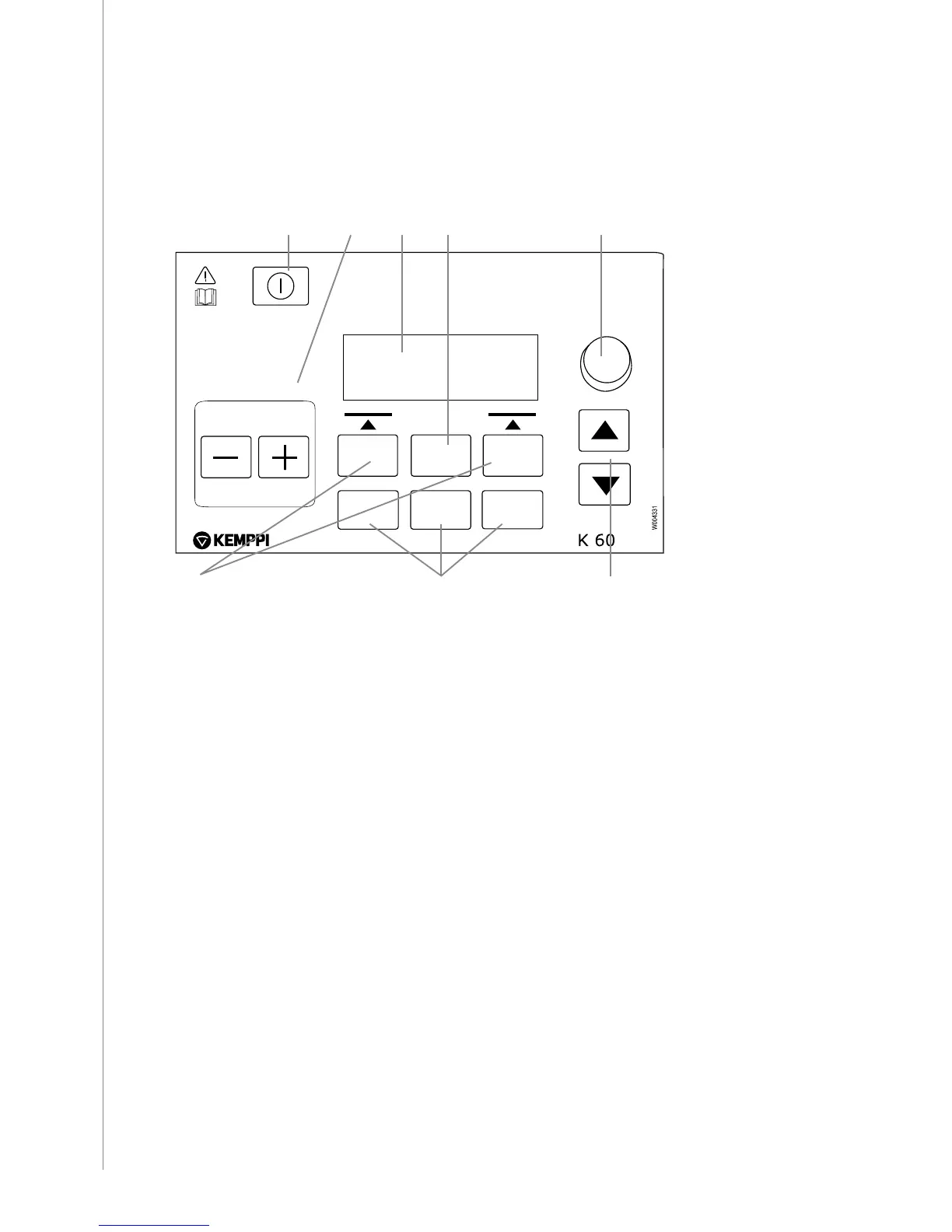

4.1 SETUP PANEL K 60  LAYOUT

CHANNEL

F1 F2 F3

CHANNEL

INFO

WF #

1. 4.

5.6.

2. 7. 3.

4.2 SETUP PANEL K 60

The following information details K 60 panel operation and set-up.

Introduction to K 60 button functions

1. Switch K 60 ON/OFF by long pressing on this button (approximately 5 seconds). Also returns

channel information display by short press.

NOTE! For true on/o switching of the mains power, use the main switch I/O - On/O located on

the front of the power source.

2. Welding channel (job) selection. There are 100 memory channels available. If the channel is

empty you can create a new (job) channel by pressing the key below the LCD screen text

stating NEW.

3. MENU button for entering the main menu list. Proceed following the LCD screen menu

guidance.

4. Potentiometer for making adjustments to selected values

5. Up/down arrow keys for moving vertically in the menu structure

6. Pre-programmed menu shortcut keys

• F1 for displaying channel information

• F3 for selecting another parallel connected wire feeder sub system as a setup target.

7. LCD menu display

8. Soft key buttons. Function according to the menu location/task.
