2.5 CONNECTING CABLES
NOTE! Always check before use that the interconnecting cable, shielding gas hose, earth return
lead/clamp, and mains cable is in a serviceable condition. Ensure that connectors are correctly
fastened. Lose connectors can impair welding performance and damage connectors.

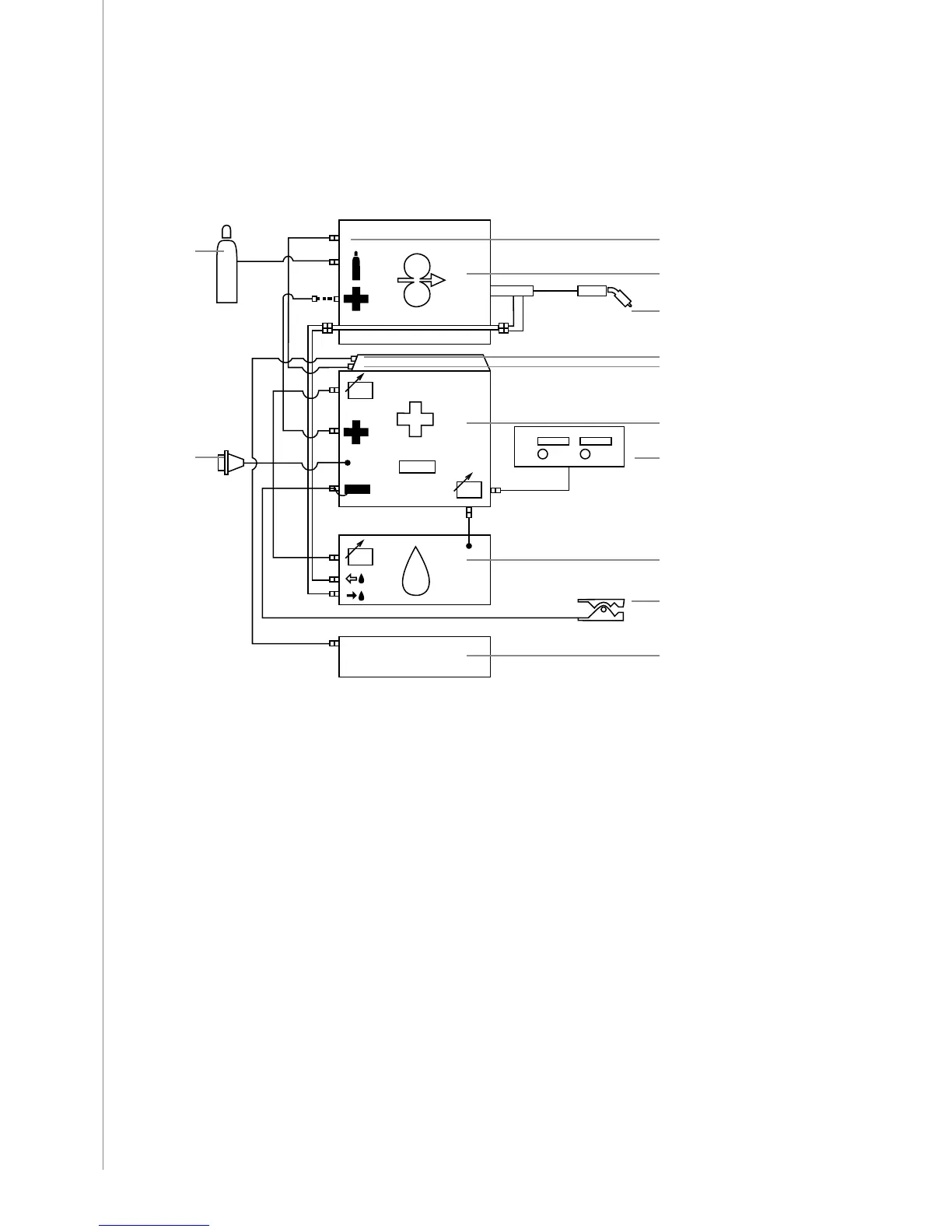

2.5.1 Water cooled system: KempArc Pulse + DT 400 + KempCool 10
1.
9.
9.
10.
11.
5.
7.
2.
3.
4.
8.
6.
1. DT 400 wire feed unit
2. KempArc Pulse power source
3. KempCool water cooler and power connection
4. Robot controller
5. Gas supply
6. Liquid cooled welding Gun
7. Power cable
8. Earth return lead and clamp
9. Wire feeder connection
10. Robot control connection
11. KF 62 remote panel (optional)
6
KempArc Pulse 350, 450 / © Kemppi Oy / 1044
