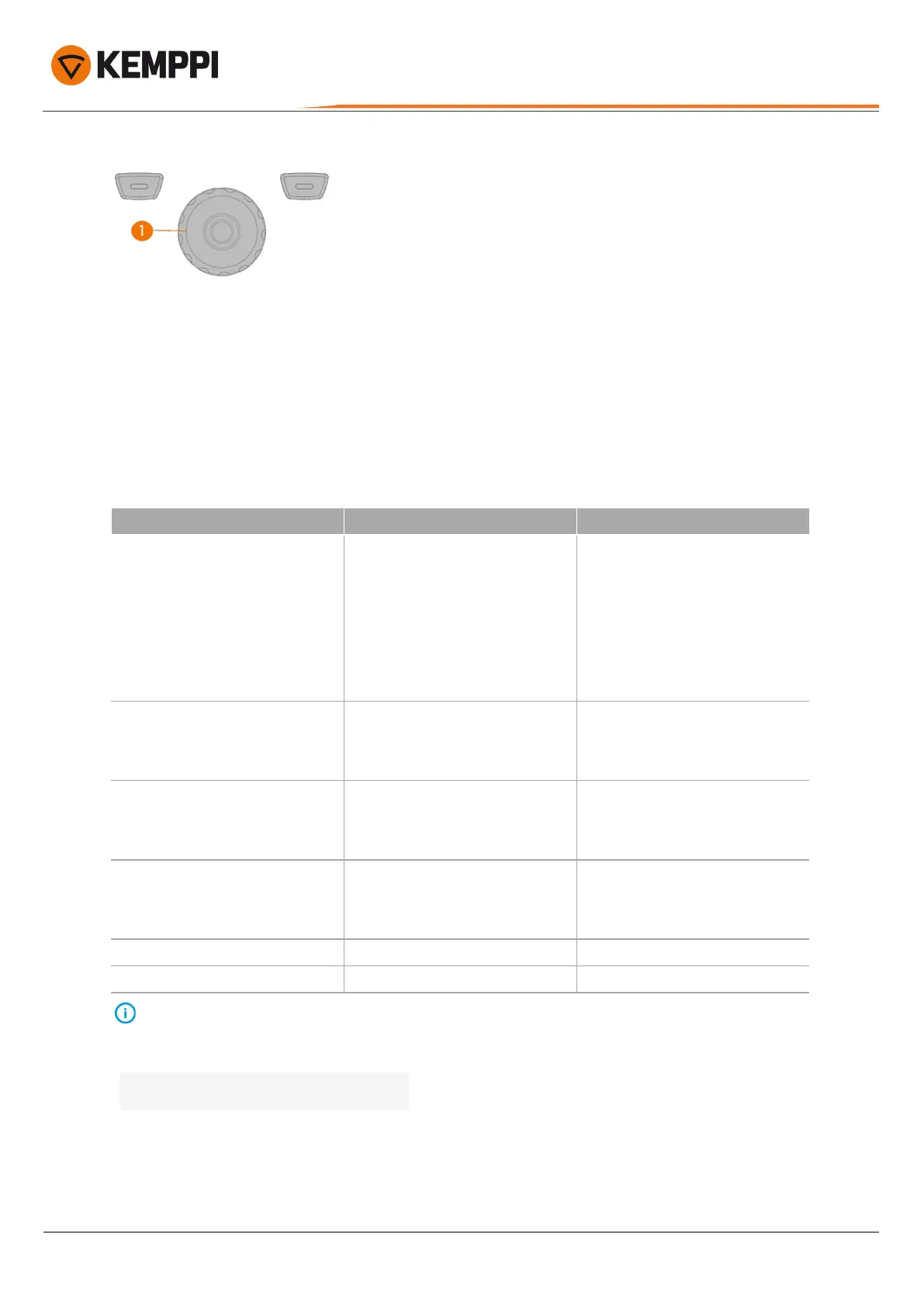

To adjust parameters:
1. Go to the Pulse view.
2. Turn the control knob (1) to browse through the parameters.
3. Select a parameter for adjustment by pressing the control knob button (1).
4. Adjust the parameter by turning the control knob (1).
5. Close the parameter setting by pressing the control knob button (1).
Adjustable parameters:
Parameter Value Note
Pulse mode
OFF / Auto / Manual / Double In DC current mode:
- When OFF is selected, pulse settings are
not visible.
- When Auto is selected, pulse settings
are visible but not adjustable.
- When Manual is selected, pulse settings
are visible and adjustable.
In AC current mode, only OFF or Manual
can be selected.
Average current
Min =Current limit min
Max = Machine-specific
These values depend also on other pulse
parameters. Maximum average current is
also limited by the machine spe-
cifications.
Pulse frequency
0.2 Hz ... 10 Hz, step 0.1 Hz,
10 Hz ... 300 Hz, step 1 Hz
When ACcurrent mode is used, the max-
imum pulse frequency is 20 Hz.
When double pulse mode is used, the
maximum pulse frequency is 30 Hz.
Pulse current
10 A ... 300 A, step 1 A These values depend also on other pulse
parameters. Maximum pulse current is
also limited by the machine spe-
cifications.
Pulse ratio
10 % ... 70 %, step 1 %
Pulse base current
10 % ... 70 %, step 1 %
Adjusting one pulse parameter value has an effect on the other values as well.
"Welding processes and features" on page62
