MasterTig 535ACDC
Operating manual - EN
1.1 Equipment description
Kemppi MasterTig 535 AC/DC welding equipment is designed for professional industrial use, with characteristics espe-
cially suitable for welding materials like aluminum and stainless steel. The multipurpose MasterTig power source is suit-
able for MMA welding, TIG welding and pulsed TIG welding with both direct current (DC) and alternating current (AC).
Power source model:
• MasterTig 535ACDC GM, multi-voltage and generator compatible (500 A AC/DC) *
* A dedicated VRD(Voltage Reduction Device)model version, where the VRD function is locked on, is also available.
Control panel:
• MTP35X control panel (AC/DC, 7" TFT LCD display panel).

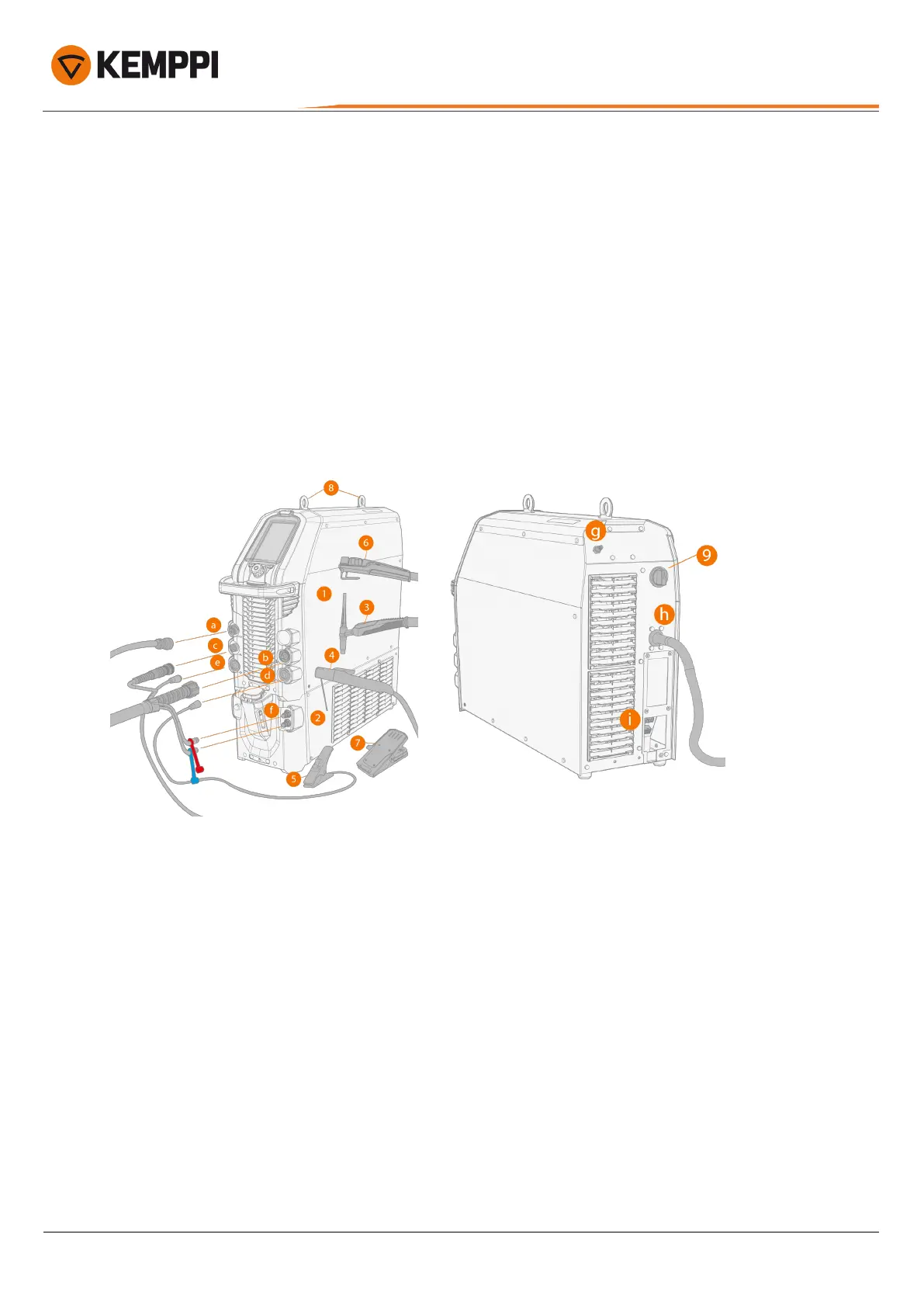

Equipment:
1. MasterTig 535 power source
2. MasterTig Cooler MXL (optional)
3. TIG torch
4. Electrode holder
5. Earth return cable and clamp
6. Remote control (wired or wireless)
7. Foot pedal remote control (wired or wireless)
8. Lifting eyes
9. Power ON/OFFswitch.
Connections:
a. External remote control connector
b. TIG welding cable connector (connection type R1/4)
c. Control cable connector
d. DIX connector (-)
e. DIX connector (+)
f. Coolant liquid inlet and outlet (color-coded)
g. Gas hose connection
